Feature:

Maximum performance for the integrated smart factory

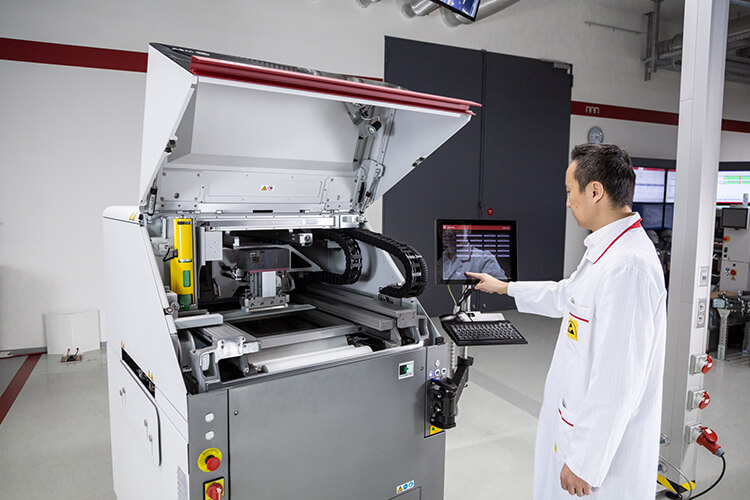

The DEK TQ marks the next generation of stencil printers. Newly designed from the ground up, this new generation of DEK printers is faster, more precise, more powerful with extremely low maintenance and high production uptime, and easy to integrate into your assembly line. New linear drives, off-belt printing and innovative clamping system ensure a new level of accuracy and deliver a stable printing process – even for the latest 0201 metric components. In the new DEK TQ, precision and speed are inseparable to meet your future requirements. A new 3-stage transport and the unique ASM NuMotion controller with fiberoptic based communication reduce the cycle time to 5 seconds and deliver high-precision performance in the smallest possible footprint.

DEK TQ Innovations

Newly developed Under Stencil Cleaner

Extra-large fabric roll, easily replaceable cleaning body, new dispenser system for the cleaning media, independent linear driven axis and non-stop cleaning fluids supply

Innovative printhead

Integrated paste height controller, fully automated paste dispenser and new improved squeegee pressure controller

New 3-stage transport system

Flexible 3-stage board conveyor system with linear drives, ASM NuMotion controller, new clamping system and off-belt printing

These innovations give you competitive advantages:

Maximum throughput

Core cycle time: 5 seconds

Maximum precision and printing quality

Best solder paste printing for the latest generation of extra-small components like 0201 metric

System alignment capability up to ± 12.5 µm @ 2 Cmk

Wet print accuracy up to ±17.5 µm @ 2 Cpk (measured and certified by the external AVS system before delivery of each DEK TQ)

Fast and flexible 3-stage transport

Fully flexible 3-stage transport system with innovative clamping and off-belt printing for fast, precise and stable print process

Up to 8 hours without assist

New USC with extra-large fabric roll and cleaning fluid supply, new printhead with new paste management system

Open, easy to integrate

IPC-Hermes-9852, closed-loop to SPI, ASM OIB, IPC CFX

Efficient programming

Fully new intuitive software and offline ASM Printer Programming

Best floorspace performance

Only 1.3 square meter footprint

Back-to-back setup

The perfect solution for dual-lane lines

Specification:

Machine type	DEK TQ
Standard configuration	Specifications
Machine alignment capability	> 2,0 Cmk @ ±12,5 μm, (±6 sigma)
Wet print capability	> 2,0 Cpk @ ±17,5 μm, (±6 sigma)
Core cycle time	5 secs
Maximum print area	400 mm (X) × 400 mm (Y) (single-stage mode)
Machine control	NuMotion control System
Camera positioning	Linear motors and high-precision encoders
Squeegee pressure mechanism	Software-controlled, motorised with closed-loop feedback
Stencil positioning	Automatic loading incorporating squeegee drip tray
Substrate size (min.)	50 mm (X) × 40,5 mm (Y)
Substrate size (max.)	250 mm (X) × 400 mm (Y) (3-stage mode)
	400 mm (X) × 400 mm (Y) (single-stage mode)
	400 mm (X) × 400 mm (Y) (3-stage with optional transport extensions)
Approximate dimensions	1,300 mm (L) × 1,000 mm (W) × 1,600 mm (H)
