Feature:

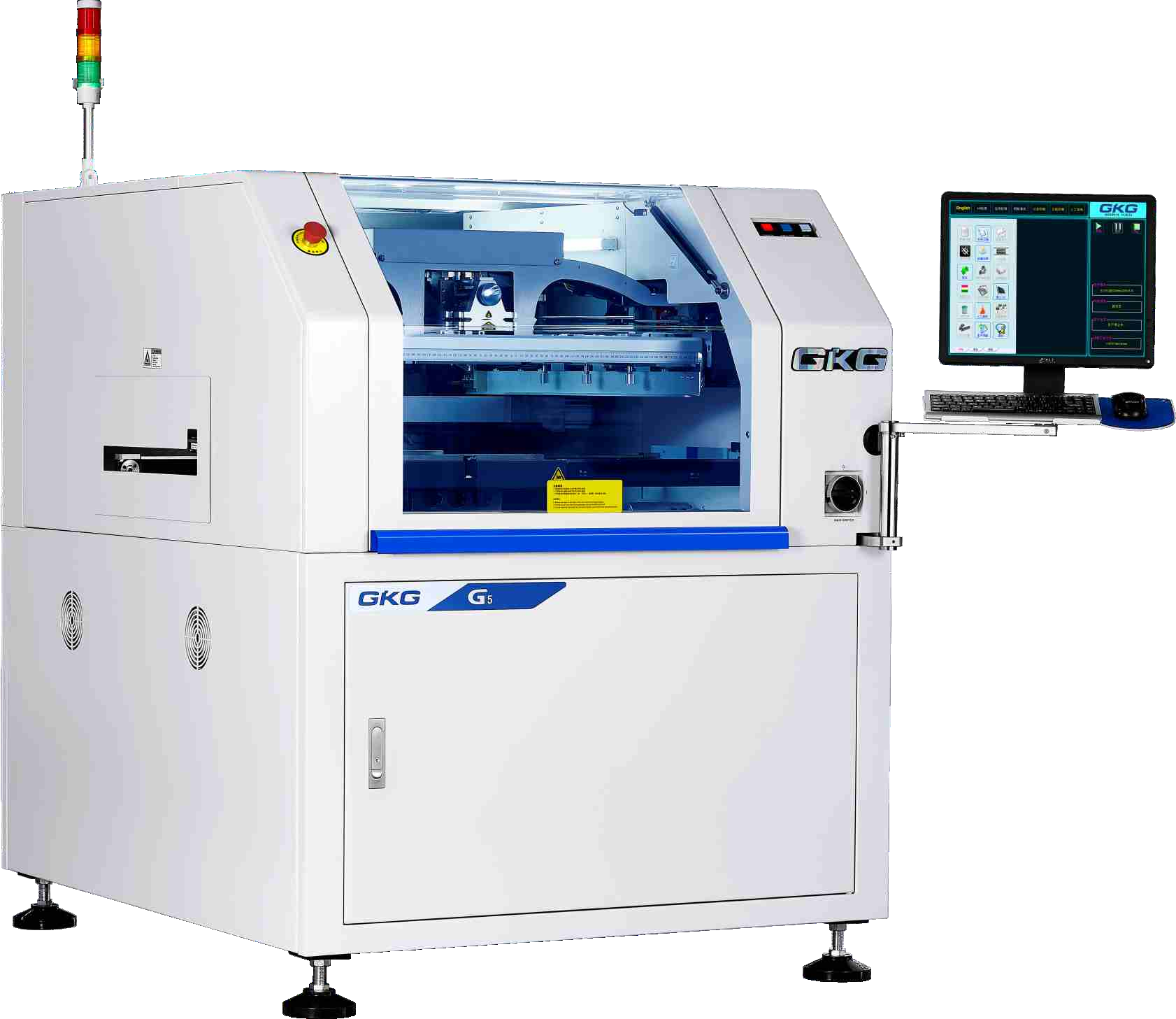

G5 is a high-precision and high-stability fully automatic visual printing machine, high-resolution visual processing, high-precision transmission system, suspended automatic adaptive scraper, precise board positioning processing and smart screen frame clamping structure, compact structure , both accuracy and high flexibility, precise printing required functions.

1. GKG dedicated manual adjustment pre-lift platform: simple and reliable structure, low cost, convenient manual adjustment, can quickly realize the adjustment of the PIN pin jacking height of PCB boards with different thicknesses.
2. Image and optical path system: The uniform ring light and high-brightness coaxial light of the brand-new optical path system, together with the brightness function that can be adjusted steplessly, make all types of Mark points can be well recognized (including uneven ones) Mark point), suitable for tin-plated, copper-plated, gold-plated, HASL, FPC and other types of PCBs of different colors.
3. Scraper system: Slide rail type scraper system, which improves the running stability and long service life.
4. Cleaning system: The new type of wiping rubber strip ensures full contact with the stencil, increases the vacuum suction to ensure that the residual solder paste in the mesh is vigorously eliminated, and truly realizes the effective automatic cleaning function, three cleaning modes of dry and wet vacuum , the software can set the cleaning mode and cleaning paper length at will.

Image:

Specification:

Item		Parameter
Repeat Position Accuracy		±0.01mm(Test data and method are available)
Printing Accuracy		±0.025mm(Test data and method are available)
Printing Speed / Cycle Time		<8s (Exclude Printing & Cleaning)
Products Changeover		<5Min
Screen Stencil Size/Min-Max		737mm X737mm
Screen Stencil Size/Thickness		20mm ~ 40mm
PCB Size/Min-Max/Thickness		50X50mm-400X370mm/0.4~6mm
PCB Warpage Ratio		＜1%（Based on diagonal length）
Bottom of Board Size		15mm（Standard configuration）, 25mm
Edge of Board Size		3mm
Conveyor Height		900±40mm
Conveyor Direction		Left-Right; Right-Left; Left-Left; Right-Right
Conveyor Speed		100-1500mm/sec Programmable control
Board Positioning	Support System	Magnetic pin/Side support block/Flexible automatic pin（optional）
	Clamping System	Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting
Print head		Two indepandent Motorised printheads
Squeegee Speed		6~300mm/sec
Squeegee Pressure		0-10kg software control（closed-loop pressure feedback）, pressure value visible
Squeegee Angle		60°(Standard )/55°/45°
Squeegee Type		Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.
Steel Mesh Separation Speed		0.1~20mm/sec Programmable Control
Cleaning Method		Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods）
Table Adjustment Range		X:±3mm; Y:±7mm θ:±2°
Type of Fiducial Point		Standard geometry shape of fiducial point, bonding pad / Stencil hole
Camera System		Single digital camera for upward/downward vision system
Air Pressure		4~6Kg/cm2
Air Consumption		Approx 0.07m3 /min
Control Method		PC Control
Power Supply		AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions/Weight		Depends on exactly model
Operation Temperature		-20°C ~ +45°C
Operation Humidity		30%~60%
