Feature:

Benchmark for accuracy

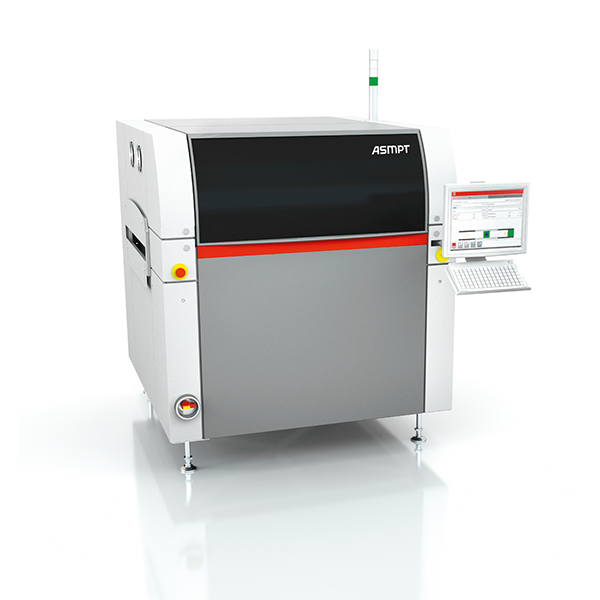

The DEK NeoHorizon iX platform is based on an exceptionally stable frame design. With its torsional rigidity and high intrinsic resonance frequency, the machine‘s frame provides the foundation for longevity and long-lasting accuracy. With its advanced controllers and bus systems, the DEK NeoHorizon iX achieves a process repeat accuracy of up to ±20 μm @ 2 CpK based on the external AVS measurement system. Each printer is certified and ships with an AVS certificate. The frame provides lots of space and the bus system a wide range of interfaces for basic components like precision drives, digital camera modules and high-precision guides and slides, as well as for many productivity-enhancing options: the DEK Productivity Tools. In short, it is the perfect framework for your individual printing solution.

State-of-the-art software: Instinctiv DEK V9 Software

Experience how intuitive modern machine interfaces can be with Instinctiv DEK V9 Software. With its touchscreen, keyboard and trackball operation, graphical interfaces, multiple languages and integrated video-based help, the Instinctiv DEK V9 Software supports the easy, quick and error-free operation of your DEK NeoHorizon iX printer. Do you want to add more options to your DEK NeoHorizon? With ISCAN (Intelligent Scalable Area Network), the new configuration is scanned with just a few clicks and additional performance is available. And thanks to its interfaces, the DEK NeoHorizon can fine-tune its printing process based on data imported from modern SPI systems.

Service and solid process expertise

Stencil printing is a critical and highly demanding process that requires experienced partners in addition to good hardware and software. With ASMPT you have competent experts at your side for selecting and implementing your printing solution, training your employees, optimizing your processes, producing highquality stencils, and supporting all of this with excellent services. Complex PCBs also require thoroughly coordinated processes. Our C State-of-the-art software: Instinctiv DEK V9 Software Experience how intuitive modern machine interfaces can be with Instinctiv DEK V9 Software. With its touchscreen, keyboard and trackball operation, graphical interfaces, multiple languages and integrated video-based help, the Instinctiv DEK V9 Software supports the easy, quick and error-free operation of your DEK NeoHorizon iX printer. Do you want to add more options to your DEK NeoHorizon? With ISCAN (Intelligent Scalable Area Network), the new configuration is scanned with just a few clicks and additional performance is available. And thanks to its interfaces, the DEK NeoHorizon can fine-tune its printing process based on data imported from modern SPI systems. Service and solid process expertise Stencil printing is a critical and highly demanding process that requires experienced partners in addition to good hardware and software. With ASMPT you have competent experts at your side for selecting and implementing your printing solution, training your employees, optimizing your processes, producing highquality stencils, and supporting all of this with excellent services. Complex PCBs also require thoroughly coordinated processes. Our C

Image:

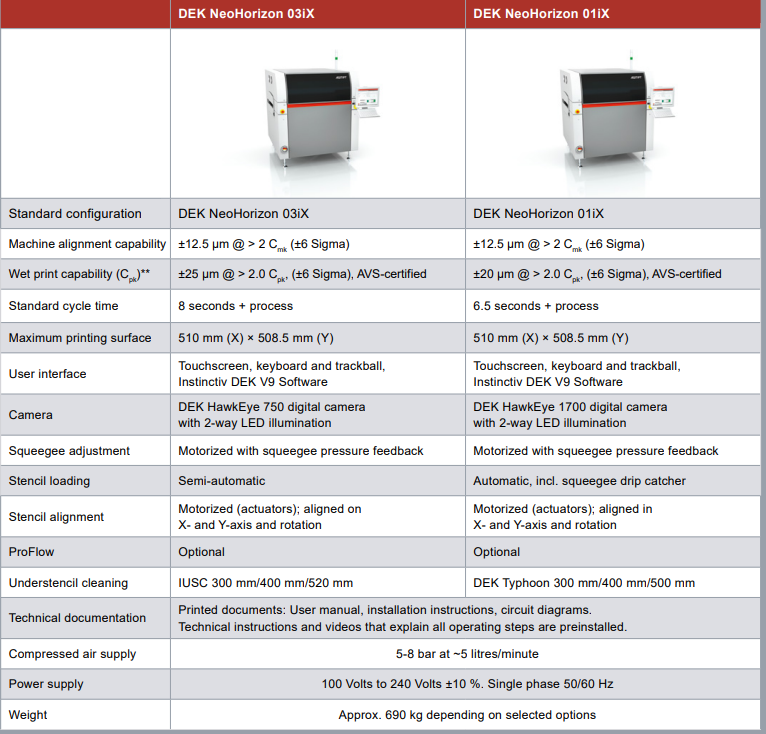

Specification:
