Specification:

Machine Performance
Repeat position accuracy	±0.015mm
Print accuracy	±0.03mm
NCP-CT (Does not include cleaning and printing)	<12 sec
Process CT	6min
Change line CT	4min
Substrate processing parameter
Max. board size	1500*350mm
Min. board size	80*50mm
Board thickness	0.8~6mm
Camera mechanical range	1500*350mm
Max board weight	10kg
board edge clearance	3.5mm
Board height	15mm pin
Transport speed	900±40mm
(Max) transport speed	1500mm/s (Max)
Transmission direction	Left to right
	right to left
	in and out the same
Support system	Magnetic pin
	Support block
	Manual up-down table
Board damp	Manual the top damping
	Side clamping
Printing parameters
Print speed	10~200mm
Print pressure	0.5~15kg
Print mode	One/twice
Gueegee type	Rubber/squeegee Blade (angle 45/55/60)
Snap-off	0~20mm
Snap speed	0~20mm/sec
The template frame size	720*300mm~1800*750mm
Positioning mode of steel mesh	Manual
Cleaning parameters
Cleaning way	Dry, Wet vacuum
High speed cleaning	Weave cleaning
Cleaning system	Top drip
Cleaning stroke	Automatic generation
Cleaning position	Right side cleaning
Cleaning speed	10-200/sec
Cleaning fluid consumption	Auto/Manually adjustable
Cleaning paper consumption	Auto/Manually adjustable
Vision parameters
CCD FOV	10*8mm
Camera type	130 Thousand CCD digital camera
Camera system	Lock up/down optics structure
Camera cycle time	300ms
Fiducial mark types	Standard fiducial mark shape
	Round, square, diamond, cross
	Pad and profile.
Mark size	0.5-6mm
Mark number	Max:4pcs
Stay away number	Max. 1pc
Machine parameter
Power source	AC:220 ±10%, 50/60HZ 2.2KW
Air pressure	4~6Kgf/cm²
Air consumption	~5L/min
Operating temperature	-20°c~+45°c
Working invirironment humidity	30%-60%
Machine dimension (without tower)	2570(L)*1210(W)*1509(H)mm
Machine weight	~1500kg
Equipmentoadbearingrequirements	650kg/m²

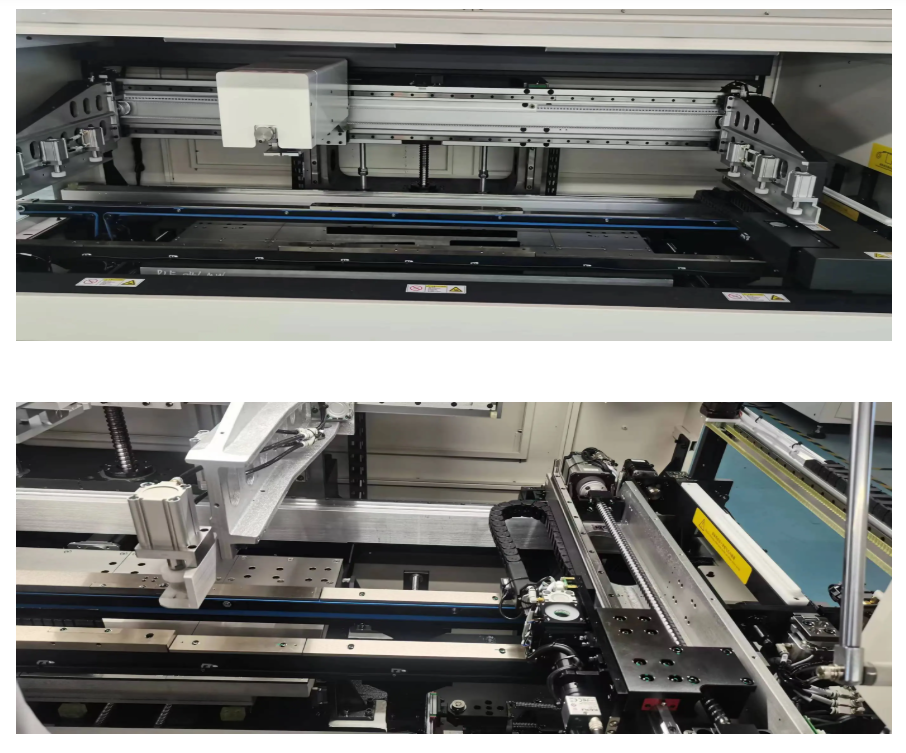

Image:
