Feature:

GSK main intelligent configuration:
1. The standard version of the MES system can customize the output of Industry 4.0 solutions, which can record SOP and equipment open data and upload them
2. Temperature and humidity detection Real-time detection of temperature and humidity inside the device, which can be closed-loop controlled with the air conditioner
3. Panchao system camera scan code, compatible size: 3-3-7-7mm
4. SPI connection, automatic compensation for deviation and automatic cleaning of stencil for powder measurement and less tin
5. Safety control door opening machine, abnormal alarm
6. The authority setting can be set freely, and the authority division can be set for operators, technicians and engineers
7. Smart UI new interface, shortcut key operation
8. The electrical layout of BTB is at the front, and the equipment is combined into one to increase production capacity
9. Two sets of HTH equipment are used to print dramas together to increase production capacity
10. 2D inspection Detect less tin/missing printing/continuous tin

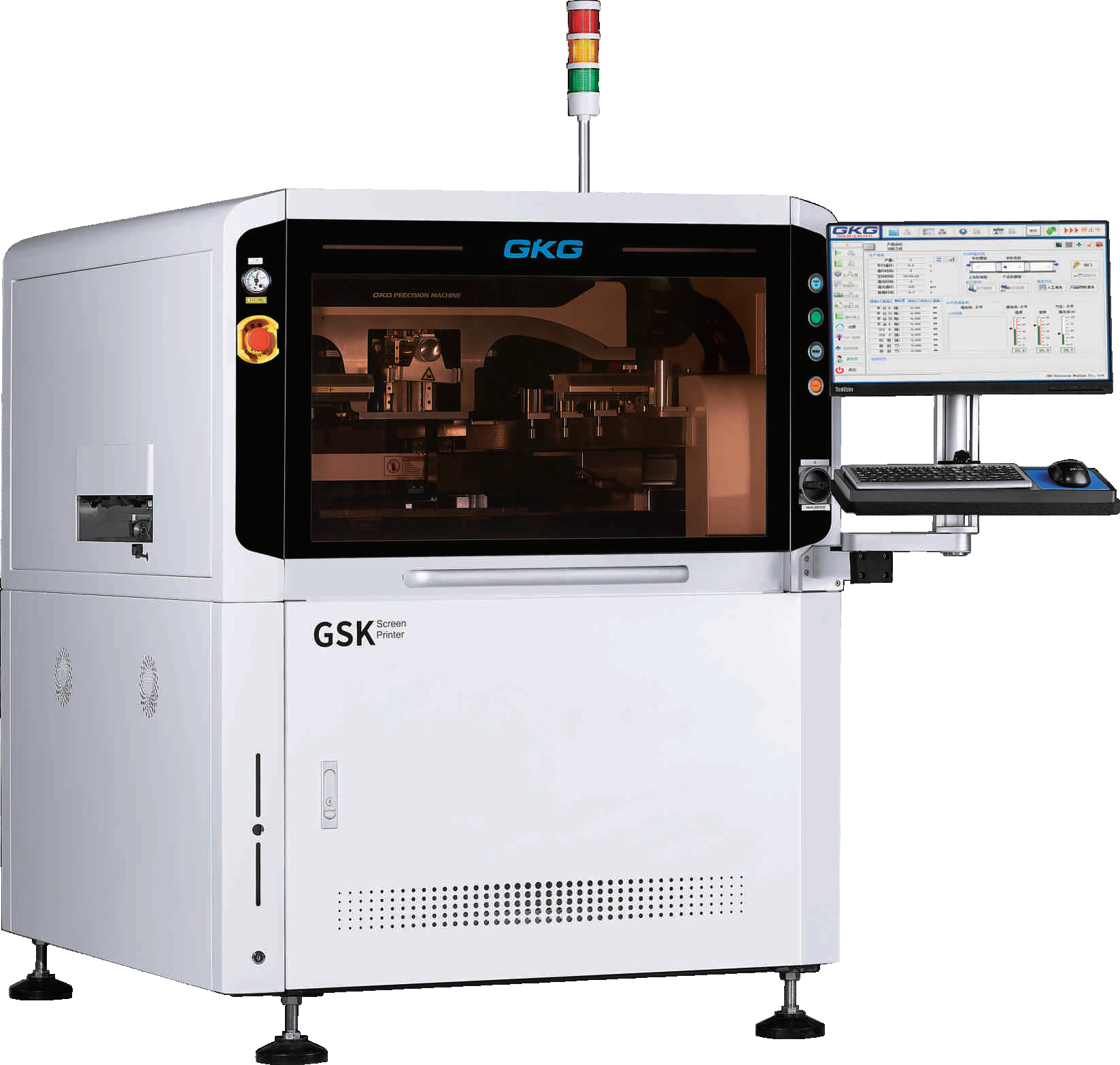

Image:

Specification:

Machine performance
Repeat position accuracy	±12.5um@6 σ , CPK≥2.0
Print accuracy	±22um@6 σ , CPK≥2.0
NCP-CT	7s
HCP-CT	18s/pcs
Process CT	4min
Change line CT	2min
Sudstrate processing parameter
Max board size	400*340mm (Option:530*340mm)
Min board size	50*50mm
Board thickness	0.4~6mm
Camera mechanical range	528*340mm
Max board weight	4kg
Board adge clearance	2.5mm
Board height	15mm
Transport speed	900±40mm
(Max) Transport speed	1500mm/s max
Transport direction	One stage
Transmission direction	Left to right
	Right to left
	In and out the same
Support system	Magnetic pin
	Support block
	Manual up-down table
Board damp	Automatic the top clamping
	Side clamping
Printing parameters
Print speed	10-200mm/s
Printing pressure	0.5~10kg
Print mode	One/twice
Queegee type	Rubber, squeegee blade (angle 45/55/60)
Snap- off	0-20mm
Sanp speed	0-20mm/s
The template frame size	470*370mm-737*737mm (thickness 20-40mm)
Positioning mode of steel mesh	Automatic Y-direction positioning
Cleaning parameteres
Cleaning method	Dry, wet, vaccum, three modes
Cleaning system	Side drip type
Cleaning stroke	Automatic generation
Cleaning position	Post cleaning
Cleaning speed	10-200mm/s
Cleaning fluid consumption	Auto/Manually adjustable
Cleaning pater consumption	Auto/Manually adjustable
Vision parameters
CCD FOV	10*8mm
Camera type	130 thousand CCD digital camera
Camera system	Lock up/down optic structure
Camera cycle time	150ms
Fiducial mark types	Standard fiducial mark shape
	Round, square, diamond, cross
	Pad and profile
Mark size	0.1-6mm
Mark number	Max. 4pcs
Stay away number	Max. 1pc
Machine parameter
Power source	AC 220 ±10%, 50/60Hz 2.2KW
Air pressure	4~6kgf/cm²
Air consumption	~5L/min
Operating temperature	-20°C~+45°C
Working invironment humidity	30%-60%
Machine dimension (without flower light)	1380(L)*1150(W)*1460(H)mm
Machine weight	Appr 900kg
Equipment load bearing requirements	650kg/m²
