Feature:

Key features:

1:Features include spot welding, drag welding, and automatic cleaning.

2:It also offers functions such as position calibration, duplication, arraying, and automatic positioning.

3:The machine is easy to operate and quick to use. Multiple parameters can be set during the welding process to ensure welding quality.

4:The interface is simple and user-friendly.

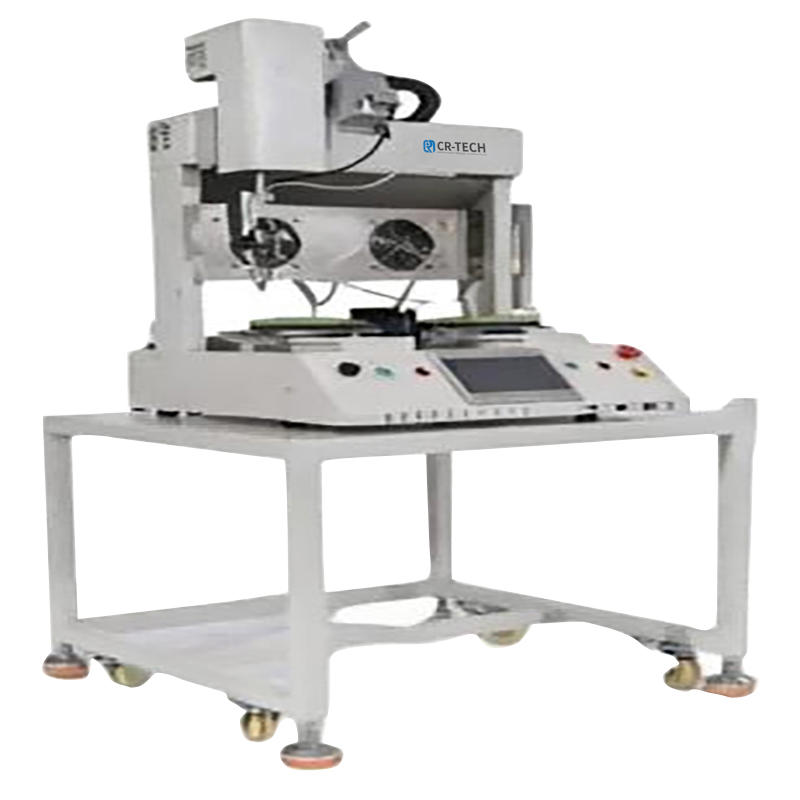

Image:

Specificaiton:

型号Model	CR-Tech 600S
机器尺寸Outline size	600mm*550mm*740mm(L*W*H)
有效行程Effective travel	210mm*350mm*100mm(X*Y*Z)
运动轴Motion axis	6轴 6-Axis
定位精度Position accuracy	±0.02mm
控制系统Control system	PLC+7寸超大触摸屏控制PLC+ 7-inch large touch screen control
送锡方式Feeding solder wire	可编辑多段式送锡方式Editable multi-segment tin delivery method
温控系统Temp-control system	脉冲式高频涡流恒温加热Pulsed high-frequency eddy current constant temperature heating
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.5MPa
程序储存量Memory size	256组，400点/组256 groups, 400 points per group
通讯口COM	USB
总功率Power	0.5KW
