Feature:

Main functions:

1:Features include spot welding, drag welding, and automatic cleaning.

2:It also offers functions such as position calibration, duplication, arraying, and automatic positioning.

3:The machine is easy and quick to operate, with multi-parameter settings for the welding process to fully ensure welding quality.

4:The interface is simple and user-friendly.

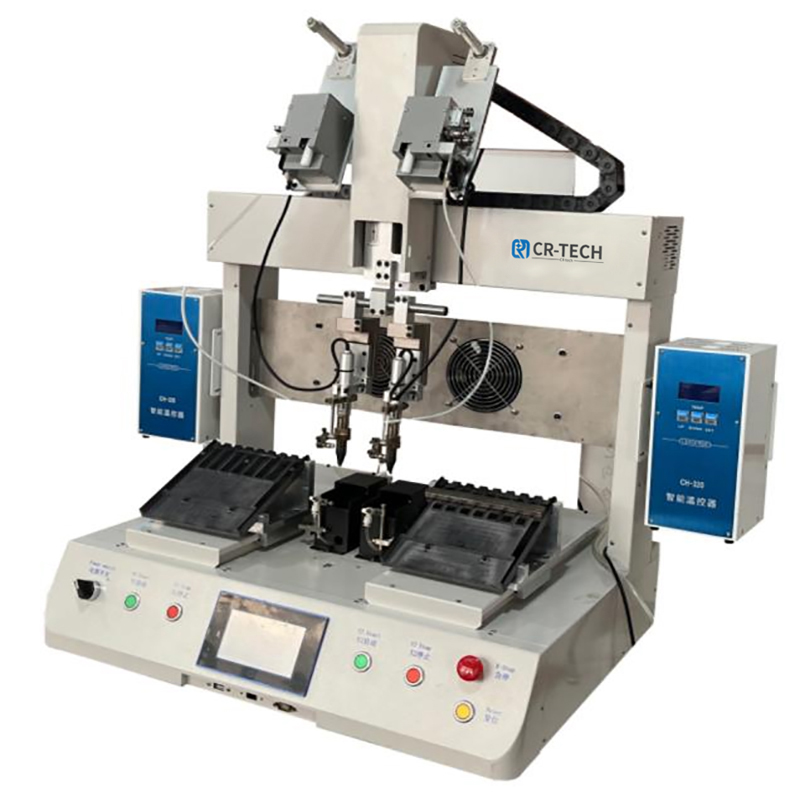

Image:

Specification:

型号 Model	CR-Tech 700S
机器尺寸Outline size	700mm*550mm*740mm（L*W*H）
有效行程Effective travel	250mm*300mm*100mm(X*Y*Z)
运动轴Motion axis	6 axle
定位精度Position accuracy	±0.02mm
控制系统Control system	PLC+7inch Super large touch screen control
送锡方式Feeding solder wire	Editable multi-segment tin delivery method
温控系统Temp-control system	Pulsed high-frequency eddy current constant temperature heating
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.5MPa
程序储存量Memory size	256group,400spot/group
通讯口COM	USB
总功率Power	0.5KW
