1.Number of heating zones: Up 6/Bottom 6
2.The heating length is 2500mm.
3.Computer and PLC control.
Feature:
1. Control system: Computer PLC control system, good stability and compatibility, reliability, and improve the anti-interference of the whole system, make the system run well.
2. Heating system: New energy-saving furnace design, four sides return air, the best temperature uniformity. 6 heating zones, 12 heating modules (up 6/bottom 6), independent temperature control and switch, best heat preservation performance, substrate lateral temperature deviation: ±2℃.3. Transmission speed: frequency converter speed adjustment 0.35M-1M/Min, precision ± 2mm/min
4. Axial flow fan forced air cooling (up 1/bottom 1 cooling zones)
5. Protection system: temperature over-tolerance alarm, transmission speed over-tolerance alarm, built-in computer and transmission UPS, delayed shutdown function.

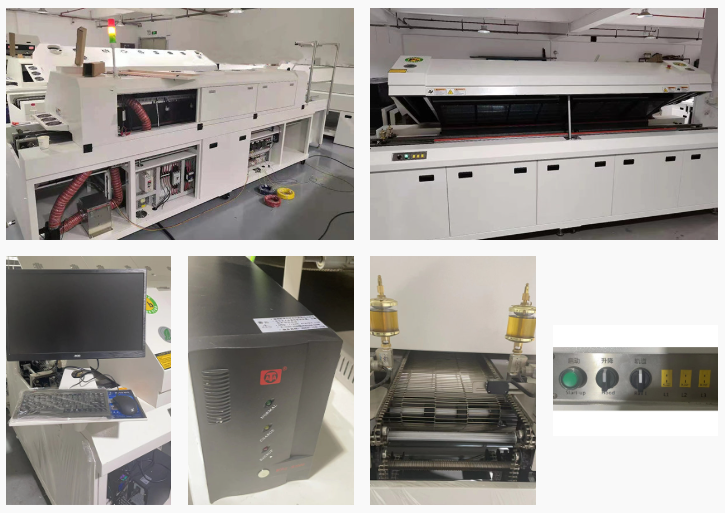

Image:
Specification:
CR-tech 6010
Model
Heating System
Number of heating zones
UP 6/BOTTOM 6
Number of cooling zones
Up 1/BOTTOM 1
Length of heating zones
2500MM
Heating mode
hot air
Cooling Mode
Force air
Conveyor System
Max. Width of PCB
300mm
Mesh belt width
400mm
Transmission Direction
L→R(or R→L)
Transmission Net Height
880±20mm
Transmission type
Mesh and chain
Range of rail width
0-300mm
Conveyor speed
0-1500mm/min
The component height
Top 35mm ,bottom 25mm
Auto/manual Lubrication
standard
Upper hood method
Auto electric hood
Fixed rail side
Front rail fixed(option: rear rail fixed)
Components high
Top and bottom 25mm
Control system
Power supply
5line 3phase 380V 50/60Hz
Starting power
18kw
Normal power consumption
4-7KW
Warming time
About 20 mins
Temp. setting range
Room temperature-300℃
Temp. control method
PLC & PC
Temp. control precision
±1℃
Temp. deviation on PCB
±2℃
Data storage
Process Data and status storage(80GB)
Nozzle plate
Aluminum Alloy Plate
Abnormal Alarm
Abnormal temperature. (extra-high/extra-low temp.)
Board dropped alarm
Tower light: Yellow-warming, Green-normal, Red-abnormal
General
Dimension(L*W*H)
3600×1100×1490mm
Weight
900KG
Color
Computer gray
