Feature:

1. Brand LCD computer + PLC intelligent control system is adopted, with a high temperature control accuracy of ±1°C (if the computer crashes unexpectedly, offline work can be realized without affecting production), ensuring the stability and reliability of the control system;

2. Windows7 operation interface, powerful and easy to operate;

3. The opening of the upper furnace body adopts double electric jacking machinery to ensure safety and reliability;

4. Equipped with mesh belt tensioning device, the transportation is stable, no shaking, no deformation, ensuring smooth transportation of PCB;

5. Synchronous guide rail transmission mechanism (can be connected online with the automatic placement machine) to ensure accurate guide rail width adjustment and high service life; (optional guide rail)

6. Automatically control the lubrication system, which can automatically lubricate the transmission chain by setting the refueling time and refueling amount;

7. All heating zones are PID controlled by computer (the temperature zones can be opened separately. The heating can be divided into zones to reduce the starting power);

8. The network/chain transmission is fully closed-loop controlled by the computer, which can meet the simultaneous production of different types of PCBs;

9. With fault sound and light alarm function;

10. Equipped with leakage protector to ensure the safety of operators and control system;

11. Built-in UPS and automatic delay shutdown system to ensure that the PCB and reflow soldering machine will not be damaged when the power is cut off or overheated;

12. Adopt HELLER hot air circulation heating method, high-efficiency pressurized acceleration air duct, greatly increase the flow of circulating hot air, rapid temperature rise (about 10 minutes), high thermal compensation efficiency, and high-temperature welding and curing;

13. The temperature zone is equipped with an independent temperature sensing sensor to monitor and compensate the temperature balance of each temperature zone in real time;

14. The operating system with password management prevents unrelated personnel from changing the process parameters, and the operation record management can trace the change process of the process parameters, which is convenient for improving management. It can store the user's existing temperature speed setting and the temperature curve under the setting, and can change all Print data and curves;

15. Integrated control window, computer switch, test curve, print curve and data transmission are all easy to operate, and the design is humanized. Equipped with a three-channel temperature curve online testing system, which can detect the actual temperature curve of the welding object at any time (no need to configure a temperature curve tester);

16. The rapid cooling system from international technology adopts magnifying glass-type centralized and efficient rapid cooling, the cooling speed can reach 3.5~6°C/sec, and the management is very convenient; the external forced cooling device ensures the crystallization effect of solder joints (Option optional, the standard configuration is forced natural air cooling);

17. Rosin recovery system: Rosin flows in a directional manner, which is very convenient for replacement and cleaning. Special pipelines are used to transmit exhaust gas, which is maintenance-free for life;

18. Special pressurized air transport structure and special-shaped heating wire design, no noise, no vibration, high heat exchange rate, the temperature difference △t between the bottom of the BGA and the PCB board is extremely small, which best meets the strict requirements of the lead-free process , especially for lead-free products with high difficulty soldering requirements.

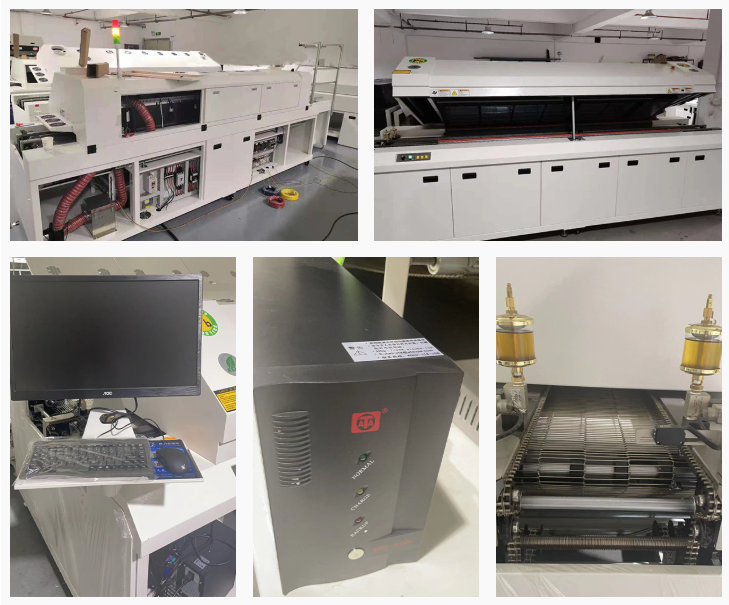

Image:

Specification:

Model	CR-tech 6010
Heating System	Number of heating zones	UP 6/BOTTOM 6
	Number of cooling zones	Up 1/BOTTOM 1
	Length of heating zones	2500MM
	Heating mode	hot air
	Cooling Mode	Force air
Conveyor System	Max. Width of PCB	300mm
	Mesh belt width	400mm
	Transmission Direction	L→R(or R→L)
	Transmission Net Height	880±20mm
	Transmission type	Mesh and chain
	Range of rail width	0-300mm
	Conveyor speed	0-1500mm/min
	The component height	Top 35mm ,bottom 25mm
	Auto/manual Lubrication	standard
	Upper hood method	Auto electric hood
	Fixed rail side	Front rail fixed(option: rear rail fixed)
	Components high	Top and bottom 25mm
Control system	Power supply	5line 3phase 380V 50/60Hz
	Starting power	18kw
	Normal power consumption	4-7KW
	Warming time	About 20 mins
	Temp. setting range	Room temperature-300℃
	Temp. control method	PLC & PC
	Temp. control precision	±1℃
	Temp. deviation on PCB	±2℃
	Data storage	Process Data and status storage(80GB)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temperature. (extra-high/extra-low temp.)
	Board dropped alarm	Tower light: Yellow-warming, Green-normal, Red-abnormal
General	Dimension(L*W*H)	3600×1100×1490mm
	Weight	900KG
	Color	Computer gray
