Image:

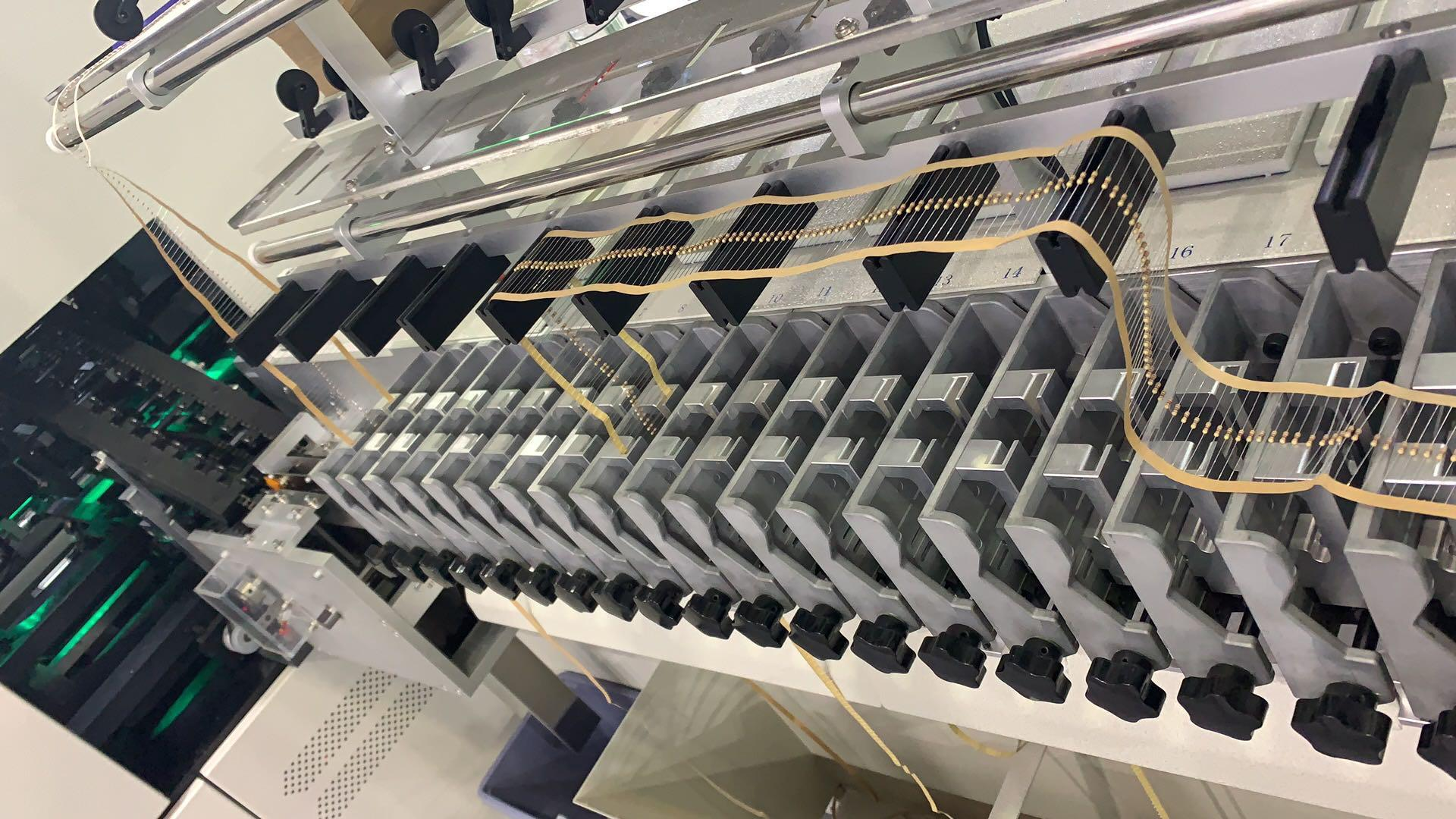

Feeder

Specification:

Model	CR-Tech-A30C
Max Speed	19000CPH
Insert Direction	4 directions: 0°,90°,180°,270°
Alignment System	Passive clamp + CAM alignment
Components Speed	Component 5.0mm～20mm(Jumper 5mm～22mm )
PCB Size	Minimum 50mm*50mm、Maximum 285mm*350mm
PCB Thickness	0.79～2.36mm
Conveyor Height	900mm
Conveyor Width	50mm-285mm(adjustable)
Component Type	Capacitor;transistor;diode;resistance;inductance;fusewire and so on tape packaging materials
Jumper (JW)	Independent transmission mode. Diameter: 0.5mm~.6mm tinned copper wire
Insert Bending Length	1.2-2.2mm(adjustable)
Appearance Size	L1800xD1450xH1500 mm
Feeder Station Size	2000mm× 1000mm× 1500mm
Feeder Capacity	20
Weight	1200kg
Power Supply	220V,AC（Single phase）50/60HZ,1.5KVA;
System Protection	Configure UPS
Power Consumption	1.5KW（Energy-saving type）
Environmental conditions	Ambient temperature 5~25 degrees
Machine noise:	60 decibels
Hole Correction Mode	Machine vision system
Drive system	AC servo AC motor
Delivery Mode	Double chain and double servo drive
Data Input	USB interface input (EXCEL document format)
Control system	Chinese operating interface (WINDOWS system control platform) LCD display
Control Mode	Automatic and semi-automatic
Feeding Mode	Motor feeding board left to right (optional right to left)
Programming Mode	Manual programming
