Feature:
①PLC+touch screen friendly man-machine platform
②Adopting online production method, high efficiency and stable product quality
③Adopting the working design principle of medium and low pressure and large flow, it saves cleaning agent consumption, reduces the use cost of production consumables, and has economical and efficient cleaning capabilities.
④ Integrated design, with high scalability, flexible line assembly, and high cost performance, suitable for customer requirements with different production capacity needs
⑤The body is made of corrosion-resistant SUS304 stainless steel and has a beautiful appearance.
⑥The nozzle adopts quick connector method
⑦The nozzle is made of SUS304 stainless steel, with dense nozzle arrangement, medium and low pressure, uniform flow and large flow rate.
⑧The angle and height of the wind knife are adjustable, and the wind cutting efficiency is high and the noise is low.
⑨Optional chemical proportioning system with quantitative automatic rehydration function
⑩The structure adopts humanistic design, such as fans, filters, etc., are reserved for installation and maintenance, which is convenient for repair and maintenance.

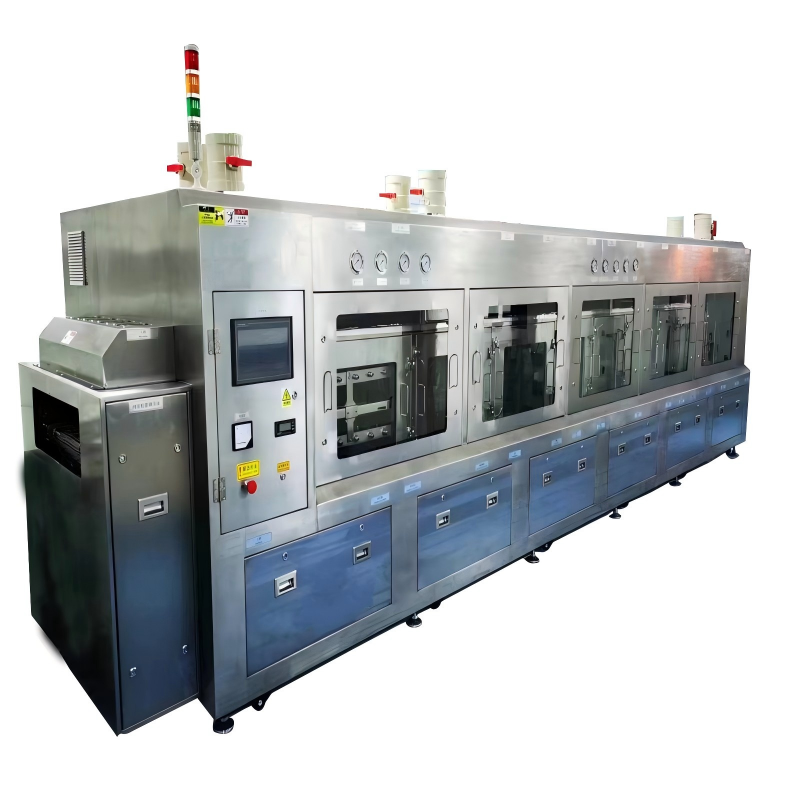

Image:
Specification:
|
Serial number |
Project name |
Technical indicators |
|
1 |
Machine size |
L7000*W1730*H1650mm |
|
2 |
Machine power |
About 125kw |
|
3 |
Use power |
About 65-85KW |
|
4 |
Cleaning product size |
1500mm(L)*550mm(W)*80mm(H) |
|
5 |
Cleaning fluid consumption |
2.0-4L/H |
|
6 |
DI water consumption |
5L-15L/min |
|
7 |
Transport speed |
10mm/min-1500mm/min |
|
8 |
Control method |
Touch screen + PLC control |
|
9 |
Body material |
SUS304 stainless steel |
|
10 |
Mesh belt material |
Stainless steel SUS316 |
|
11 |
Air source requirements |
0.4-0.7（Mpa） |
|
12 |
Power requirements |
3PH, 380 VAC, 5 wires |
|
13 |
Weight |
Approx. 2800kg |
|
14 |
DI Water Quality Requirements |
2-10MΩ (depending on customer's product) |
|
15 |
DI Inlet Water Flow Requirements |
1.0 m³/h |
|
16 |
Exhaust Air Flow Requirements |
1200 CFM |
|
17 |
Noise Level |
< 70 Db |
|
18 |
Chemical Washing Zone Spray Pressure |
0-0.5Mpa |
|
19 |
DI Rinse Zone Spray Pressure |
0-0.5Mpa |
|
20 |
Product Weight |
Less than 10kg |
|
21 |
Chemical Washing Section Water Tank Temperature |
25-75℃ |
|
22 |
Air Knife Angle |
Angle Adjustable, Height Adjustable |
|
23 |
Spray Pipe Installation Method |
Quick Connector Method, Easy Replacement |
|
24 |
Mesh Belt Width |
600mm, Customizable |
|
25 |
Water Pipe Installation Method |
Quick Connector Method, Easy Maintenance |
|
26 |
Filtration Accuracy (Two Stages) |
Minimum 10μm Filter Core |
|
Serial Number |
Item |
Technical Parameters |
|
2.1 |
System Water Production: |
1000kg/h (based on local municipal tap water quality with an influent conductivity of less than 500us/cm) |
|
2.2 |
Required Raw Water Flow Rate: |
>2t/ h, Raw water pressure: 0.3~0.4Mpa |
|
2.3 |
Water recovery rate: |
45-50% (If a pure water system without reverse osmosis is used directly, the recovery rate is >90%) |
|
2.4 |
Product water resistivity: |
2-10M@, cm |
|
2.5 |
Dimensions: |
1300mm*1300mm*1800mm (Length x Width x Height) |
|
2.6 |
Net weight: |
500kg |
|
2.7 |
Power supply: |
380V +10%, 50Hz, 5kW |
