Feature:

Key advantages:

1. Low failure rate, high stability, and universal compatibility with various screw types.

2. Supports two different screw types.

3. Features intelligent detection for issues like lock leakage, floating locks, and thread slippage.

4. Dual-platform design with front and rear distribution for alternating operation, enhancing efficiency.

5. User-friendly operation requiring no professional debugging.

6. Replacement of products only requires fixture replacement and corresponding program activation.

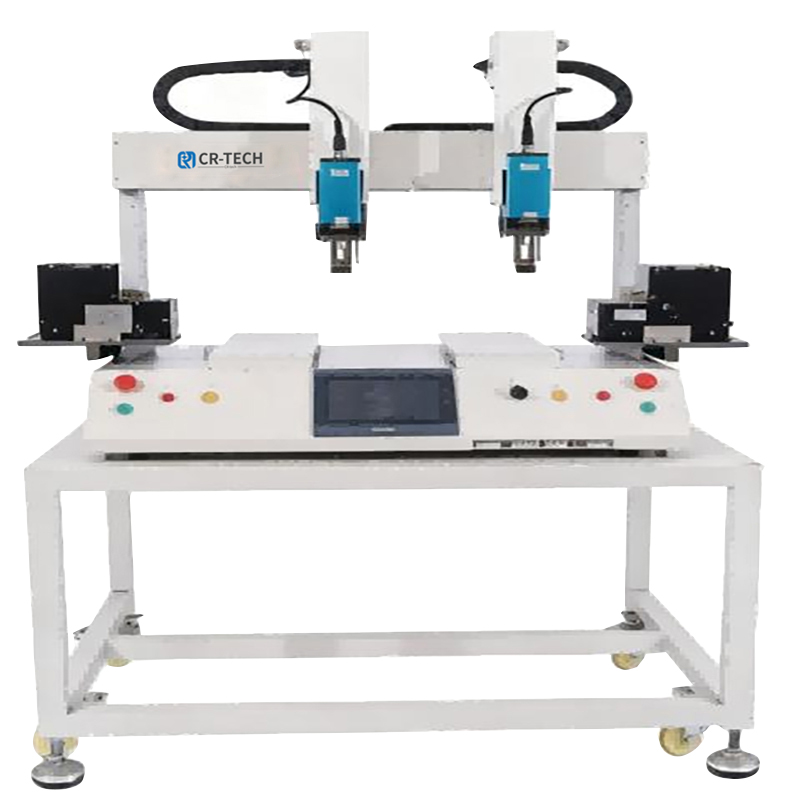

Image:

Specification:

型号Model	CR-Tech 520A
机器尺寸Outline size	850mm*750mm*750mm(L*W*H)
有效行程Effective travel	650mm*450mm*130mm(X*Y*Z)
运动轴Motion axis	6轴 6-Axis
定位精度Position accuracy	±0.02mm
控制系统Control system	PLC+触摸屏控制PLC+ touch screen control
供螺丝方式Feeding model	吸取式 Sunction method
锁付效率Locked efficiency	About 1.2s/Piece
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.7MPa
程序储存量Memory size	100group
通讯口COM	USB
总功率Power	0.65KW
