Feature:
Key advantages:
1. Low failure rate, high stability, and universal compatibility with various screw types;
2. Supports two different screw types;
3. Features intelligent detection for issues like lock leakage, floating locks, and thread slippage;
4. Dual-platform design with front-back distribution and alternating operation for faster efficiency;
5. User-friendly operation requiring no professional debugging;
6. Replacement products only require fixture replacement and corresponding program activation.

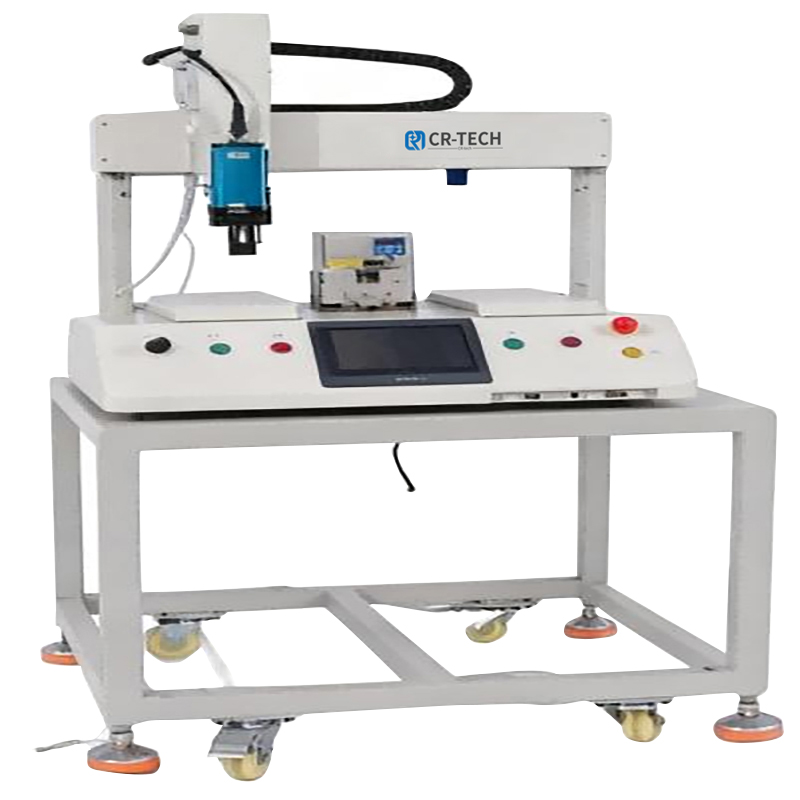

Image:
Specification:
型号Model
CR-Tech 510A
机器尺寸Outline size
720mm*720mm*720mm(L*W*H)
有效行程Effective travel
550mm*450mm*130mm(X*Y*Z)
运动轴Motion axis
4轴 4-Axis
定位精度Position accuracy
±0.02mm
控制系统Control system
PLC+触摸屏控制PLC+ touch screen control
供螺丝方式Feeding model
吸取式 Sunction method
锁付效率Locked efficiency
About 1.2s/Piece
输入电压Power supply
220V/50Hz
输入气压Air pressure
0.4-0.7MPa
程序储存量Memory size
100group
通讯口COM
USB
总功率Power
0.6KW
