Featrue:

Key advantages:

1. Low failure rate, high stability, and universal applicability, requiring no specific screw types.

2. Compatible with two different screw types.

3. Features intelligent detection for issues like lock leakage, floating locks, and thread slippage.

4. Dual-platform design with front-back distribution and alternating operation for faster efficiency.

5. User-friendly operation, eliminating the need for professional debugging.

6. Replacement product only requires fixture replacement and corresponding program activation.

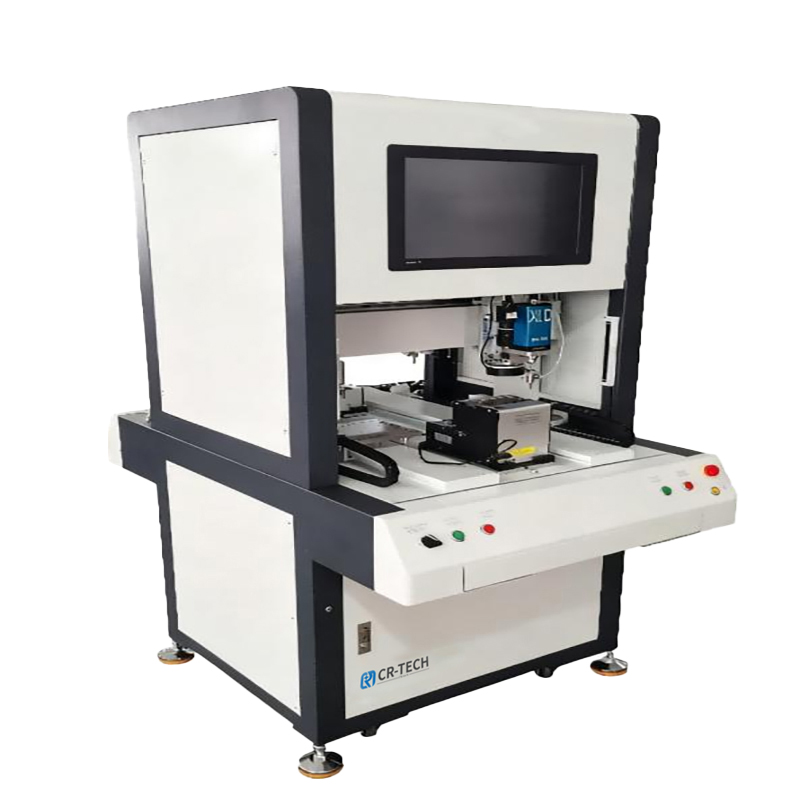

Image:

Specification:

型号Model	CR-Tech 550A
机器尺寸Outline size	1180mm*760mm*1650mm(L*W*H)
有效行程Effective travel	180mm*260mm*70mm(X*Y*Z)
运动轴Motion axis	6轴 6-Axis
定位精度Position accuracy	±0.02mm
控制系统Control system	PC+高精度工业CCD + 高性能运动控制卡PC+ high-precision industrial CCD + high-performance motion control card
电批系统Electric screwdriver system	智能电批，任意设定扭力与转速Intelligent electric screwdriver, with arbitrary setting of torque and speed
供螺丝方式Feeding model	吸取式 Sunction method
编程方式Programm method	CCD坐标示教+CAD坐标导入+教导式CCD coordinate marking teaching +CAD coordinate import + teaching formula
操作界面Operation interface	17寸LCD + 键盘 +鼠标17-inch LCD + keyboard + mouse
锁付效率Locked efficiency	About1.2s/Piece
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.7MPa
程序储存量Memory size	100group
总功率Power	0.6KW
