Feature:

Key advantages:

1. Low failure rate, high stability, and universal compatibility with various screw types;

2. Supports two different screw types;

3. Features intelligent detection for lock leakage, floating locks, and thread slippage;

4. Dual-platform design with front and rear distribution for alternating operation for faster efficiency;

5. User-friendly operation requiring no professional debugging;

6. Replacement product only requires fixture replacement and corresponding program activation.

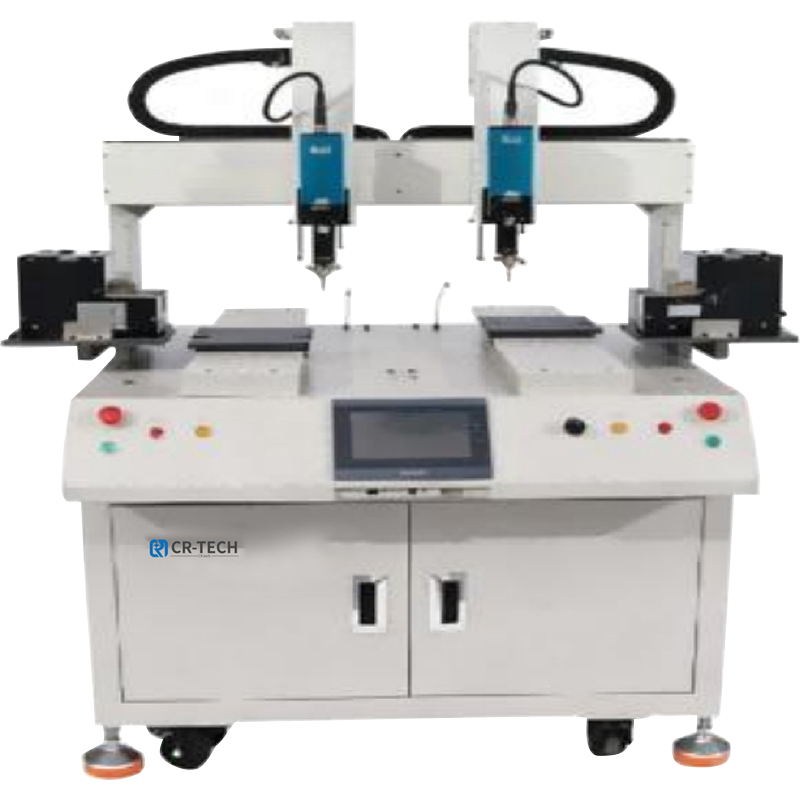

Image:

Specification:

型号Model	CR-Tech 540A
机器尺寸Outline size	850mm*750mm*750mm(L*W*H)
有效行程Effective travel	650mm*450mm*130mm(X*Y*Z)
运动轴Motion axis	6轴 6-Axis
定位精度Position accuracy	±0.02mm
控制系统Control system	PLC+触摸屏控制PLC+ touch screen control
供螺丝方式Feeding model	吸取式 Sunction method
锁付效率Locked efficiency	＜1.2s/Piece
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.7MPa
程序储存量Memory size	100group
通讯口COM	USB
总功率Power	0.65KW
