Feature:

●3 independent control heaters

① top and bottom heaters are hot-air heating, the third IR (preheating area 350x260mm) is infrared heating, temperature accuracy within ±3℃, the top and bottom heaters can setting 6 segments rising temperature and 6 segments activity temperature, can save 50 groups temperature curves for different BGA chips.

② it can heat PCB board and Bga chips at the same time. And the third IR heater can preheat the PCB board from bottom, to avoid PCB from deformation during repair process. The top and bottom heaters heat independently；

③ the power consumption of the third IR heater can be adjusted, make PCB board heating evenly, avoid the PCB from deformation.

④ The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

●Multi-functional hommization system

① Adopt Taiwan human-machine interface, High-precision K-type thermocouple with close-loop control, the temperature shown on the touch screen, top heater can be moved freely; bottom heater can be adjusted up and down.

② Adopted all kinds of BGA nozzles, with 360° rotation, easy for installation and replacement, customized is available;

③ There is BGA soldering support shelf to support PCB board；

④ Multi-functional PCB support shelf, can be moved along X axis,with rapid and easy PCB board positioning , suitable for all kind of PCB position；

⑤ powerful cross-flow fan cool the PCB board fast after desoldering and soldering, it can prevent the PCB board from deformation; with vacuum pump and external vacuum suction pen to pick up the chips conveniently.

●Superior safety functions

With CE certification; after desoldering and soldering, there is alarming. when temperature goes out of control；the circuit will automatically power off, it is of double over-temperature protection function. Temperature parameter has a password to avoid from arbitrary changes, with superior safe protection functions, can protect PCB board components and the machine from damage at any abnormal situation.

●Camera

2 million pixels

Product Classification VGA Camera

Sensor size 1/3 inch

Effective pixels Full HD

Resolution 1920*1080@ 30FPS

Output interface VGA, USB2.0

Pixel size 2.75* 2.75 μm

Power supply DC-12V/1A

Specification:

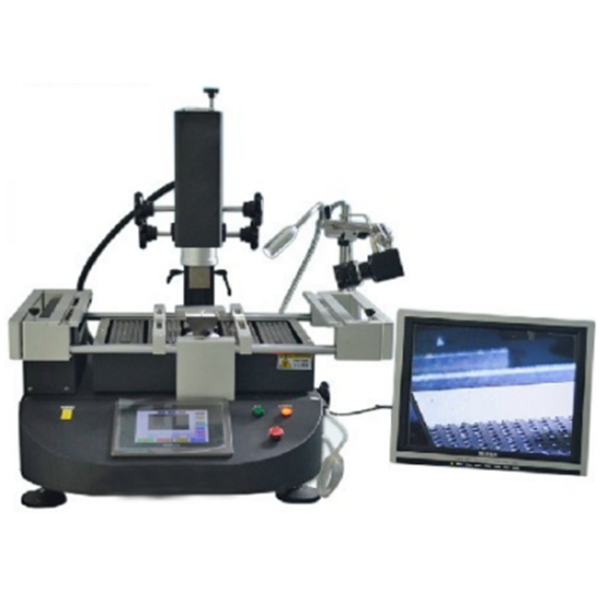

Model	TY-2860C
power	AC220V±10％ 50/60Hz
Total Power	Max 4800 W
Heater power	top heater 800W bottom heater 1200W IR heater 2700W
Electrical materials	Touch screen＋High precision intelligent temperature control module
Temperature control	K-type thermocouple (Closed Loop)
Positioning	V-groove, PCB support
PCB size	Max 410*370 mm Min 20*20 mm
BGA chip	L630*W610*H690 mm
Weight	48kg
