Specification:

* Clean 30 nozzles at a time, short cleaning time and high efficiency.
* Replace traditional manual cleaning, solve the problem of ultrasonic cleaning, and reduce the phenomenon of patch throwing.
* Atomized water flow supersonic jet cleaning, completely solve the dirt and impurities that cannot be cleaned by ultrasonic.
* It will not be cleaned thoroughly due to the smaller and smaller nozzle aperture.

* Clean more thoroughly, directly extend the life of the nozzle, and the cleaning rate is more than 99%.

* Easy to operate, the interface can be switched between Chinese and English.

* Never use cleaning agents, only environmentally friendly pure water or deionized water for cleaning.

* Adopt touch screen control interface, simple and easy to understand. * Applicable to various SMT nozzles, and the cleaning effect is more obvious for cross-shaped, I-shaped, and special-shaped nozzles.

*High-pressure jet technology: A. Fine water mist particles, continuous pressure to break up water, produce 3-10um particle water mist so that it can clean the dirt on the inner wall of the small nozzle aperture.
* Pulse power: B. A powerful pulse power is formed at the speed of sound (V=360m/s) and sprayed onto the nozzle, which can reach 30 pulse frequency per second. A continuous impact force is formed above the nozzle to be cleaned to crush the dirt on the surface and inside to achieve the purpose of cleaning.

* Reduce the purchase cost of the nozzle;

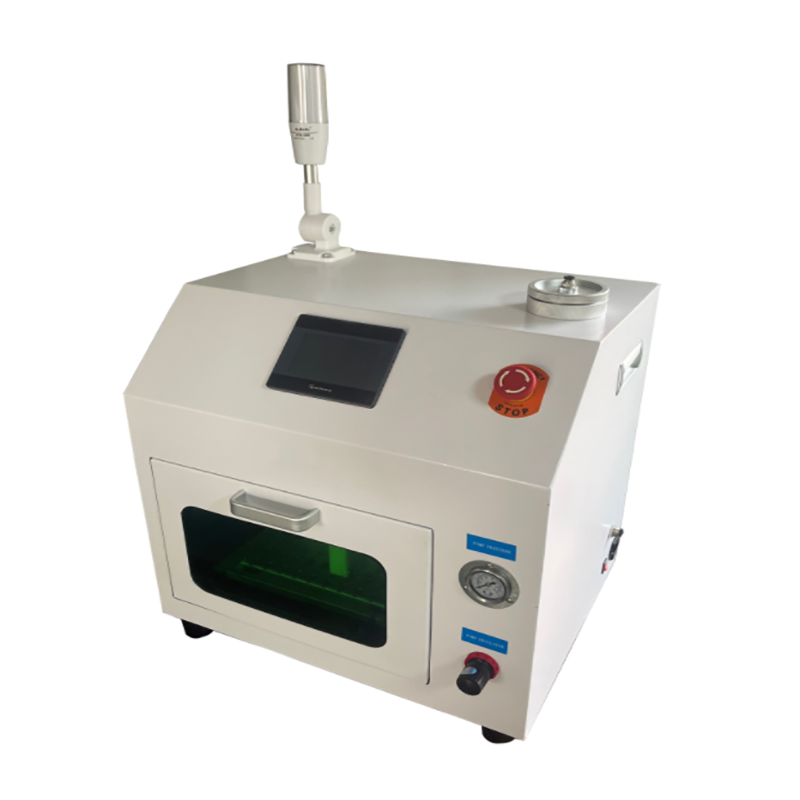

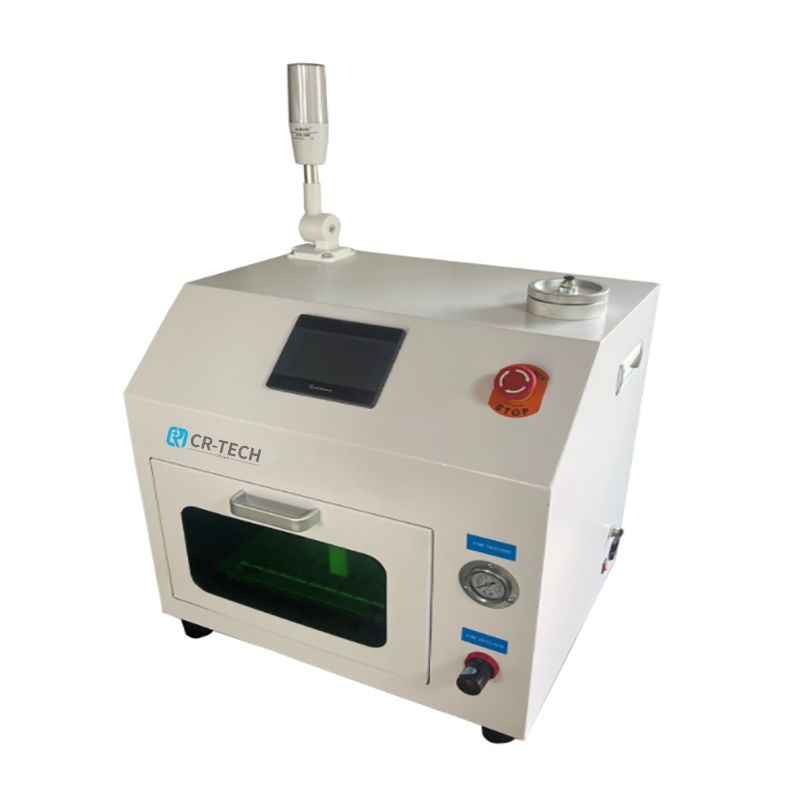

Using the ZN-30 fully automatic cleaning machine can solve the problem of nozzles being scrapped due to being too dirty, thereby extending their service life.

* Reduce unnecessary labor;
Since the machine uses fully automatic cleaning, there is no need for a dedicated person to be responsible, and the entire process is completed automatically by the machine.

*Effectively reduce product defect rate and improve SMT productivity;

In the production process, a large part of the problem is that the nozzle surface is dirty and uneven and the inner cavity is too dirty, which causes material throwing or placement displacement, resulting in poor subsequent welding. After using the cleaning machine, the nozzle can always be kept in a brand new state, greatly improving production efficiency.

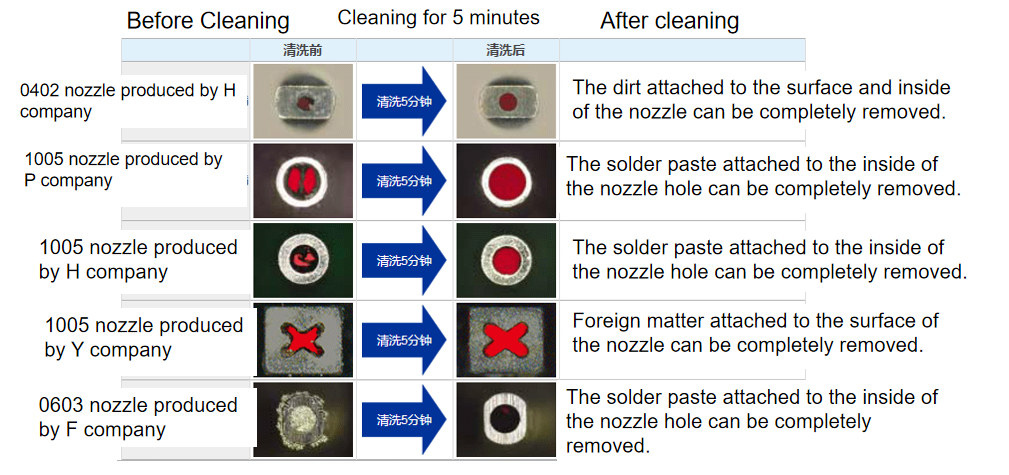

Image:

Specification:

Project	Specifications/parameters	Remark
Equipment size	L× W×H	440×500×530 (mm)
Equipment weight	quality	35KG
Cleaning liquid	Cleaning liquid type	Industrial pure water
	consumption	≤100ml/min
Use fluid	Gas source	Compressed air
	Use pressure range	0.5 - 0.65Mpa (during cleaning)
	Injection pressure	≤0.4Mpa
	Air consumption	500NL/min or less
power supply	Voltage	AC220V 50HZ
	Rated power consumption	Maximum 100W
Nozzle tray	Specification	30

Serial Number	Component Name	Component Brand	Component Origin
1	PLC	Xinjie	China
2	Touch Screen	Wei Lun	Taiwan, China
3	Solenoid Valve	AirTac	Taiwan, China
4	Pressure regulating valve	AirTac	Taiwan, China
5	Motor	Yankong	China
6	Power supply	Meanwell	China
7	Sensor	Omron	Japan
