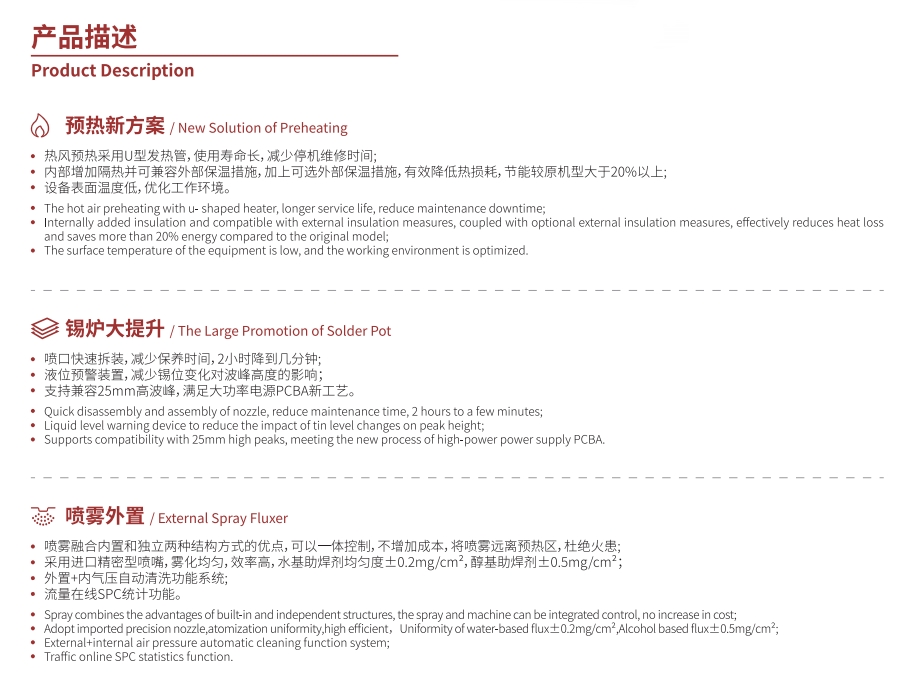

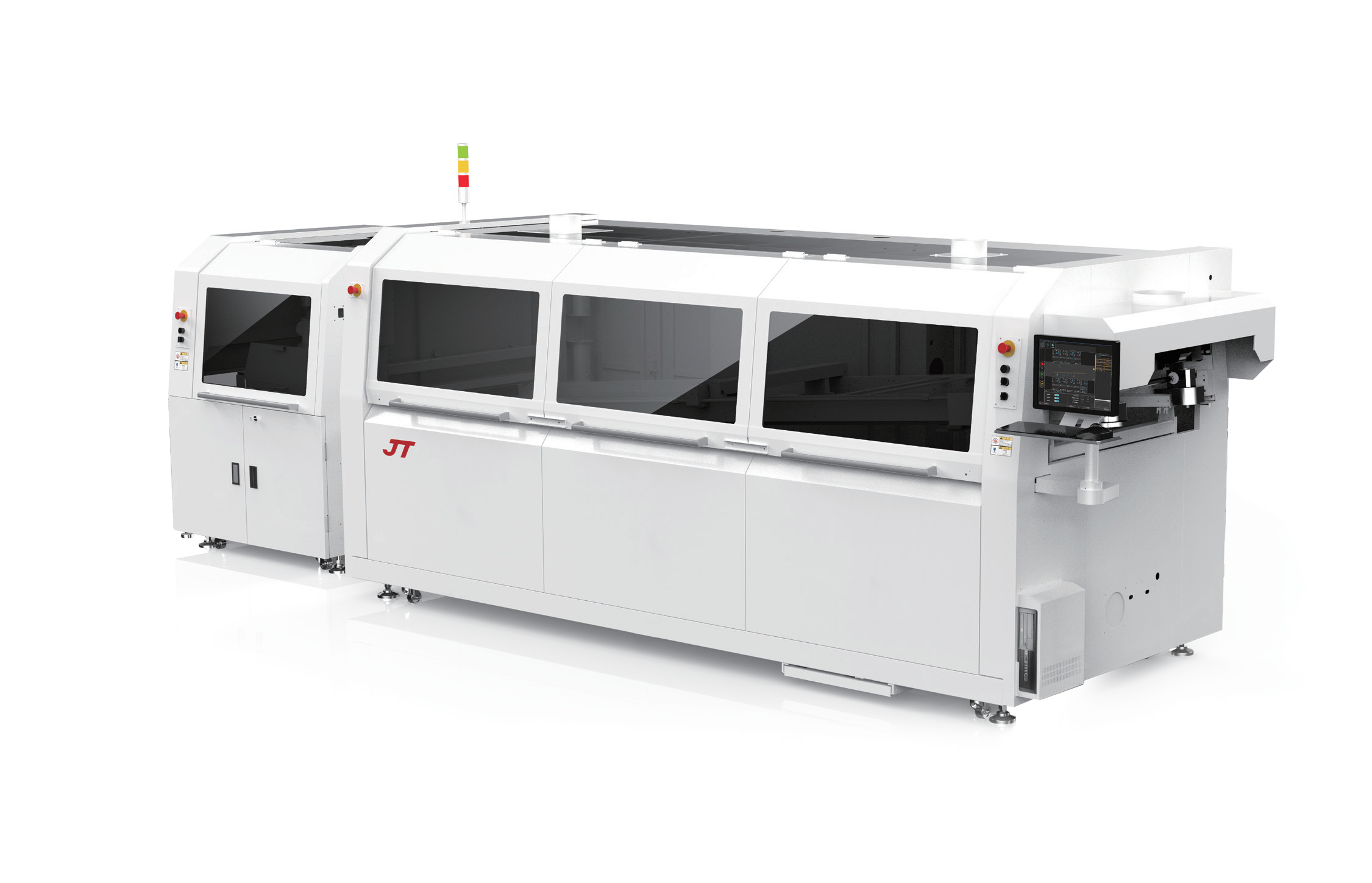

Feature:

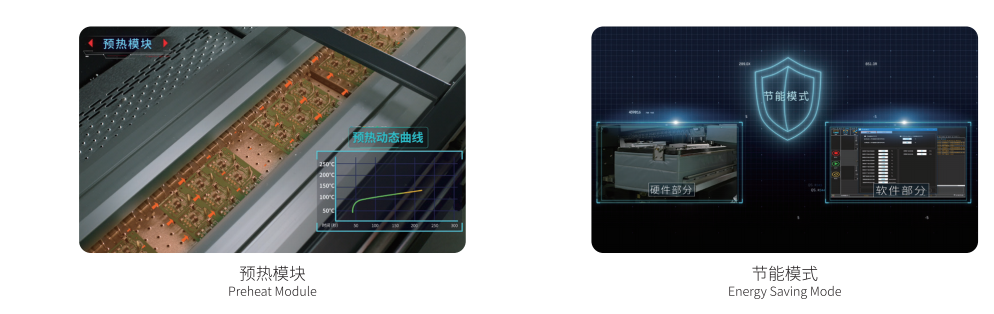

New solution of preheating

· The hot air preheating with u-shaped heater,longer service life,reduce maintenance downtime;
· Interaly aded insulation and compatible withextermal insulation measures,coupled with optional external insulation measures, efectively reduces heat losand saves more than 20% energy compared to the original model;
· The surface temperature of the equipmentis low,and the working environment is optimized.

The large promotion of solder pot

·Quick disassembly and assembly of nozzle,reduce maintenance time,2 hours to a few minutes;
·Liquid level warning device to reduce the impact of tin level changes on peak height;
·Supports compatibility with 25mm high peaks,meeting the new process of high-power power supply PCBA.

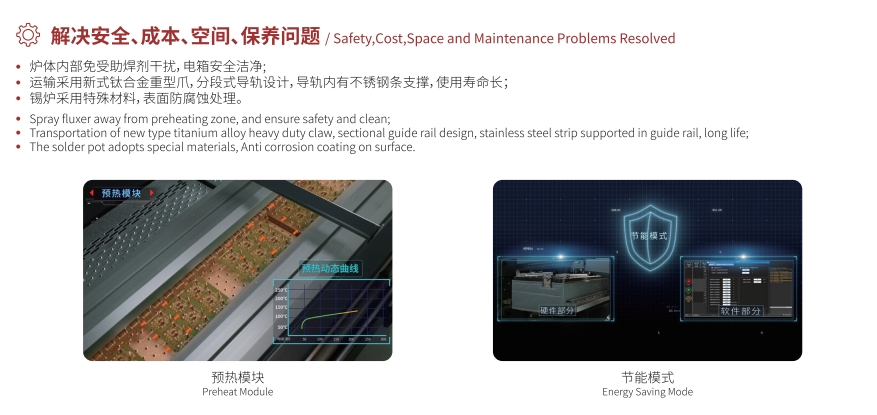

Safety,cost,space and maintenace problems resolved
· Spray fluxer away from preheating zone,and ensure safety and clean;
· Transportation of new type titanium alloy heavy duty claw,sectional guide rail design, stainless steel strip supported in guide rail, long life;
· The solder pot adopts special materials,Anti corrosion coating on surface.

Image:

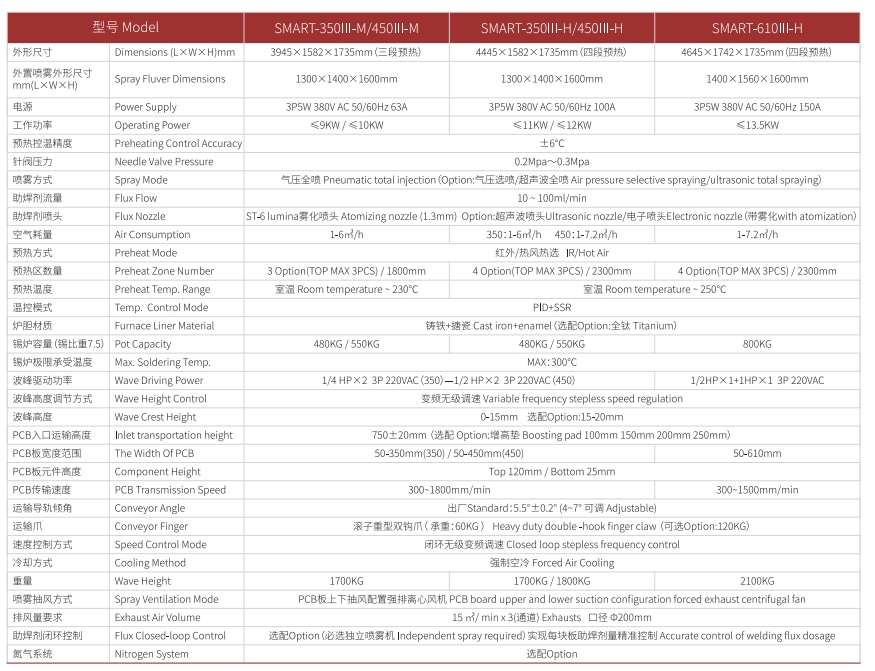

Specification:

Moldel	SMART-350III-M/450III-M	SMART-350III-M/450III-H	SMART-610III-H
Dimension(L*W*H)mm	3945*1400*1735mm(Three section preheating)	4445*1400*1735mm(Four section preheating)	4645*1400*1735mm(Four section preheating)
Spray fluver dimensions	1300*1400*1600mm	1300*1400*1600mm	1400*1560*1600mm
Operating power	3P5W 380V AC 50/60HZ 63A	3P5W 380V AC 50/60HZ 100A	3P5W 380V AC 50/60HZ 150A
Power supply	≤9KW/≤10KW	≤11KW/≤12KW	≤13.5KW
Preheating control accuracy	±6°C
Needle value pressure	0.2Mpa-0.3Mpa
Spray mode	Pneumatic total injeciton(option:air pressure selective spray/untrasonic total spraying)
Flux flow	10-100ml/min
Flux Nozzle	ST-6 lumina Atomizing nozzle (1.3mm)option ultrasonic nozzle/electronic nozzle(with atomization)
Air consumption	1-6m³/h	350:1-6m³/h 450:1-7.2m³/h	1-7.2m³/h
Preheat mode	IR/hot air
Preheat zone number	3 option(top max 3pcs)/1800mm	4 option(top max 3pcs)/2300mm	4 option(top max 3pcs)/2300mm
Preheat Temp. range	Room temp -230°C	Room temp -250°C
Temp.control mode	PID+SSR
Furnace liner material,	Cast iron+enamel(option:Titanium)
Pot capacity	480KG/55KG	480KG/55KG	800KG
Max. soldering Temp	MAX:300°C
Wave driving power	1/4HP*2 3P 220VAC(350)-1/2 HP*2 3P 220VAC(450)		1/2 HP*1+1HP 3P 220VAC
Wave height control	Variable frequency stepless speed regulation
Wave Crest height	0-15mm option:15-20mm
Inlet transportation height	750±20mm(option:boosting pad 100mm 150mm 200mm 250mm)
The width of PCB	50-350mm(350)/50-450mm(450)		50-610mm
Component height	Top 120/bottom 25mm
PCB transmission speed	300-1800mm/min		300-1500mm/min
Conveyor angle	Standard 5.5°±0.2°（4-7° adjustable）
Conveyor finger	Heavy duty double-hook finger claw(load weight(60kg option:120kg)
Speed control mode	Closed loop stepless frequency control
Cooling method	Forced air cooling
Wave height	1700KG	1700KG/1800KG	2100KG
Spray ventilation mode	PCB board upper and lower suction configuration forced exhust centrifugal fan
Exhasut air volume	15m³/min*3 Exhaust opening mouth Diameter:200mm
Flux closed-loop control	Option(Independent spray required) Accurate control of welding flux dosage
Nitrogen system	Option
