Feature:

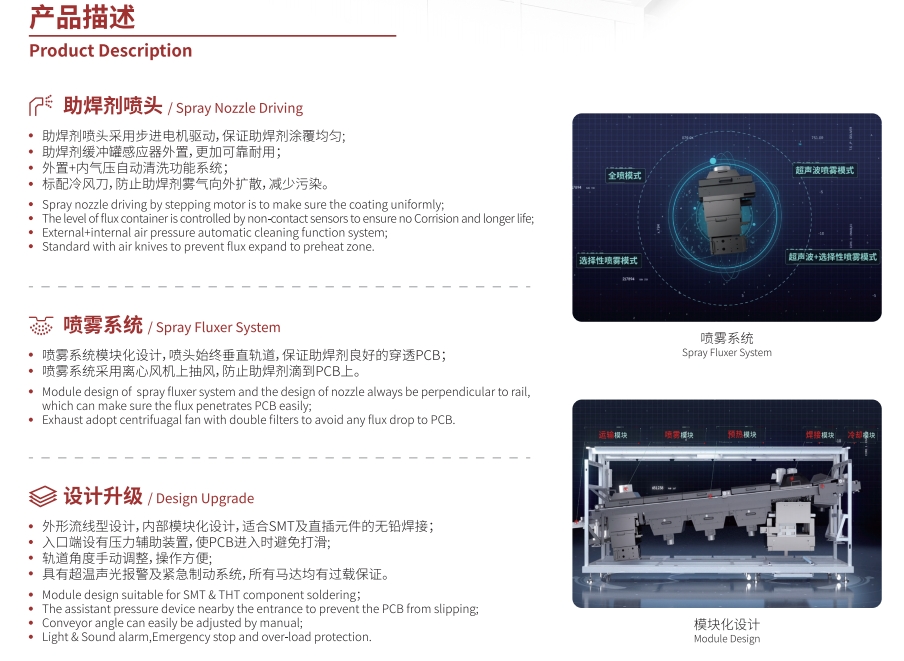

Spray nozzle driving
·Spray nozzle driving by stepping motor is to make sure the coating uniformly;
·The level oflux container is controlled by non-contactsensors to ensureno Corrision and longer life;
·External+internal air pressure automatic cleaning function system;
·Standard with airknives to prevent fluxexpand to preheat zone,

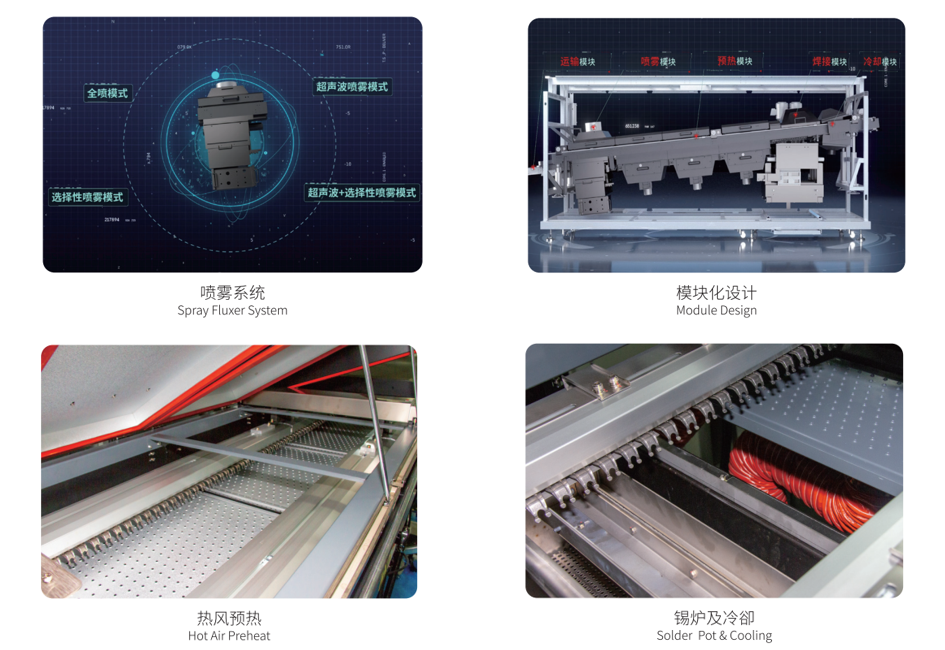

Spray fluxer system
·Module design of spray fluxer system and the design of nozzle always be perpendicular to rail,
which can make sure the flux penetrates PCB easily;
·Exhaust adopt centrifuagal fan with double filters to avoid any flux drop to PCB.
Design upgrade
·Module design suitable for SMT&THT component soldering;
·The assistant pressure device nearby the entrance to prevent the PCB from slipping;
·Conveyor angle can easily be adjusted by manual;
·Light &Sound alarm,Emergency stop and over-load protection.

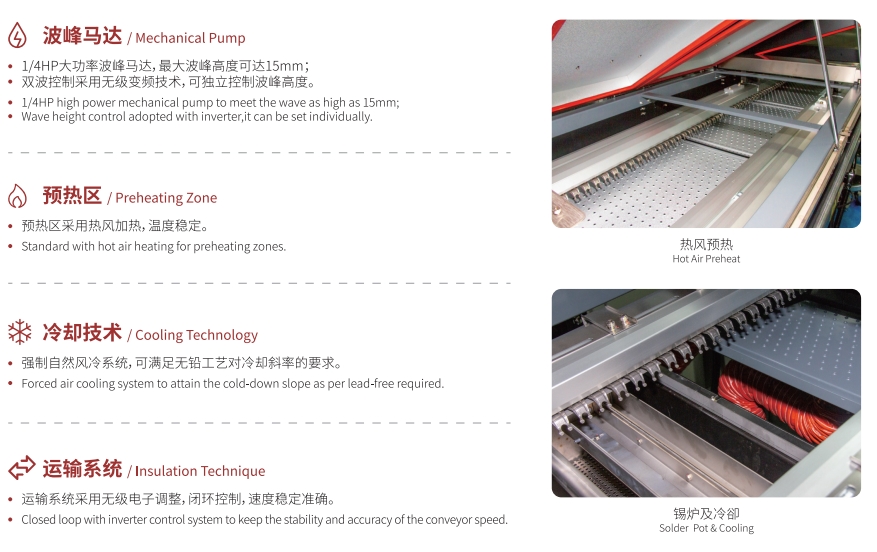

Mechanical Pump
·1/4HP high power mechanical pump to meet the wave as high as15mm;
·Wave height control adopted with inverter,it can be set individually.
Preheating Zone
·Standard with hot air heating for preheating zones.
Cooling Technology
·Forced air cooling system to attain the cold-down slope as per lead-free required.
Insulation Technique
·Closed loop with inverter control system to keep the stability and accuracy of the conveyorspeed.
Image:

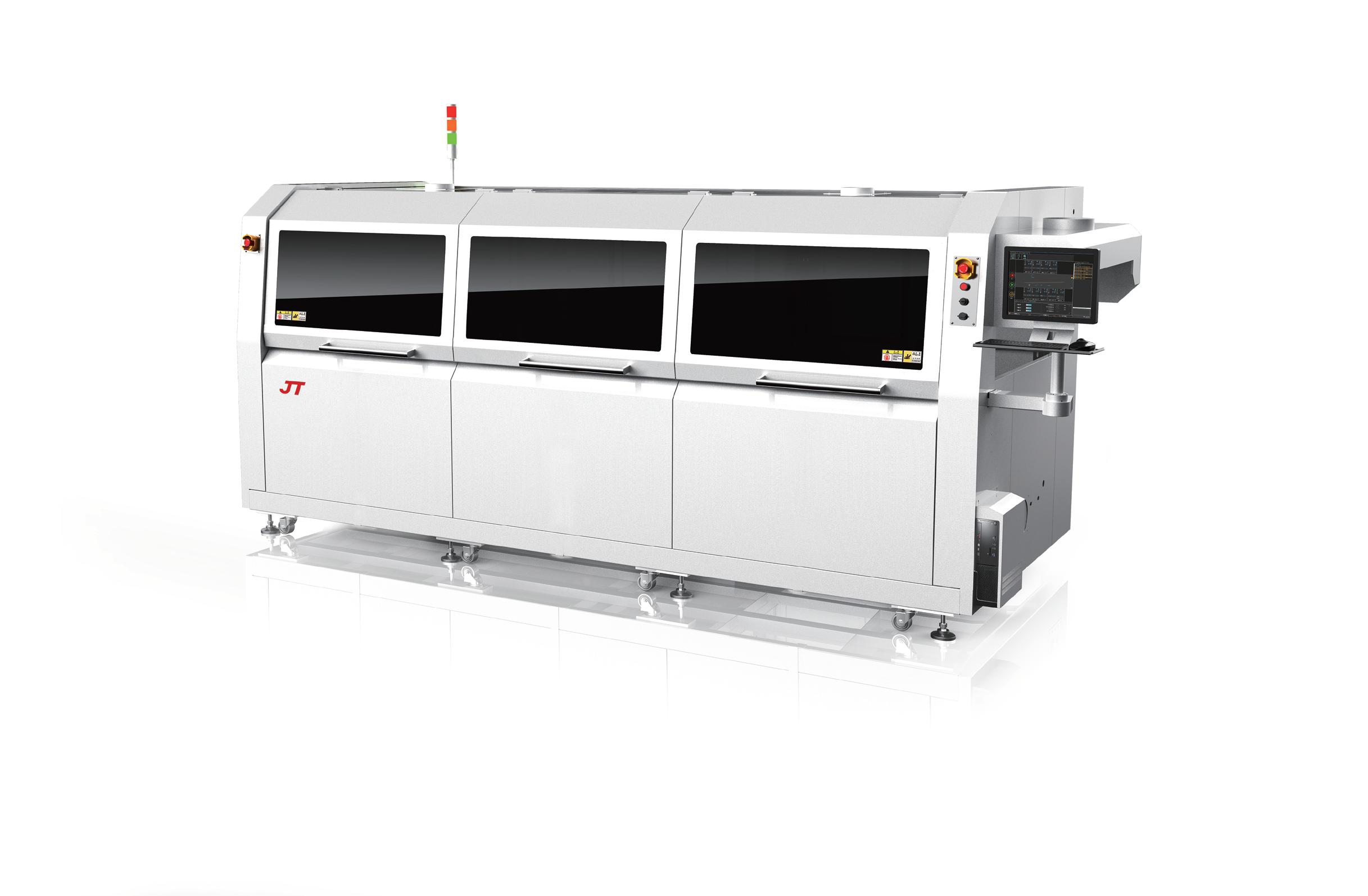

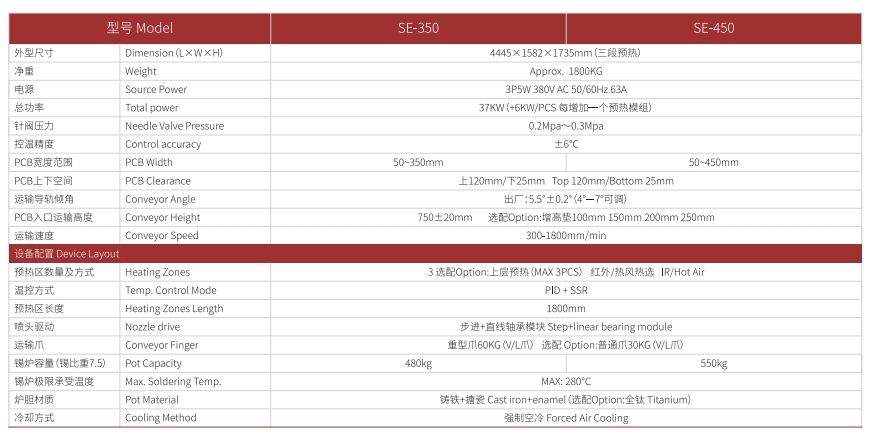

Specification:
| 型 号 M o d e l | SE-350 | SE-450 | |
| 外型尺寸 | Dimension (L×W×H) | 4445×1582×1735mm(三段预热) | |
| 净重 | Weight | Approx.1800KG | |
| 电源 | Source Power | 3P5W 380VAC50/60Hz 63A | |
| 总功率 | Total power | 37KW(+6KW/PCS每增加一个预热模组) | |
| 针阀压力 | Needle Valve Pressure | 0.2Mpa~0.3Mpa | |
| 控温精度 | Control accuracy | ±6℃ | |
| PCB宽度范围 | PCB Width | 50~350mm | 50~450mm |
| PCB上下空间 | PCB Clearance | 上120mm/下25mm Top 120mm/Bottom 25mm | |
| 运输导轨倾角 | Conveyor Angle | 出厂：5.5°±0.2°(4°—7可调) | |
| PCB入口运输高度 | Conveyor Height | 750±20mm 选配Option:增高垫100mm 150mm 200mm 250mm | |
| 运输速度 | Conveyor Speed | 300-1800mm/min | |
| 设备配置Device Layout | |||
| 预热区数量及方式 | Heating Zones | 3选配Option:上层预热(MAX3PCS)红外/热风热选IR/Hot Air | |
| 温控方式 | Temp.Control Mode | PID+SSR | |
| 预热区长度 | Heating Zones Length | 1800mm | |
| 喷头驱动 | Nozzle drive | 步进+直线轴承模块Step+linear bearing module | |
| 运输爪 | Conveyor Finger | 重型爪60KG(V/L爪)选配Option:普通爪30KG(V/L爪) | |
| 锡炉容量(锡比重7.5) | Pot Capacity | 480kg 550kg | |
| 锡炉极限承受温度 | Max.Soldering Temp. | MAX:280℃ | |
| 炉胆材质 | Pot Material | 铸铁+搪瓷Cast iron+enamel(选配Option:全钛Titanium) | |
| 冷却方式 | Cooling Method | 强制空冷Forced Air Cooling | |
