Feature:

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

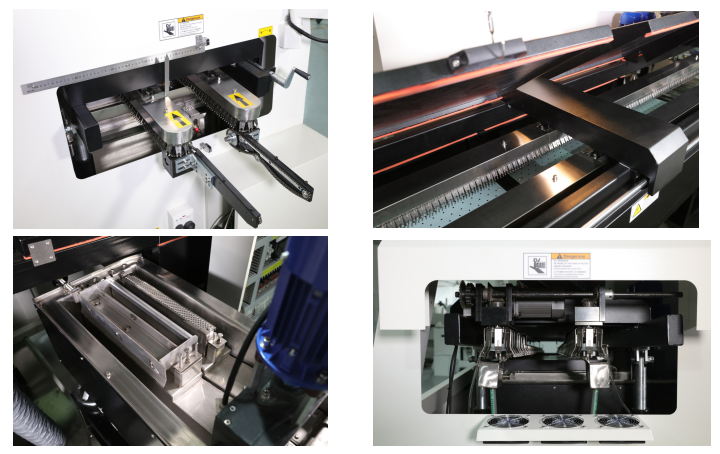

Image:

Specification:

General Specification	Body Dimension: 1400*1200*1600mm
	Weight: Approximately 1100kg
	Start up power: Appro 24KV
	Normal running power:3kw/h
	Power supply:3ph AC380V/220V 50HZ
	Contorl system: Button/Touch Screen/PC
	PCB counter
Conveyor System	Direction: Left to Right, Front Fix(R to L)
	Titanium Alloy V shape Finger
	300mm PCB loading buffer at entrance
	Conveyor speed control method: Motor(Panasonic)
	Conveyor speed: 300-1800mm/min
	Conveyor angle: 4-7°
	PCB Component Height: Top 120mm Botton:15mm
Spray Flux System	Stepper motor drive reciprocating spray
	7-UP ST-8 Nozzles
	The capacity of flux is max 6.5/liter
	Flux auto feeding(option)
	Spray air prssure:3-5bar
	Modular structure for easy maintenance
Heating System	Heating zone: Botton 3 zones
	The length of heating zones:1600mm
	Heating method: Forces hot air
	Heating zones modularization easy to maintenance
Solder Pot	The capacity of solder pot:320kg
	Two wave: Turbulence Wave and lambda 2nd Wave
	Materials:Titanium alloy(op:cast iron enamel)
	Auto solder Pot Moving(go in,go out,up,down)
	Cleaning finger systems
