Feature:

1. Automatic conveying power system and auto synchronous board feeding functions.

2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.

4. PLC is used to control the machine, to ensure the reliability and stability of the system.

5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

6. Special alloy solder fingers, strengthened double v-groove.

7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

10.Timer startup feature for solder pot, solder melted within 90 minutes.

11. Automatic finger cleaner ensure the cleanliness of solder fingers.

Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

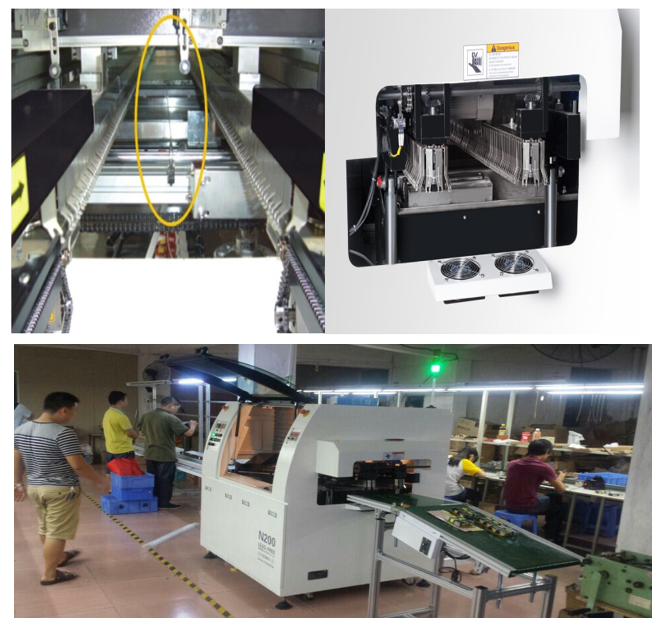

Image:

Specification:

General Specification	Body Dimension: 1400*1200*1600mm
	Total Dimension: 2100*1200*1600mm
	Weight: Approximately 700kg
	Start up power: Appro 9-11KW
	Normal running power:3kw/h
	Power supply:3ph AC380V/220V 50HZ
	Contorl system: Button/Touch Screen/PC
Conveyor System	Direction: Left to Right, Front Fix(R to L)
	Titanium Alloy V shape Finger
	300mm PCB loading buffer at entrance
	Conveyor speed control method: Motor(Panasonic)
	Conveyor speed: 0-1800mm/min
	Conveyor angle: 4-7°
	PCB Component Height: Top 750mm Botton:20mm
Spray Flux System	Stepper motor drive reciprocating spray
	7-UP ST-8 Nozzles
	The capacity of flux is max 3.2/liter
	Flux auto feeding(option)
	Spray air prssure:12.5L/min
Heating System	Heating zone: Botton 1 zones
	The length of heating zones:500mm
	Heating method: Forces hot air
	Heating zones modularization easy to maintenance
Solder Pot	The capacity of solder pot:180kg
	Two wave: Turbulence Wave and lambda 2nd Wave
	Materials:316 stainless steel(op:cast iron enamel, stainless steel)
	Cleaning finger systems
