SMT Assembly Line Product Introduction

Surface Mount Technology (SMT) assembly lines are advanced manufacturing systems designed for the efficient and precise assembly of electronic components onto printed circuit boards (PCBs). These lines are widely used in the electronics manufacturing industry to produce a variety of products, including consumer electronics, automotive electronics, medical devices, and industrial equipment. Below is an introduction to the key components and features of an SMT assembly line:

1. Key Components of an SMT Assembly Line

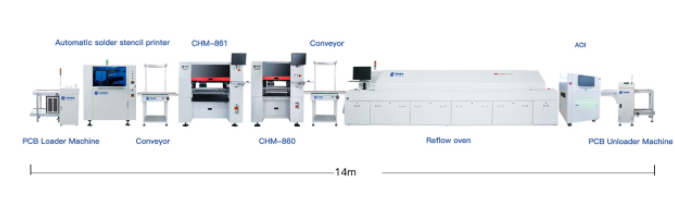

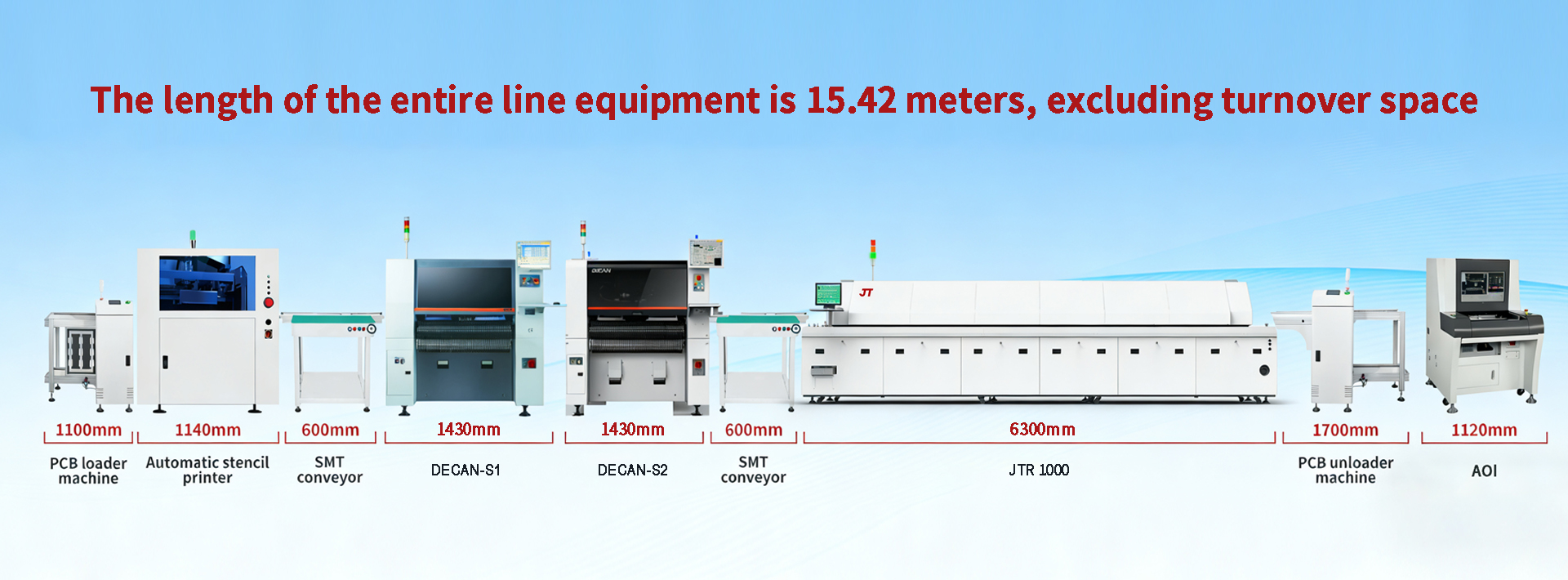

An SMT assembly line typically consists of the following machines and systems:

1.1 Solder Paste Printer

• Function: Applies solder paste onto the PCB pads where components will be placed.

• Key Features: High precision, automatic stencil cleaning, and alignment systems.

1.2 Pick-and-Place Machine

• Function: Automatically picks up surface-mount components (e.g., resistors, capacitors, ICs) and places them onto the PCB.

• Key Features: High-speed placement, multi-nozzle systems, and vision systems for accurate alignment.

1.3 Reflow Oven

• Function: Heats the PCB to melt the solder paste, creating permanent solder joints between components and the PCB.

• Key Features: Multiple heating zones, precise temperature control, and nitrogen atmosphere options.

1.4 Inspection Systems

• AOI (Automated Optical Inspection): Checks for defects such as misaligned components, solder bridges, or missing parts.

• SPI (Solder Paste Inspection): Inspects the quality of solder paste application before component placement.

• X-Ray Inspection: Used for inspecting hidden solder joints, such as those in Ball Grid Array (BGA) components.

1.5 Conveyor System

• Function: Transports PCBs between different machines in the assembly line.

• Key Features: Adjustable speed, smooth transfer, and synchronization with other equipment.

1.6 Glue Dispenser (Optional)

• Function: Applies adhesive to secure components that may not be held by solder alone.

• Key Features: Precise dispensing and programmable patterns.

1.7 Unloader

• Function: Collects finished PCBs after the assembly process.

• Key Features: Stacking or sorting capabilities for efficient handling.

2. Key Features of SMT Assembly Lines

• High Precision: Ensures accurate placement of tiny components, even at high speeds.

• Automation: Reduces manual labor and increases production efficiency.

• Flexibility: Can handle a wide range of PCB sizes and component types.

• Scalability: Can be expanded or reconfigured to meet changing production needs.

• Quality Control: Integrated inspection systems ensure high-quality output and reduce defects.

3. Applications of SMT Assembly Lines

SMT assembly lines are used in the production of various electronic products, including:

• Smartphones, tablets, and laptops

• LED lighting systems

• Automotive control units and sensors

• Medical devices and equipment

• Industrial control systems and IoT devices

4. Benefits of SMT Assembly Lines

• High Efficiency: Enables mass production with minimal downtime.

• Cost-Effective: Reduces material waste and labor costs.

• Compact Design: Allows for smaller and lighter electronic devices.

• Reliability: Produces consistent and reliable solder joints.

5. Customization Options

SMT assembly lines can be customized to meet specific production requirements, such as:

• Adjustable line speed and throughput

• Integration with additional inspection or testing equipment

• Support for lead-free or specialized soldering processes

  6. Conclusion

  SMT assembly lines are essential for modern electronics manufacturing, offering high precision, efficiency, and scalability. Whether for small-scale prototyping or large-scale production, these systems provide the technology needed to meet the demands of today’s fast-paced electronics industry.
