High Speed YAMAHA YRM10 Pick And Place Machine

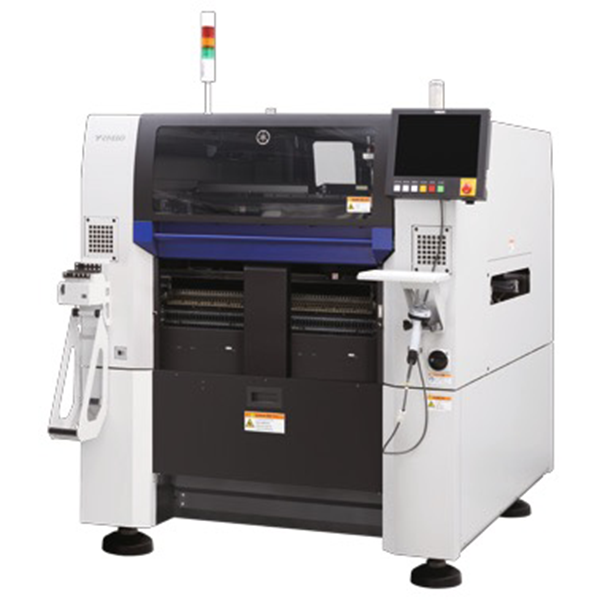

Original New YAMAHA High Speed Pick And Place Machine YRM10
Applicable PCB: L 50 x W 50mm to L 510 x W 460mmNote 1
Applicable components: 0201 mm to L 100 x W 55 mm, H 15 mm or less
Mounting capabilityNote 2: 52,000 CPH
Applicable PCB: L 50 x W 50mm to L 510 x W 460mmNote 1
Applicable components: 0201 mm to L 100 x W 55 mm, H 15 mm or less
Mounting capabilityNote 2: 52,000 CPH
PRODUCT DETAIL
Feature
Achieves outstanding cost efficiency and defect-free production
Offers the high speed of 52,000 CPH, and multiple capabilities to handle components from 0201 to 100 x 55 mm
Outstanding cost performance: Value-added production with mounting capability, typically not achievable within the economy price range
Achieves high-quality production: Toward defect-free production with high mounting accuracy and a wide range of functions
Easy-to-use, multi-purpose operation: Simple, single-head operation bringing great usability
High-speed multi-purpose in-line head: Achieves high-speed mounting of 52,000 CPH (under our optimized conditions). Also secures an accuracy of ± 35 μm (Cpk ≧ 1.0).
Scan camera: The head side features a component-recognition camera to identify components during transportation. Shortest-route transportation from pickup to mounting, improving productivity.
High-quality production
Detects posture anomalies of components before mounting: The side-view function detects pickup status and component presence with no time loss, for defect-free production.
Prevents defects from bended leads: Coplanarity checker detects IC’s bended lead before mounting, preventing defects.
Accurately detects BGA ball missing: Side lighting meticulously detects missing BGA balls that cannot be detected with lighting from underneath.
Achieves steady pickup and mounting: The head can change speed momentarily during pickup and mounting to maintain production and steady quality.
Great usability
Slim and light feeder improves operability: Compact feeder weighing under 1 kg, operable with one hand for better work efficiency.
Components can be supplied “anytime” with “no specific skills”: Remaining components monitor and Auto Loading Feeder are combined to supply components efficiently at any chosen timing, optimizing operators’ component-supply work.
Efficiently supplies tray components: YRM10 can feature the space-saving, cost-effective 15-magazine tray component feeder sATS15R.
Nozzle is automatically replaced, requiring no changeovers: The nozzle is automatically replaced according to the mounting PCB. The nozzle holder can be detached with just one touch, providing ease of maintenance and changeovers.

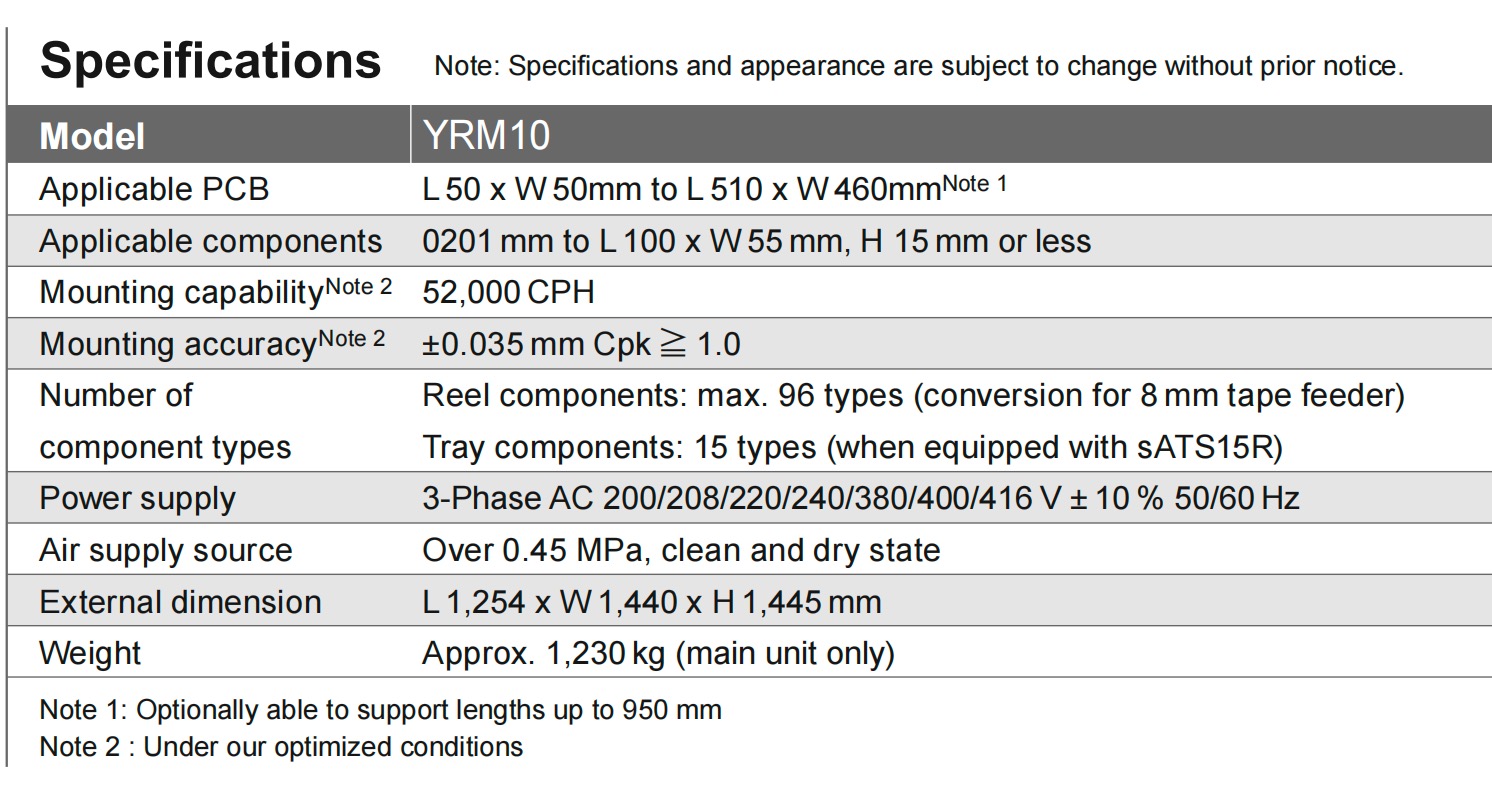

Specification
