Even faster assembly of smallest chips (0201 metric) up to large components of 50 x 150 mm or 74 mm edge length for square components.

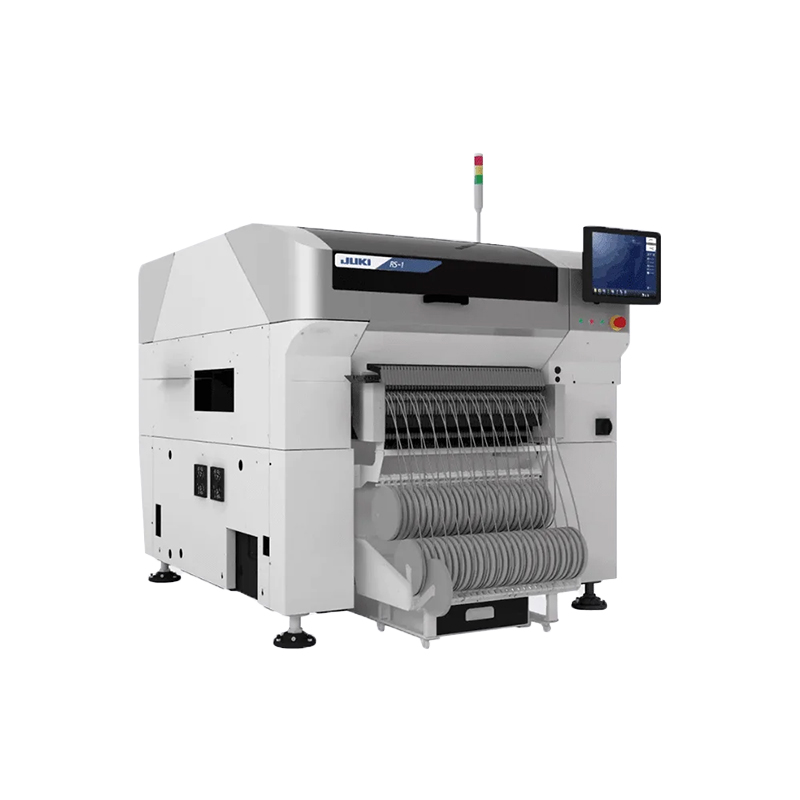

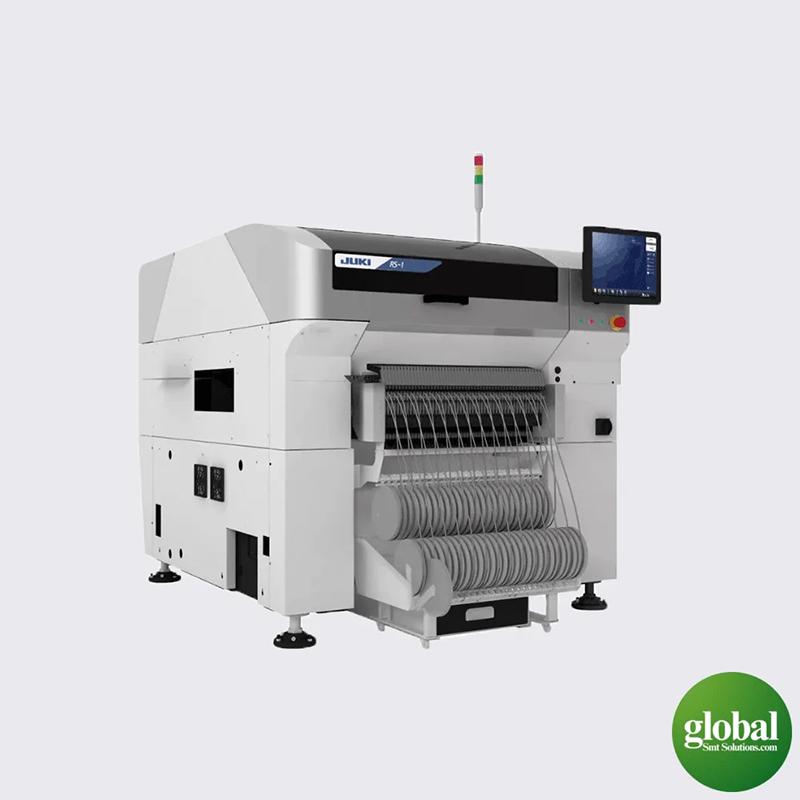

Next-Generation Smart Fast Modular Mounter
The consistent further development of the tried-and-tested technologies from the RS-1 opens up new, outstanding possibilities:
Even faster assembly of smallest chips (0201 metrics) up to large components of 50 x 150 mm or 74 mm edge length for square components. The base frame of the RS-1R has been completely redesigned for this purpose. The unique Takumi head covers even more different component heights and thus achieves a decisive speed advantage. The 360 ° visual component recognition allows the secure detection of user-specific polarity marks. Thanks to the RFID integration in the nozzles, these can be traced back completely together with the components and boards. The machine combines the features of a chip shooter with a mounter for large components. The purchase of each special machine type it eliminates a change of the placement head
-
New RF Style Feeder Design
- The new RF-style feeders are 17% smaller and 50% lighter.
-
Supports a Wide Component Range
- Build any board from 0402 metrics (01005) up to 74mm square and 50mmx150mm rectangular parts for max flexibility.
-
Highly Adaptable Design
- Dynamically optimizes line balance for the highest throughput
-
New Head Design
- The new head design automatically adjusts the centering height based on the components placed.
-
Advanced Laser Centering Technology
- JUKI’s Advanced Laser Centering Technology is fast, accurate, and reliable for a wide range of parts.

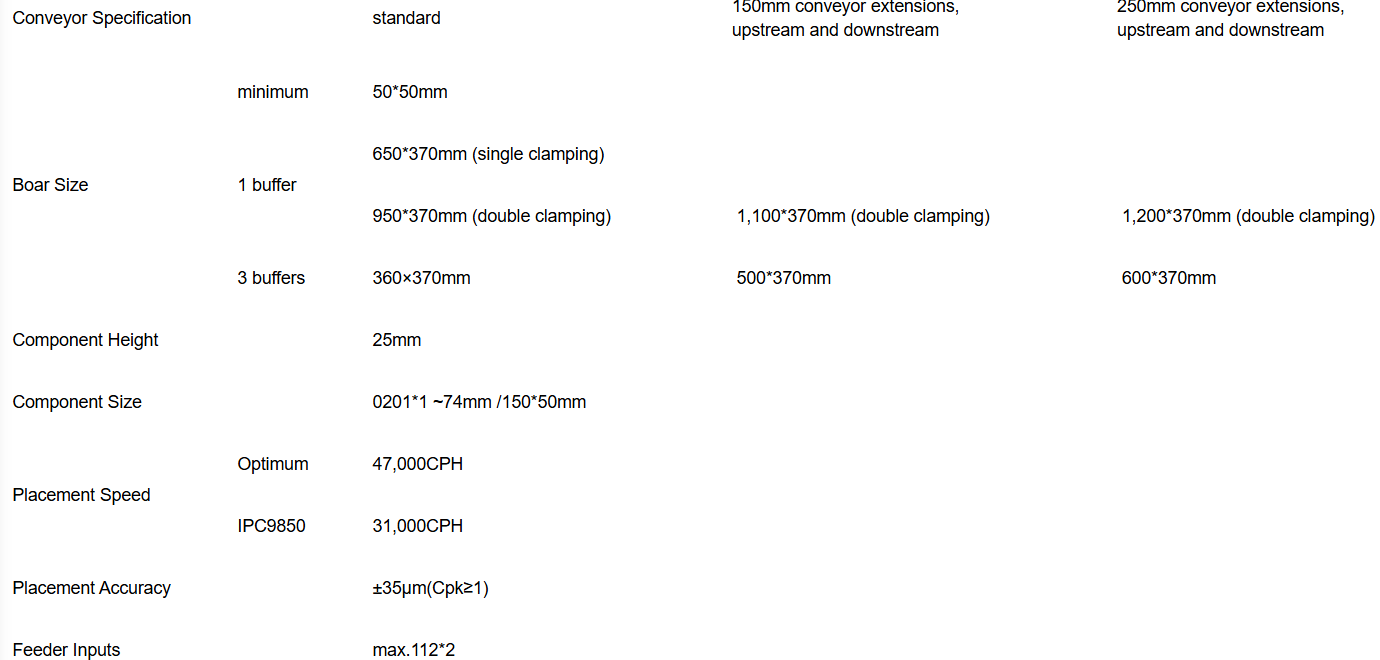

Specification
