Feature:
1.Zero Waste Sample Production: Adopts semi-extend mode to eliminate component waste during sample runs, optimizing cost efficiency.
2.Rapid Job Switching: Transfers feeder adhesion information seamlessly, enabling quick and smooth job changes for enhanced productivity.
3.Unified Lighting Control: Presets consistent lighting levels to ensure accurate component recognition, reducing errors in placement.
4.Multi-Supplier Component Compatibility: Supports components from various suppliers, offering flexibility in material sourcing.
5.Wide PCB & Component Adaptability: Accommodates multiple PCB sizes (M/L/XL) and handles tiny 01005 components with high precision.

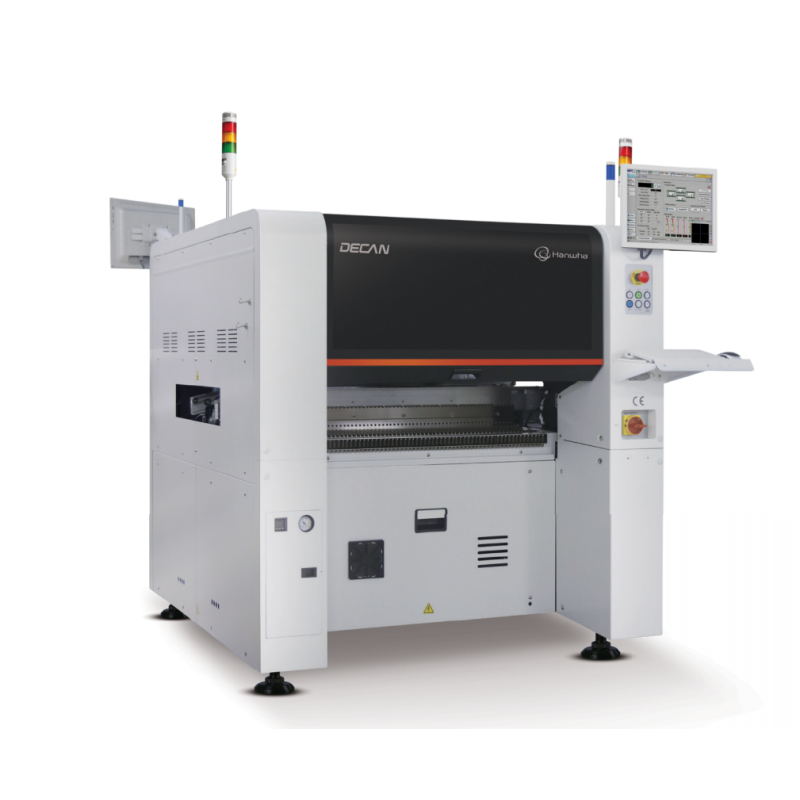

Image:
Specification:
|
Model: DECAN L1 |
|||
|
Alignment
|
Fly Camera+Fix Camera | ||
|
The number of spindles
|
6 Spindles×1 Gantry | ||
|
Placement Speed*
|
30,000 CPH (Optimum) | ||
|
Placement Accuracy* |
Chip | ±40μm @Cpk≥1.0 | |
| QFP | ±30μm @Cpk≥1.0 | ||
|
Component Range |
Fly Camera | 0402~□21mm | |
| Fix Camera |
~□55mm |
||
| Max.Height | 12mm(Fly),25mm(Fix) | ||
|
PCB Size(mm)
|
Min. | L50×W40* | |
| Max. | Standard | L510xW510 | |
| Option | ~Max.L1,500xW460,L1,500×W510 | ||
|
PCB Thickness(mm)
|
0.38～4.2 | ||
|
Feeder Capacity
(8mm Standard)
|
Standard | 120ea/112ea(Docking Cart) | |
|
Utility
|
Power |
3Phase AC200/208/220/240/380/415V Max.3.5kVA |
|
| Air Consumption |
5.0~7.0kgf/cm 50Ne/min (Vaccum Compressor) |
||
|
Weight(H900 mm
Standard)
|
Approx.1,600 kg | ||
|
External Dimension (Standard)
|
1,430(L)×1,740(D)×1,995(H)mm | ||
