The design and manufacture of the unloading machine is to meet the needs of customers for pcb boards, so that the pcb boards have good stability and reliability during the manufacturing process. During the production process, the unloading machine is mainly composed of computer control, power control, current detection, voltage detection and various parameter adjustments. The characteristics of the lower board machine are strong and stable. Strong and stable are two important characteristics of the pcb board. The structural features of the unloading machine are the strong and stable sheet metal main frame design, the effective cylinder push plate design can ensure that the pcb board will not be pushed, and the multifunctional circuit circuit and program design. The structural feature of the plate removal machine is that the strong and stable sheet metal main frame design can ensure that the pcb board will not be pushed and damaged, and the multi-functional circuit circuit and program design have stable performance.

Feature:

1.Strong and stable design,
2.PLC control system,
3.Touch screen control panel,
4.The upper and lower pneumatic clamps can ensure the position of the material box is more accurate,
5.Effective design can ensure that the PCB is not damaged,
6.Automatic detection of fault code display function,
7.Compatible with SMEMA interface.

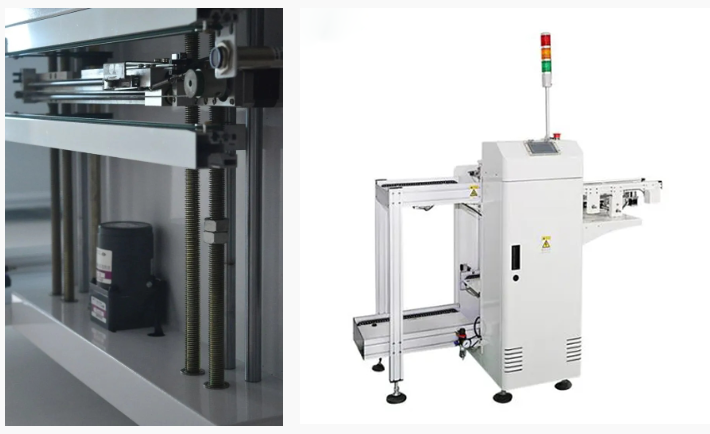

Image:

Specification:

Model No	ULD-250	ULD-330	ULD-390	ULD-460
Machine size(L*W*H)	1730*770*1250	1900*850*1250	2330*910*1250	2330*980*1250
Weight	165KG	205KG	225kg	245kg
Material	Special Aluminum alloy guide rails and rubber belt
Magazine move method	Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan
Transport motor	Transport motor used 15W stable speed motor made in Taiwan
Clamping structure	Pneumatic PCB clamping structure
Magazine size(L*W*H)	355*320*563mm	460*400*563mm	535*460*570	535*530*570
PCB size(L*W)	50*50-350*250mm	50*50-460*330mm	50*50-530*390mm	50*50-530*460mm
Direction	R-L/L-R
Adjustable Lifting distanc	10,20,30,and 40mm
Transport height	920±30mm
Control	Programmable Mitsubishi PLC and controller
PCB load	PCB Automatic loading to conveyor
Operation Control system	Touch Panel controlled interface
Plate pushing	Pneumatic Compone(Push plate cylinder with a screw adjustment positionnt)
Power	220V 50HZ
Air pressure	0.4-0.6MPa
Max store PCB Quantity	50PCS
Electronic control	One set Electronic control box
