SMT Line Automatic Parallel Travsfer Unit Machine
For SMT production line,the use ofa moving table in twolocations of the round trip Use one-to-many,many-to-one,many-to-many of the production line of the shunt outout.
PRODUCT DETAIL
Feature:
a)PLC Control System
b)Automatic translationdrive,servo motor drive
c)Fast and stable positioning,accurate
d)With throughtranslation switching function

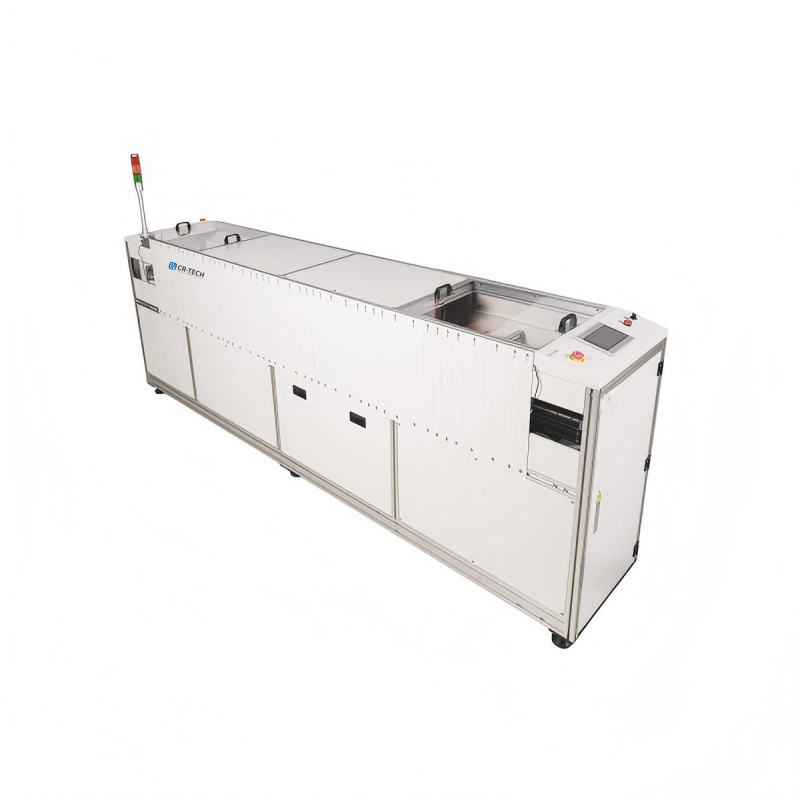

Image:
Specification:
| Model | 型号 | CR-600-3000 |
| Overall Dimension | 外机台尺寸 | (L)600*(W)3000*(H)1150mm |
| Control System | 控制方式 | PLC |
| PCB Conveyor Direction | 传输方向 | 左至右(流向指定) |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max500*460mm |
| Track width | 传送宽度 | Min50-Max460mm |
| Conveyor speed | 传送速度 | 1.5~8M/min可调 |
| Cycle | 循环周期 | 15S |
| Power supply | 电源 | 220V 50HZ |
| Track Height | 传送高度 | 920±30mm |
| Power Consumption | 功率 | 0.5KW |
| Weight | 重量 | about280KG |
