Feature:

1. European standard aluminum profile + steel plate frame structure, heavier design structure is stronger

2. Frequency conversion lifting device, smooth movement, anti-stuck board

3. Export-oriented, simple width adjustment design, quick and flexible line change

4. The pushing mechanism can be adjusted flexibly

5. Light touch film panel

6. 4-point positioning of material box

7. CE highest safety level design

8. High throughput, short material conversion time

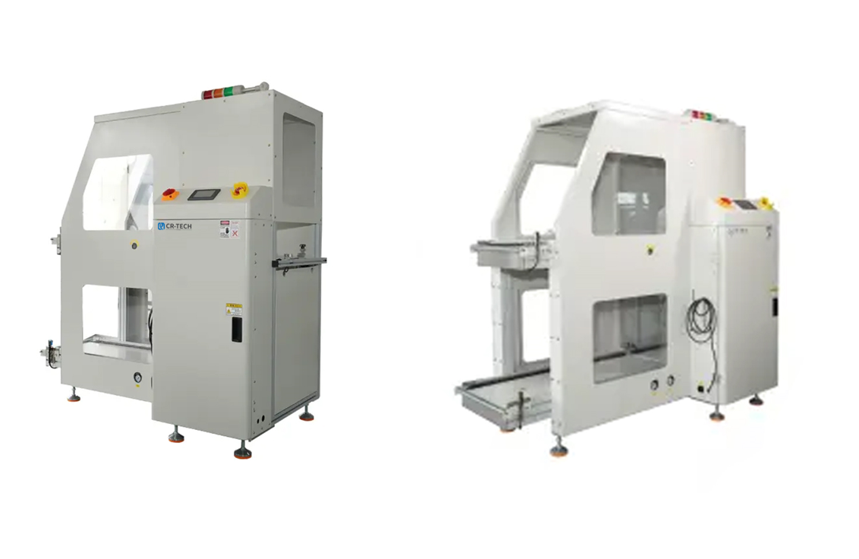

Image:

Specification:

Machine configuration	LD-250	LD-330	LD-390	LD-460
Transmission height	910 mm ± 30 mm	910 mm ± 30 mm	910 mm ± 30 mm	910 mm ± 30 mm
Conveyor belt	3mm flat belt	3mm flat belt	3mm flat belt	3mm flat belt
Communication interface	SMEMA	SMEMA	SMEMA	SMEMA
Transmission direction	L to R/R to L	L to R/R to L	L to R/R to L	L to R/R to L
Fixed rail	Front of the machine	Front of the machine	Front of the machine	Front of the machine
Transmission structure	1-stage	1-stage	1-stage	1-stage
Width adjustment method	manual adjustment	manual adjustment	manual adjustment	manual adjustment
Substrate size
Material frame size	355*320*563mm	460*400*563mm	535*460*570mm	535*530*570mm
Number of material frames	Up1, down 2	Up1, down 2	Up1, down 2	Up1, down 2
Substrate size (L*W)	70*70mm~330*250mm	70*70mm~445*330mm	70*70mm~530*390mm	70*70mm~530*460mm
Substrate component height	±30mm	±30mm	±30mm	±30mm
Substrate weight	≤1.5kg	≤1.5kg	≤1.5kg	≤1.5kg
Installation requirements
Power Supply	220V 50/60Hz ±10%	220V 50/60Hz ±10%	220V 50/60Hz ±10%	220V 50/60Hz ±10%
power supply system	L1+N+PE	L1+N+PE	L1+N+PE	L1+N+PE
power	0.5KW	0.5KW	0.5KW	0.5KW
Gas source	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Gas consumption	＜20L/min	＜20L/min	＜20L/min	＜20L/min
Power plug type	International standard (optional)
Machine description
Machine dimension	1375*766*1630mm	1820*845*1630mm	1895*900*1630mm	1895*970*1630mm
Machine weight	≤180kg	≤220kg	≤260kg	≤280kg
Fixed point to front size (X)	375mm	375mm	375mm	375mm
Noise level	< 75 dB	< 75 dB	< 75 dB	< 75 dB
Optional items
A-Single machine automatic width adjustment, B-FUJI Nexim, Panasonic ILNB system docking, C-CE safety interlock, D-AGV docking, E-box placement quantity, F-other
Product Description
The device is used at the front end of the production line to automatically load the PCB. Through integrated push plate device and lifting vertical transportation, and then use the push plate mechanism to send to the next process. The machine is characterized by short cycle time, saving manpower movement to achieve the best intelligent production effect, improving quality and production efficiency. Surface electrostatic powder coating, the frame uses the perfect combination of European standard profiles and sheet metal to ensure process stability and excellent durability.
