PCB Reject Conveyor

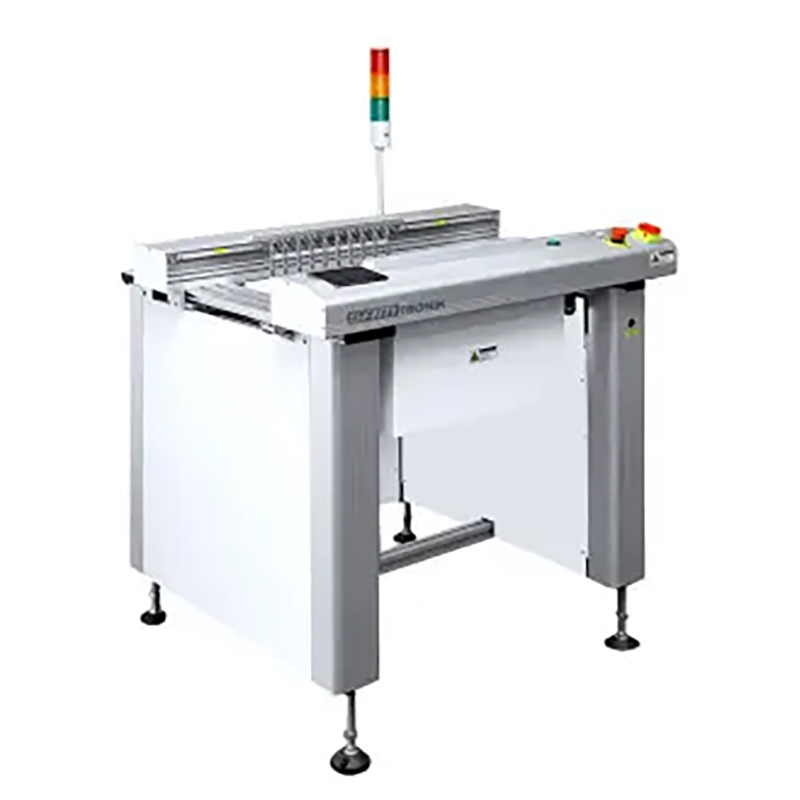

Description:
The pcb conveyor is used in the back end of AOI and SPI For inspection NG OK board .
The fault board can be lifted for visual inspection without interrupting the production process.
The whole machine adopts miniaturization design and occupies a small area.
Surface electrostatic powder coating.
The frame adopts the perfect combination of European standard profile and sheet metal to ensure the process stability and excellent durability.
The pcb conveyor is used in the back end of AOI and SPI For inspection NG OK board .
The fault board can be lifted for visual inspection without interrupting the production process.
The whole machine adopts miniaturization design and occupies a small area.
Surface electrostatic powder coating.
The frame adopts the perfect combination of European standard profile and sheet metal to ensure the process stability and excellent durability.
PRODUCT DETAIL
Feature:
Conform to human engineering design;
Smooth and parallel width adjustment, safe and dustproof design;European standard aluminum profile + sheet metal structure, ingenious combination, make the appearance of the equipment more perfect;
Accurate position of sensing stop plate;
Special L-shaped design, laser engraved stainless steel guide plate, with excellent quality and durability;
User friendly touch control panel;
Including “reject”, “check” and “pass” modes;
“Robust design” enhances stability
Specification:

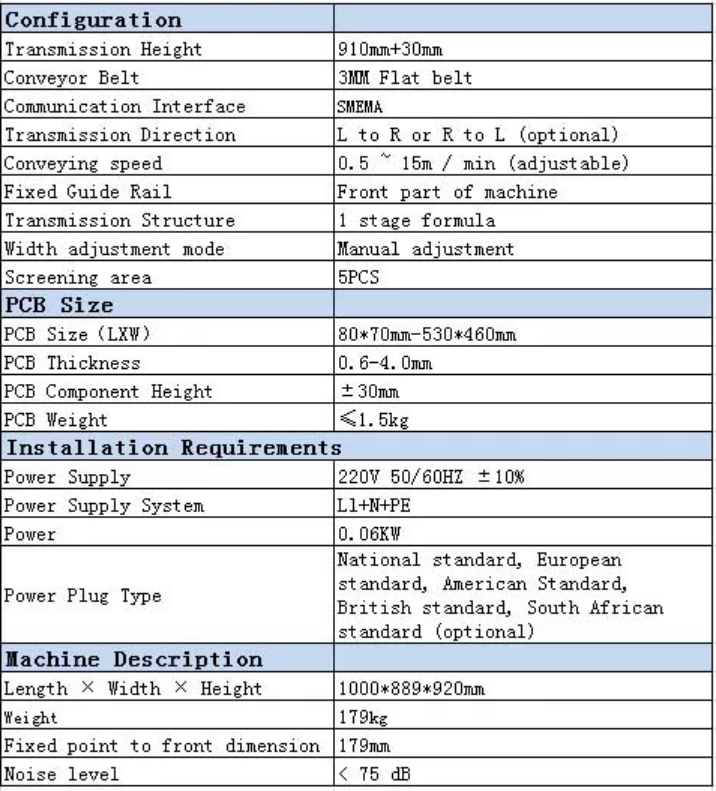

| Configuration | |
| Transmission Height | 910mm+30mm |
| Conveyor Belt | 3MM Flat belt |
| Communication Interface | SMEMA |
| Transmission Direction | L to R or R to L(optional) |
| Conveying speed | 0.5～15m/min(adjustable) |
| Fixed Guide Rail | Front part of machine |
| Transmission Structure | 1 stage formula |
| Width adjustment mode | Manual adjustment |
| Screening area | 5PCS |
| PCB Size | |
| PCB Size(LXW) | 80*70mm-530*460mm |
| PCB Thickness | 0.6-4.0mm |
| PCB Component Height | ±30mm |
| PCB Weight | ≤1.5kg |
| Installation Requirements | |
| Power Supply | 220V 50/60HZ ±10% |
| Power Supply System | L1+N+PE |
| Power | 0.06KW |
| Power Plug Type |
National standard,European
standard,American Standard,
British standard,South African
standard(optional)
|
| Machine Description | |
| Length×Width×Height | 1000*889*920mm |
| Weight | 179kg |
| Fixed point to front dimension | 179πmm |
| Noise level | <75 dB |
