Feature:

1.Baffle Motion Power Supply : Delivers stable pneumatic force to control YSM10’s main baffle lifting and lowering, responding quickly to system commands to stop PCBs at preset conveying positions.

2.Precise PCB Positioning : Maintains a stroke tolerance of ±0.02mm to fix the baffle at optimal height, ensuring PCBs align with the workbench and eliminating pre-placement position deviations.

3.Adjustable Force Protection : Supports air pressure regulation to match different PCB sizes and thicknesses, providing gentle but firm stopping force to avoid board warpage or edge damage.

4.Workshop Environment Adaptability : Adopts sealed cylinder structure and anti-corrosion parts to resist SMT workshop dust, oil mist, and temperature fluctuations for long-term stable operation.

5.Quick Compatibility & Maintenance : Designed for plug-and-play integration with YSM10’s baffle system, enabling tool-free disassembly and replacement to minimize production downtime from cylinder faults.

Specification:

Model Number	KMG-M653F-10

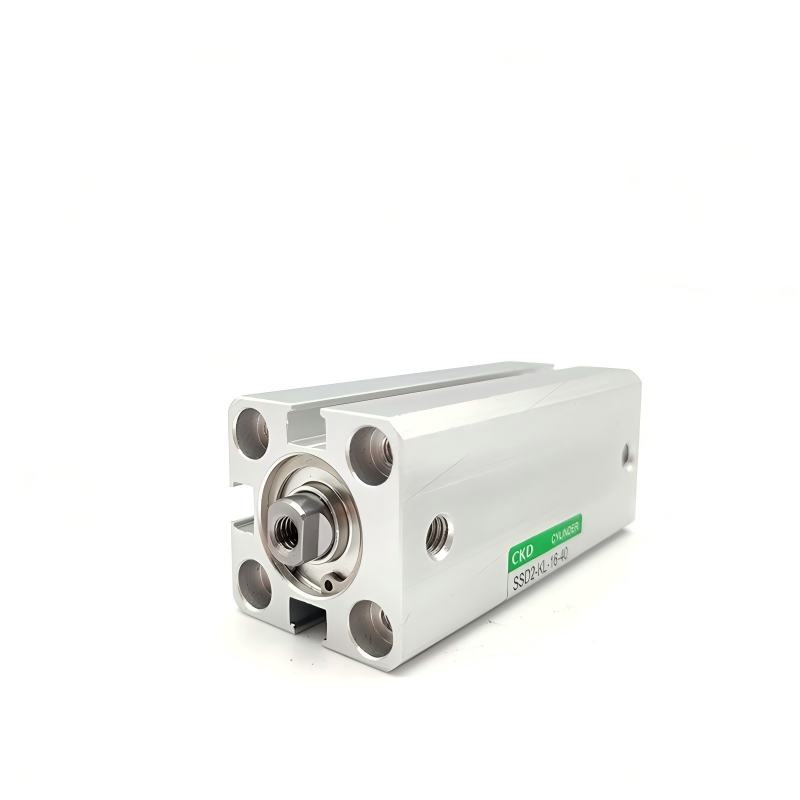

Name	YSM10 main baffle cylinder
Weight(kg)	1
brand name	YAMAHA
type	Cylinder
Quality	Excellent 100% Tested
Place of Origin	Guangdong, China
Packing	Box
Condition	New
Selling Units	Single item
