2. Adjustable foot castor and foot cup make it easy to move machine. It can also fix machine when needed. Foot cup adjustable height is over 50MM.
3. Machine has SMEMA port for connecting to other equipments, as well as network port.
4. Machine can work steadily with production capacity of over 1500pcs/h.
5. Data monitoring output: time of start machine, monitor of production capacity, equipment failure detection and Automatic rejection system, etc.
6. Speed of transport belt can be adjustable.
Brand: CR-Tech
Model: CR-350
thickness of PCB range : 0.8MM-3.0MM
Feature:
| ● The conveying speed can be adjusted. |
| ● The single separated PCB width is 8-20 mm. Max cutting width 300mm;● Machine with automatic feeding system; |
| ● Machine is equipped with safety protection device. |
| ● Suitable cutting material of PCB :aluminum ,FR4,glass fiber. |
| ● Equipped with SMEMA connector ,easy to connect with upstream machine |
| ● The machine adopts the touch screen and PLC which can monitor production information. |
| ● MDS-900 is equipped with multiple sets of blades which can separate the whole lightbar board one time. |
| ● The distance between upper and lower cutter can be precisely adjusted, the separating thickness of PCB range is : 0.8MM-3.0MM. |

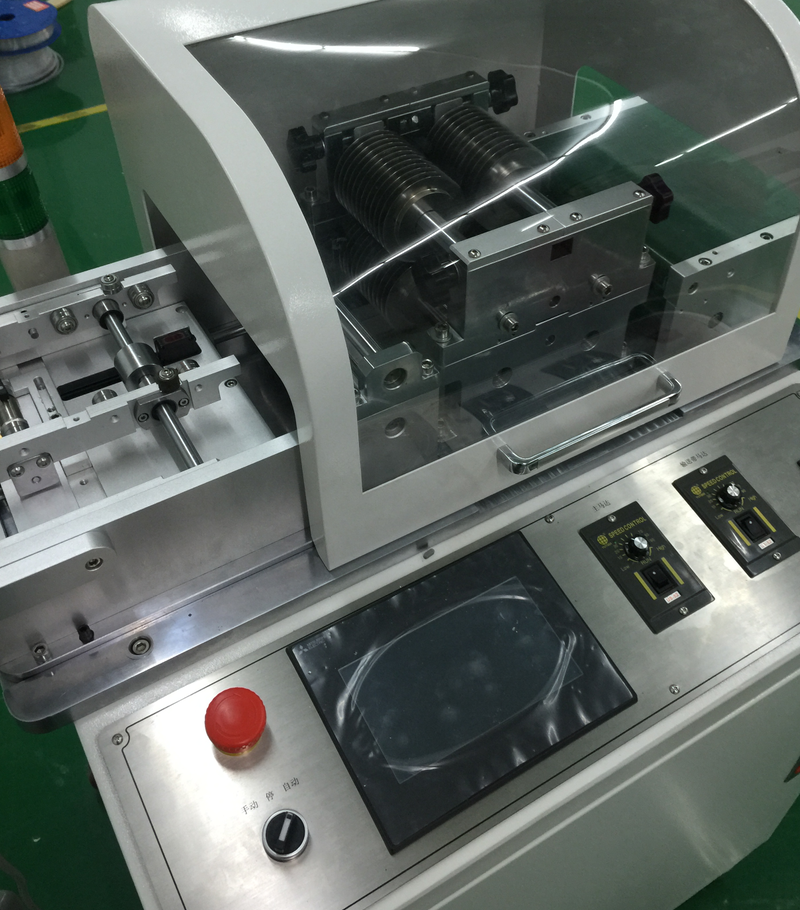

Multiple Groups Of Blades PCB Depaneling CR-350 Machine

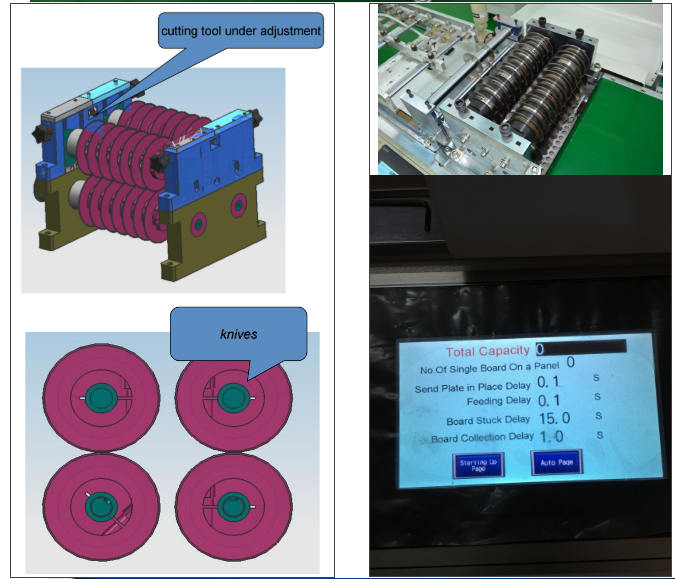

The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time.all blades are made of endurable SKD11 high speed steel.
PCB clamping and conveying system ensure precise separating without deformation and burrs.

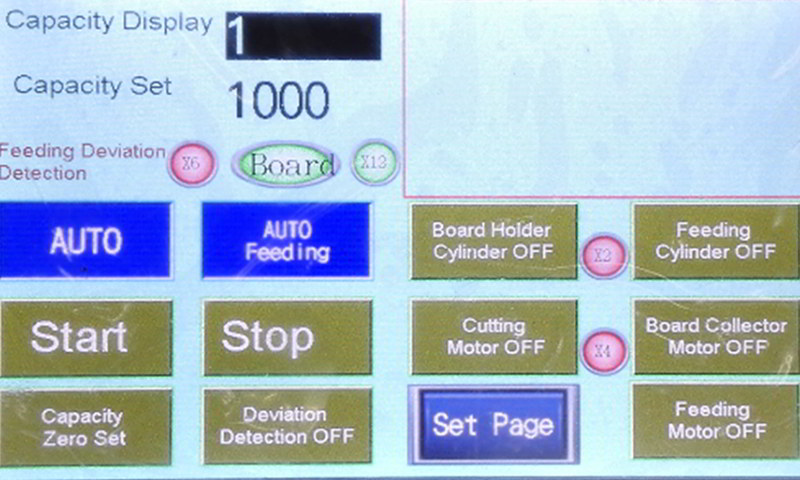

The machine adopts touch screen and PLC control system which can monitor production information,easy to operate. Full english operation interface , easy to operate.
Specification:
|
CR-350- Specifications |
|
|
Model |
CR-350 |
|
Total Dimension |
L2160*W 850* H1050mm |
|
Inlet conveying length |
850mm |
|
Vacuum Cleaner |
Machine with vacuum cleaner |
|
Outlet conveying length |
850mm |
|
Separating blades number |
20 groups of upper and lower blades , total:40pcs |
|
Maximum Cutting Length： |
Unlimited |
|
PCB Thickness |
0.6-5.0mm |
|
Separating PCB bar number at one time |
11 LINES |
|
Separting width of single PCB |
8-20MM |
|
Max PCB width |
240mm or 300 mm |
|
Max component height |
30 mm |
|
Blade material |
SKD61 |
|
Blade average lifespan |
1,000,000 times (1.2m long , 3mm thick PCB) |
|
Voltage |
220V/50Hz or 110V |
|
Machine weight |
210 kg |
|
The spacing between the blades |
Spacer |
|
Power |
230V |
