Feature:

●High efficiency, suitable for mass production
● Small in size and low in energy consumption
● Modular design, flexible expansion in segments, can be combined arbitrarily according to requirements, and customized module combinations for production are possible.
● Modular independent or online operation, capable of being spliced and expanded, and can be used individually.
● Low cost, rapid scalability, suitable for high production capacity requirements as well as small batch and single-machine production.

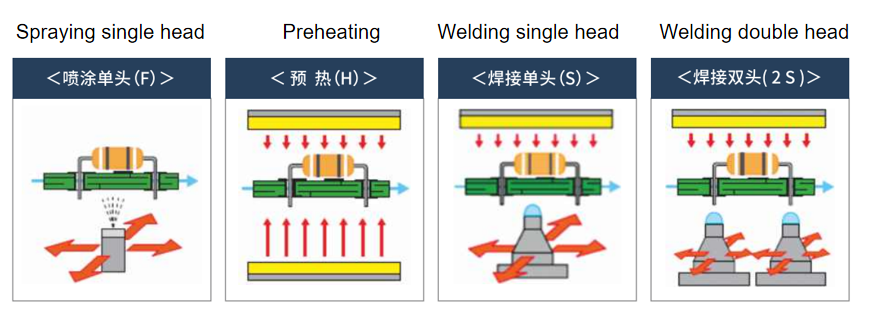

Image:

Specificaiton:

型号Model	FH-400	S-400	M-400
外形尺寸Dimension(L×W×H)	1646×1500×1480	1255×1500×1480	919×1500×1480
轨道范围(Track range)	50-400mm
运输高度（Transmission height）	900±20mm
锡炉(Solder pot)	/	电磁泵Electromagnetic pump/机械泵Mechanical pump	/
锡炉数量(Solder pot QTY)	/	单锡炉(Single solder pot)	/
氮气加热(Nitrogen heating system)	/	选配(Option)	/
