SMT Line Automatic BGA Loader Machine
The fleodble PCB board slored In the cartridge cllp wllbetranafermed to the producton lIne one by one.Afler thecartidge cllp ls empty,the empty cartldge cllp wll beautomatlcally output and replaced by the full cartrldgecllp automatcaly Input.
PRODUCT DETAIL
Feature:
a)PLC Control System
b)Muli Alam System
c)Hingh eficiency and reliable
d)Smooth and accurate actionfuncion funcion is not used
without interupling the production
B)Lifting servo module
f)Touch scroen operalion interface

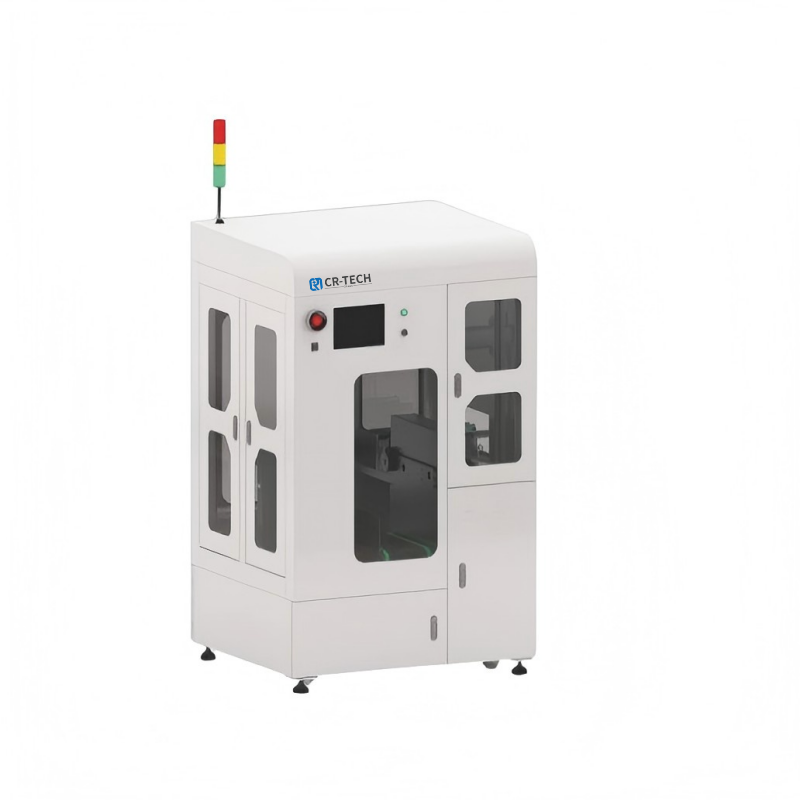

Image:
Specification:
| Model | 型号 | CR-BGA-L320 |
| Overal Dlmenslon | 机台尺寸 | L)1080*(W940*0H)1276mm |
| Control System | 控制方式 | PLC |
| PCB Sze(L*W) | PCB尺寸(LW) | L100-250*W30-86mm |
| PCB CoTveyor direction | 传输方向 | 左至右(流向指定) |
| Coveyor holght | 传输高度 | 900±30mm |
| Pltch Selectlon | 步距选择 | 根据弹夹型号，可设定 |
| Power supply | 电源 | 220V 50HZ |
| Waight | 机台重量 | about270KG |
| Power comsumption | 功率 | 13KW |
| Alr source | 气江 | 0.4-0.6MPa |
