Feature

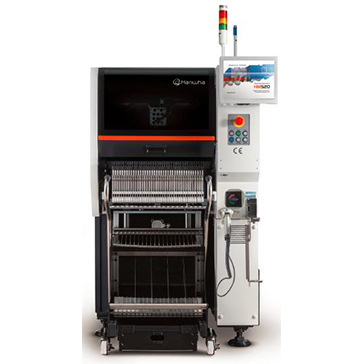

The HM520 series is a highly flexible, ultra-high-speed modular equipment that achieves high productivity per unit area and improves operator convenience. HM520 NEO, which has the highest actual production capacity in its class, is a high-performance equipment that combines speed and precision.
The equipment can achieve high production capacity of up to 85,000 CPH.

• Optimized for high productivity and high quality production.
• SMART FACTORY S/W SOLUTION enables unmanned, non-stop, and defect-free production.
• A flexible production line established using combined placement heads and diversified production modes.

High Productivity
By improving the driving action, the equipment speed is increased: By improving the suction/application driving action, the production capacity of 85,000CPH is achieved, the track transfer speed is increased, and the production line capacity is improved.
High-speed high-definition camera: The high-definition camera not only enables high-precision placement of Mini LED chips, but also high-speed and high-precision placement of Mobile PCB microchips (0402, 0603).
Through the successful development of the HM8mm B feeder, the component supply speed has been improved: the upgraded HM feeder has reduced the feeding time by 23% compared to the existing HM feeder.

High Reliability
Use the Side View camera to prevent missing parts and poor pick-up and placement: Prevent missing parts by checking the suction nozzle and the presence of passive components, and automatically compensate for height deviations caused by the thickness of the source device.

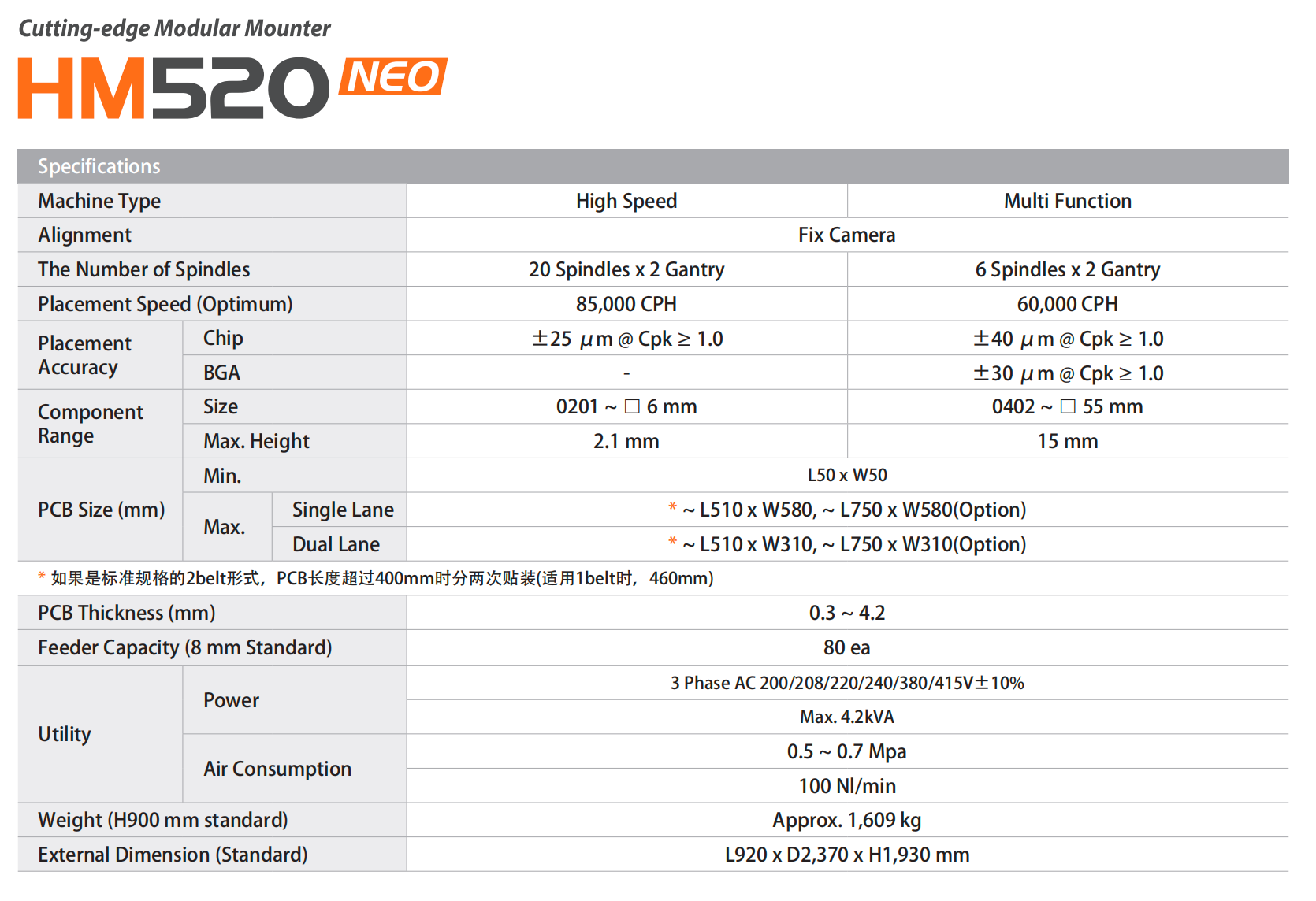

Sepcification
