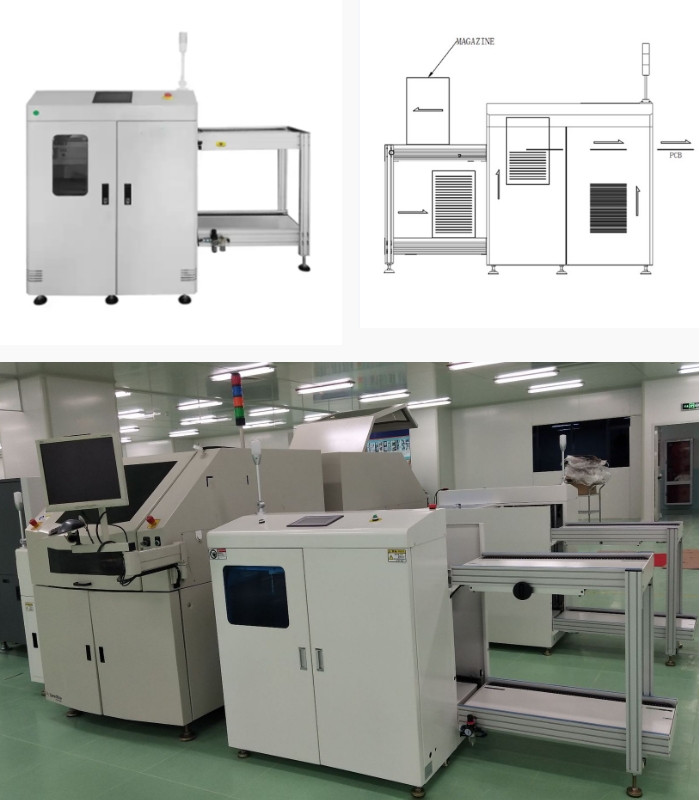

The suction board integrated machine is used at the front end of the SMT production line. It has two board loading modes: material box loading and vacuum suction loading, which can be used for single-panel or double-panel.The control system adopts PLC control, the operation interface adopts touch screen, and is equipped with standard SMEMA signal line; the lifting structure adopts motor lifting setting, and the effective setting step distance can be selected; 10mm, 20mm, 30mm, 40mm, optional frequency converter; The suction board method adopts the vacuum suction board method, and 200-300 PCBs can be stacked each time (determined according to the thickness of the board).

Feature:

1. This equipment is used at the source of the SMT production line. The bare board can use the suction board function, and the non-bare board can use the board loading function to make the production more efficient and practical;
2. Two loading modes are standard, especially suitable for single-line mode of double-panel production line;
3. PLC control system, true color touch screen man-machine control;
4. Auxiliary positioning brake system, accurate positioning, fast lifting speed and high production efficiency;
5. Multiple electrical distribution circuit protection, reliable use;
6. Sound and light prompt alarm system, easier to operate and maintain;
7. Compatible with SMEMA interface, it can be operated online and automatically with other equipment;

Detail:

Specification	CR-250
Power supply	AC 220V/ 50/60Hz
Air supply	5 kg f/cm²
PCB size (mm)	330*50~250
Transport direction	Customize left to right or right to left
Magazine size (mm)	335*320*565
Step pitches	10,20,30,40mm choosable
Storage height	200 mm
Transport height	900 ± 20 mm
Main motor power	300w
Machine size	1650*900*1250
Weight (kg)	230
Control panel	Touch screen
