The PCBA sub-board machine is suitable for the separation of seamless spliced PCBA boards in PCBA manufacturers. Usually, the sub-board is carried out after the PCBA welding is realized, and then the inspection is carried out. Usually, it is not easy to separate the boards in SMT production plants, but the panels are shipped directly to customers. In many small and medium-sized enterprise PCBA production plants, the method of hand-made sub-boards is used, but it is very easy to damage the PCBA board. It is more appropriate to use machines to carry out sub-boards.
Brand: CR-Tech
Model: CR-650
Pogram: Image Processing Software
Routing Area: 300 x 350 mm
Max PCB Thickness(Standard): 2mm
Setting Fixture: 2 stations
Man-Machine Interface: Touchscreen Industrial Monitor + Keyboard + Mouse
PCB Loading/Unloading: Automatic
Max PCB Thickness(Option): 6mm
Router Size(mm): 1300*1100*1500mm
Operation interface: Windows 7
Lead time: 15 days
Warranty : 1 year
Feature:
PCB Router Depaneling Machine CR-650
Router Programming Goes High-Tech:
◎ A. A quick and easy method to learn and use.
◎ B. Accurate software programming to microns.
◎ C. Ideal for programming arcs and circles
◎ D: Save thousands of programs as Windows files.
◎ E. Transfer programs to other routers with a jump drive.
◎ F. Real time display of cutting pattern, sequence and X/Y coordinates.
Features:
CR-Tech-650 series is a visual alignment automatic PCB router machine, equipped with high-speed CCD vision correction device, especially for precision and high-capacity PCB boards routing operations, suitable for mobile phones, GPS, PDA and MODULE and other small The PCB is divided into boards. Using NAKANISHI Japanese precision spindle ( Also can be selected according to customer requirements Germany KAVO spindle etc), Without cutting stress, Board edge after cut is smooth, with high precision.
A. Choose the order method to achieve automatic cutting
1. The cutting process is combined with the production model and quantity, according to the PMC plan to production;
2. To avoid the emergence of advanced production and production capacity is not clear;
3. To avoid modifications in the non-production process;
4. To achieve separation of people and machines.
B. Two-dimensional code automatically retrieves the program.
1. Through the rule of a two-dimensional code can be directly transferred to the program, convenient, simple, no error;
2. Product switching intelligent.
C. CCD scanning function.
1. Industry-leading PCBA full-board scanning function;
2. Reduce the programming time, cutting the path of real-time display, easy to modify simple.
D. Industrial 4.0-MES system
1. The server data is automatically retrieved;
2. upload machine data and production data;
3. Real-time detection of equipment status。
Image:

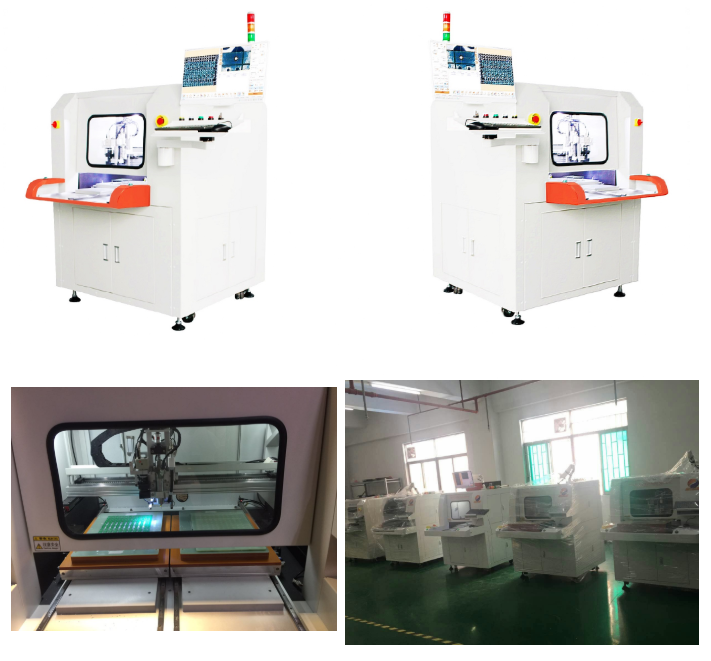

CR-Tech-650 A /CR-Tech-650B Series are fast and accurate stand-alone PCB routers witha CCD camera and sophisticated image-processing software.
A: Solution for low-Stress Depanelization
High-speed router bit precisely cuts densely populated PCBs without stressing the boards. Cutting paths can be set as close as 0.5mm to a component.
B:Advanced Image-Processing Software Offers Point-and-Click Operation for Programming Router Paths.
CCD Camera captures an image of the PCB and easy programming of cutting paths is achieved by simple Point-and -Click Windows-based operation on the computer screen. Time is reduced and programming is simplified by this software.
C: Automatic Alignment Compensation by CCD Camera.
CCD Camera reads fiducial marks on a PCB and compensates for variance on relative position of cutting paths.
D: Extended Router Bit Life.
Automatic 5-stage depth adjustment extends bit life and reduces time and cost of replacement.
E: High-Speed X-Y Robot and Z-axis Servo Motor
Reduces tact time and improves productivity.
F: Samll Footprint
Specification:
| CR-Tech-650 A | CR-Tech 650B |
CR-Tech 650C |
|
| Type | Stand Alone | ||
| Pogram | Image Processing Software | ||
| Routing Area | 300 x 350 mm | 300 x 450 mm | 500 x450mm |
| Max PCB Thickness(Standard) | 2mm | ||
| Setting Fixture | 2 stations | ||
| Man-Machine Interface | Touchscreen Industrial Monitor + Keyboard + Mouse | ||
| PCB Loading/Unloading | Automatic | ||
| Max PCB Thickness(Option) | 6mm | ||
| PCB Material | Glass Epoxy,CEM1,CEM3,FR4 etc. | ||
| Router Bit Diameter | 0.8~3.0mm | ||
| Repeatability | ±0.01mm | ||
| Spindle Motor | Max 60,000 rpm | ||
| Door | Auto | ||
| Electrial Power | 3 phase AC 380V 50hz | ||
| Pneumatic | 0.5 MPa | ||
| Router Size(mm) | 1300*1100*1500mm | 1300*1350*1500mm | 1500*1350*1500mm |
| Weight | 800KG | 850KG | 900KG |
| Dust Collector Model | VF-30N | ||
| Type | Off- Line | ||
| Software version | Basic / Professional/ Customized | ||
| Cutting function | Linear, Circular, U-curve, Arc, L-curve | ||
| Visual system | Visual automatic positioning system | ||
| Cutting accuracy | ± 0.01mm | ||
| X, Y, Z axis drive mode | AC Servo motor | ||
| X, Y axis cutting speed | 0-100 mm/s | ||
| Operation and data | PC Systerm | ||
| Operation interface | Windows 7 | ||
| Voltage | 220 V 50HZ 1ψ | ||
| Power | 1500W | ||
| Dust Collector Voltage | 380V 50HZ 3ψ | ||
| Dust Collector Power | 2200w | ||
| Dust collection method | Down dust- collector (standard) or UP dust-collector (option) | ||
