Feature

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10.Printing speed display, can be adjusted.


Specification

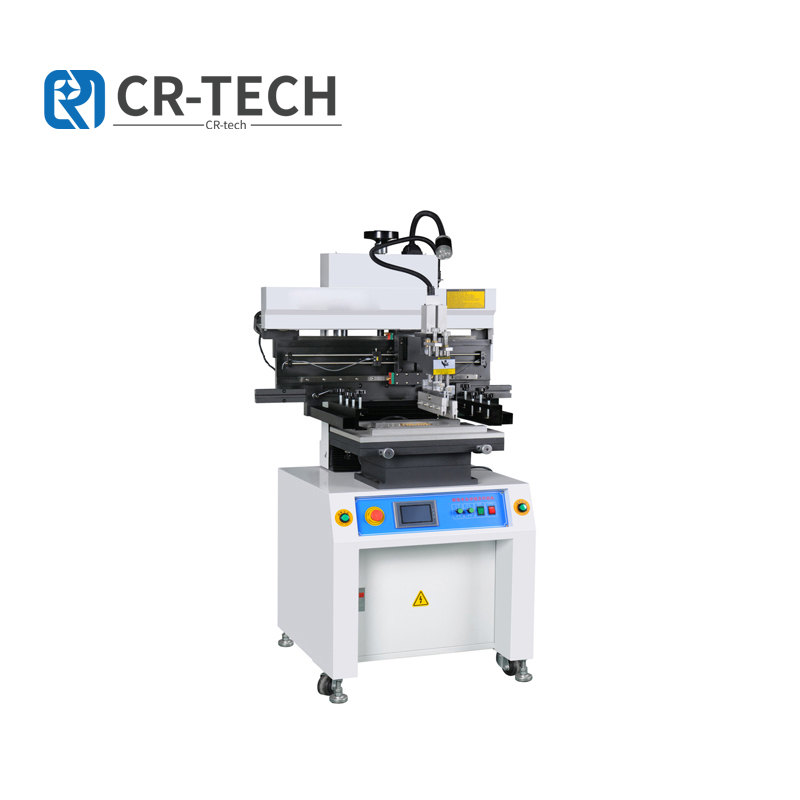

Model	CR-TECH S400
Dimensions	850×720×1650mm
Platform size	350×400mm
PCB size	320*400mm
Template size	550×680mm
Printing speed	0-8000mm/min
PCB thickness	0.2-2.0mm
PCB fine tuning range	Front/side±10mm
Power supply	1PAC220V 50/60HZ
Platform height	850±20mm
Repeating precision	±0.02mm
Printing Accuracy	±0.02mm
Positioning mode	Outside/Reference hole
Weight	Approx.300Kg
