Features:

1. Up and bottom both with 4 heating zones.

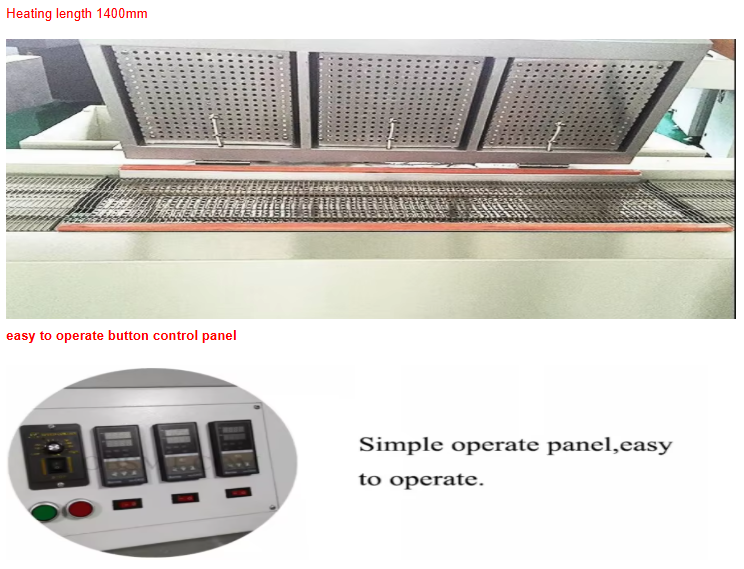

2. Length of heating zones is 1400mm.

Image:

Specification:

Model	CR-tech 400
Heating System	Number of heating zones	UP 4/BOTTOM4
	Length of heating zones	1400MM
	Heating mode	Up:hot air; bottom: IR

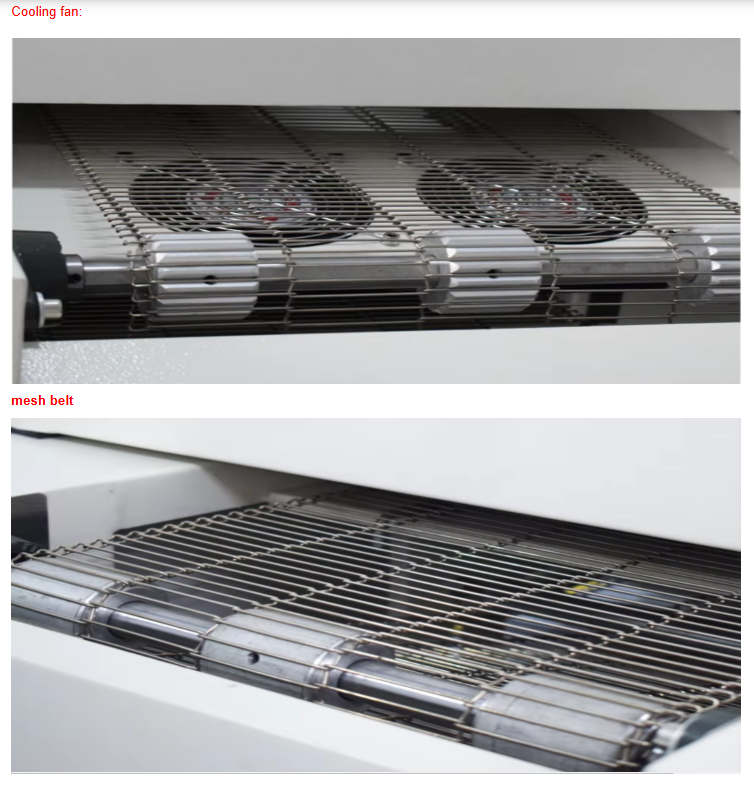

	Cooling Mode	Force air
Conveyor System	Max. Width of PCB	400mm
	Mesh belt width	400mm
	Transmission Direction	L→R(or R→L)
	Transmission Net Height	880±20mm
	Transmission type	Mesh
	Conveyor speed	0-1000mm/min
	Fixed rail side	Front rail fixed(option:rear rail fixed)
Control system	Power supply	5 line 3 phase 380V 50/60Hz
	Total power	10kw
	Starting power	10kw
	Normal power consumption	4KW
	Warming time	About 20 mins
	Temp. setting range	Room temperature-300℃
	Temp. control method	PID close loop control & SSR driving
	Temp. control precision	±1℃
	Temp. deviation on PCB	±2℃
	Data storage	Process Data and status storage (80 GB)(machine with PC)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temp. (extra-high/extra-low temp.)
	Board dropped alarm	Tower light:yellow-warming, Green-normal, Red-abnormal
General	Dimension(L*W*H)	2500×700×1320mm
	Weight	350KG
	Color	Computer gray
