Offline AOI is an optical detector that cannot be placed on the SMT assembly line and used together with the SMT assembly line, but can be placed in other locations to inspect the PCB boards on the SMT assembly line.
Machine dimension: 1100mm*900mm*1350mm
PCB dimension: 40 * 40 mm ~ 450 * 330 mm (larger sizes can be customized according to customer requirements)
PCB weight: Max：3KG
Power: AC220V，50/60Hz，1.2KW
Feature:
Product Detail offline AOI CR-A500:
●5 million pix full-color high speed digital camera (16/20 million pix optional), ensure high efficiency, high quality and high stability of image shooting, restore the real and natural image effect.
●Windows 7 x64 operation system，high data processing speed.
●GPU independent hardware processing images, while CPU processing non-image computing，so as to balance the efficiency of computer system.
●Thousands of sales, advanced and upgraded configuration and continuous technological innovation based on 6 series AOI products, high stability and efficiency.
●Optional telecentric lens with high resolution, unique parallel light design, PCBA tilted or tall components can be distinctly displayed.
●Intelligent and fast programming，intelligent algorithm, no need of manual intervention, easy to learn, high detection rate, low error rate.
●Flexible and mobile maintenance station and SPC checking terminal.
Mobile devices under wireless network, working station can be set up flexibly on workshop in one to many mode: the detection data of multiple online machines can be checked through one maintenance workstation, the defect details are clearly reported. SQL data system are well-defined, SPC report with pie chat and histogram, very convenient for customer process analysis and quality improvement.
●Convenient and practical offline programming software OLP. PCB genuine image can be taken in real time and stored in full memory, ensure high efficient programming under circumstances of either online or offline.

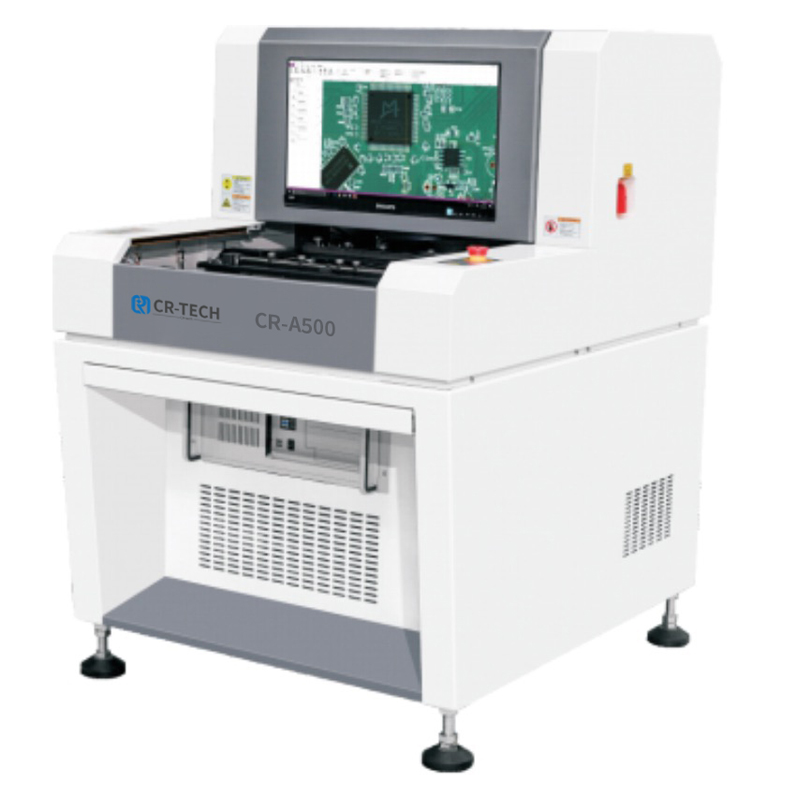

Image:
Specification:
Optical system
Optical camera
Resolution (FOV)
Optical lens
Light source system
Hardware Configuration
Operating system
Computer Configuration
Machine power supply
Machine dimension
Weight
Optional configuration
Check PCB specifications
Size
Thickness
Board weight
Clear height
Minimum test element
5 million high-speed intelligent digital industrial camera
Standard 15μm/Pixel (corresponding FOV: 38mm*30mm) 10/15/20μm/Pixel (optional)
5M pixel level telecentric lens, depth of field: 8mm-10mm
Highly bright RGB coaxial annular multi-angle LED light source
Windows 10 Pro
i5 CPU, 8G GPU graphics card, 16G memory, 120G solid state drive, 1TB mechanical hard drive
AC 220 volts ±10%, frequency 50/60Hz, rated power 1.2KW
1100mm*900mm*1350mm (L×W×H) Height including feet
450KG
Offline programming software, external barcode gun MES traceability system interface open
40 × 40 mm ~ 450 × 330 mm (larger sizes can be customized according to customer requirements)
0.3mm～6mm
≤3KG
Upper clear height ≤ 35mm, lower clear height ≤ 70mm (special requirements can be customized)
0201 components, 0.3mm pitch and above IC (optional can reach 01005 components)
