Feature

1:Flexible and diverse soldering methods, can be welded at different angles, while supporting spot welding and drag welding, all process parameters can be set by users to adapt to a variety of difficult operations and micro-soldering process.
2:Simple programming mode, can directly input the welding spot coordinates, can teach the welding spot coordinate position, simple operation of the teaching box, can guide the end of the movement to reach the welding spot position.
3:German Weile heating core, heating and cooling quickly, the room temperature to the set temperature of 500 ℃ only takes 25 seconds, the temperature error is ± 2 ℃. The temperature compensation is fast, uniform and stable; Rapid temperature rise, rapid temperature compensation and high heat conduction efficiency.
4:German Weile temperature control system can keep the temperature set by the soldering iron head stable, and will not need to wait for the soldering iron head to return to temperature because the heat is absorbed by the parts or PC board, so that the poor welding quality will not be caused by this phenomenon during automatic operation.
5:Multi-axis linkage manipulators, all driven by Japanese Shinano motors and advanced motion control algorithms, effectively improve the positioning accuracy and repeatability of the end of motion (soldering iron head). The accuracy of ± 0.022 mm ensures the accuracy of welding position in the production process.


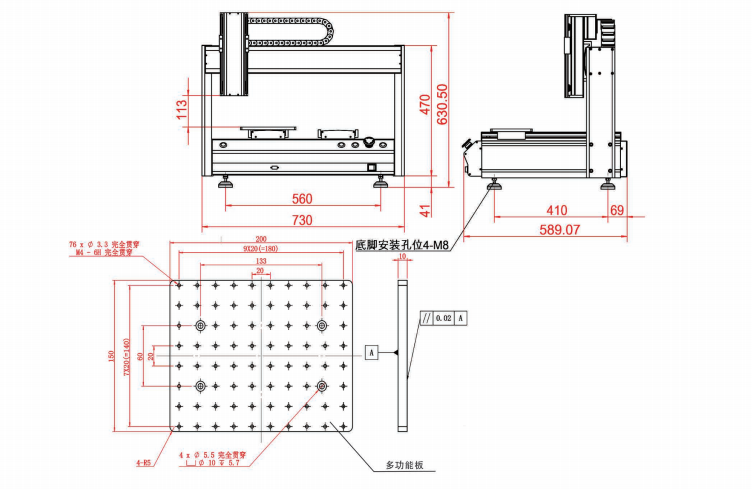

Specification

Model	SL-HX5331S Double Platforms Automatic Soldering Machine
Temperature control system	Sanle
Heating core	Willard
Temperature adjustment range	0-500℃
Temperature error	±2℃
Soldering range X/Y/Z (mm)	500/300/300/100/360°
Maximum load	15kg
Moving speed (mm/sec)	0—800
Decomposition ability	0.01 mm/Axis
Repeatability	± 0.02 mm/ Axis
Program record mode	More than 100 groups
Display mode	LCD teaching box
Motor system	Leisai motor
Guide rail	Shangyin, Taiwan
Transmission mode	Italian Yilatai belt
Photoelectric switch	Omron Japan
Motion tween function	3 axis
Input power	Full voltage AC110V ~ 220V
External control interface	RS232
