Handling Equipment
SMT line Conveyor Machine
ConveyorPCBs between two equipments ordevices.Also good for buffer,inspection,test on PCBsor manual inserting components to PCBs.
PRODUCT DETAIL
Feature:
a)PLCControl System
b)Made of steelframe,stable and reliable
c)Easy to adjust
d)Transmission stable,no card version.

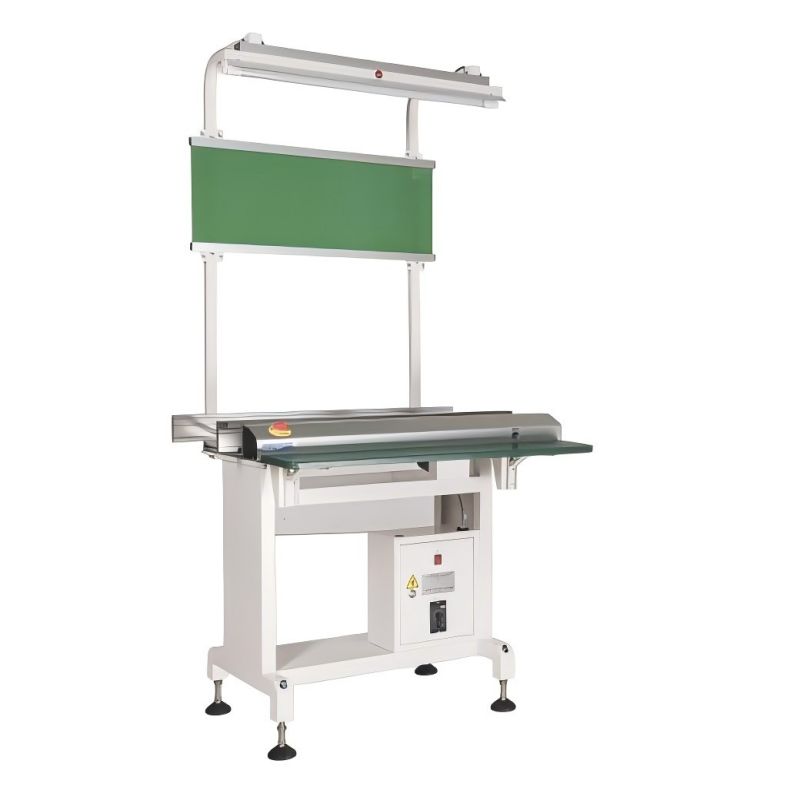

Image:
Specification:
| Model | 型号 | CR-1000-1M | CR-1000-2M |
| Overall Dimension | 外形尺寸 | (L)1000*(W)675*(H)2000mm(含灯架) | (L)1000*(W)675*(H)2000mm(含灯架) |
| Control System | 控制方式 | PLC | PLC |
| PCB Conveyor Direction | PCB传输方向 | 左至右 | 左至右 |
| Track width | 传送宽度 | Min50-Max500mm | Min50-Max500mm |
| Conveyor speed | 传送速度 | 1.5~8M/min可调 | 1.5~8M/min可调 |
| PCB size(L*W) | PCB尺寸(长X宽) | Min80*50-Max920*500mm | Min80*50-Max420*500mm |
| Height | 传输高度 | 920±30mm | 920±30mm |
| Fluorescent | 日光灯 | 选配(L) | 选配(L) |
| Placing table | 置物台架 | 选配(S) | 选配(S) |
| Adjustable wide way | 调宽方式 | 手动调宽、自动调宽(A) | 手动调宽、自动调宽(A) |
| Dust cover | 防尘罩 | 选配(C) | 选配(C) |
| Work bench | 工作台板 | 选配(T) | 选配(T) |
| Cooling fan | 风扇罩 | 选配(F) | 选配(F) |
| Band detection | 带检测 | 选配(R) | 选配(R) |
