Brand: CR-TECH
Dimensions: 2000×720×1650mm
Platform size: 550×1650mm
PCB size: 320×1500mm
Printing speed: 0-8000mm/min
PCB thickness: 0.2-2.0mm
PCB fine tuning range: Front/side±10mm
Feature
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Specification

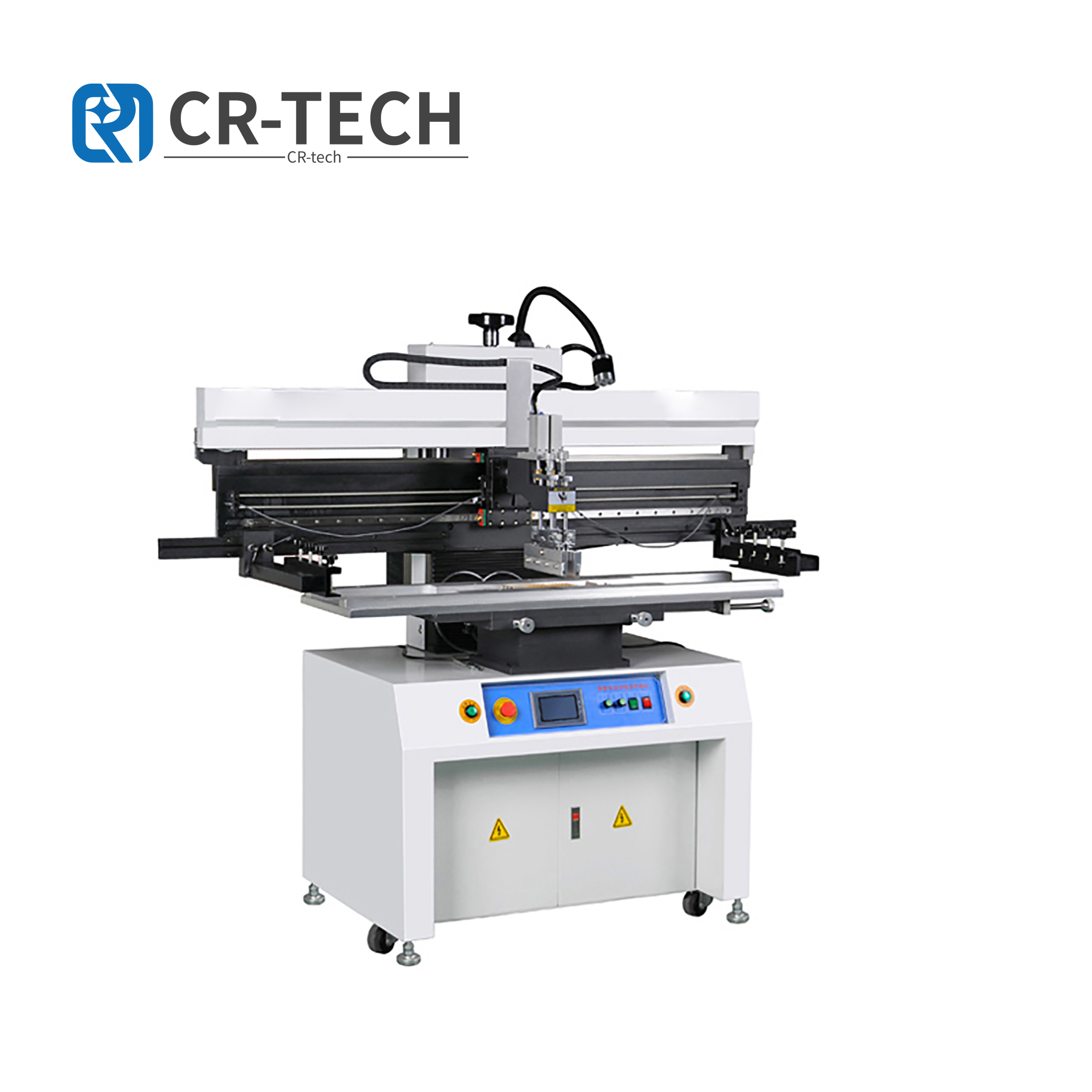

CR-TECH S1200
2000×720×1650mm
550×1650mm
320×1500mm
0-8000mm/min
0.2-2.0mm
Front/side±10mm
1PAC220V 50/60HZ
850±20mm
±0.01mm
±0.02mm
Outside/Reference hole
Approx.500Kg
Model
Dimensions
Platform size
PCB size
Printing speed
PCB thickness
PCB fine tuning range
Power supply
Platform height
Repeating precision
Printing Accuracy
Positioning mode
Weight
