Feature:

Key Advantages:

1. Single-unit dual-track design with adjustable track width, enabling parallel movement of mobile phone long edges to cover mainstream 5-7 inch smartphone sizes;

2.IPC motion control system with visual programming and unlimited data storage;

3. Supports CAD point coordinate import;

4. CCD-assisted teaching screw coordinates eliminate manual visual positioning errors;

5.CCD visual positioning calibration coordinates with intelligent multi-group Mark point combination correction improve photo-through rate;

6. Graphical display of locking points and results, automatically marking OK/NG screw positions for quick identification;

7. Configurable smart electric batch with individual torque/speed settings for any point, outputting torque curves and values;

8. Screw float height displacement sensor automatically detects and corrects misaligned screws;

9. Pressure detection sensor monitors batch head pressure during locking;

10. Online torque inspection with stored results for query;

11. SMEMA-standard communication interface for integration with other track-based equipment;

12. Multi-user multi-level permission management allowing administrators to create accounts and assign software permissions;

13. Production statistics and traceability features with automatic saving and export of screw locking data to *.xls files; 14. MES connectivity for automatic production data upload to manufacturing systems.

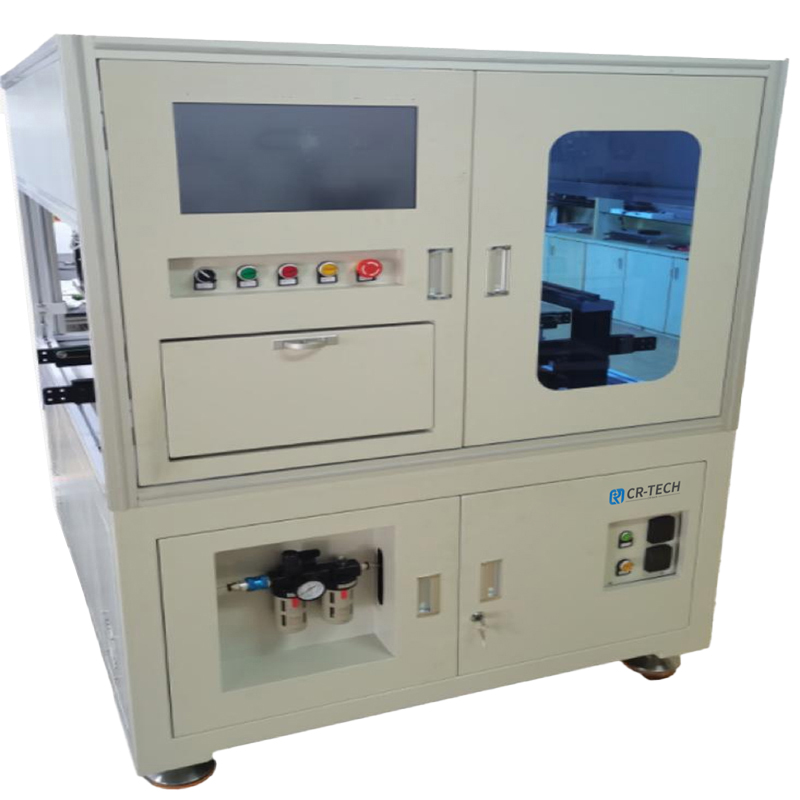

Image:

Specification:

型号Model	CR-Tech 570A
机器尺寸Outline size	1250mm*900mm*1500mm (L*W*H)
有效行程Effective travel	580mm*400mm*100mm(X*Y*Z)
运动轴Motion axis	4轴 4-Axis
定位精度Position accuracy	±0.02mm
控制系统Control system	PLC+触摸屏控制PLC+ touch screen control
供螺丝方式Feeding model	吸取式 Sunction method
锁付效率Locked efficiency	＜1.2s/Piece
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.7MPa
程序储存量Memory size	100group
通讯口COM	USB
总功率Power	0.6KW
