Transmission height: 910 mm ± 30 mm
Substrate size (L*W): Mini:70*50mm/Max:530*460mm
Base plate thickness: 0.6-0.4mm
Feature:
1. Using programmable controller
2. Ergonomic design
3. Smooth and parallel width adjustment, safe, dust-proof design
4. European standard aluminum profile structure, thick and heavy design, not easy to move
5. Detection mode, automatic mode
6. Accurate position of induction stop
7. Special track L-shaped design, laser engraved stainless steel side guide, with excellent quality and durability
8. The bracket adopts aluminum profile open mold design, cleverly combined to make the appearance of the device more perfect
9. Available for high-precision circuit board transmission
10. Standard SMEMA signal interface
11. Standard emergency stop button

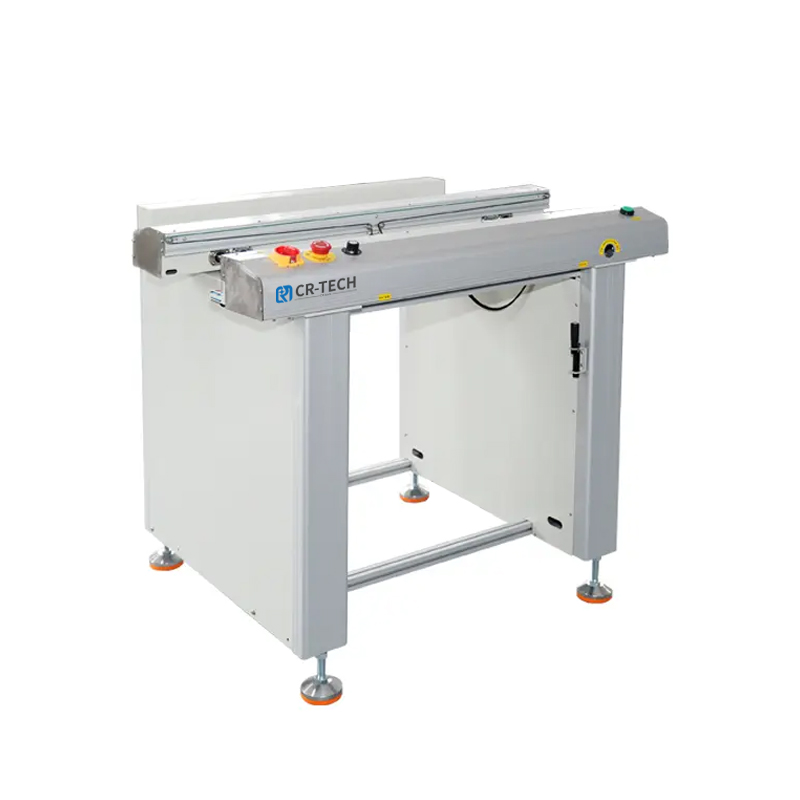

Image:
Specification:
The conveyor is used as the basis for connecting elements or workstations between two machines in the production line.
Precise track design, electrostatic powder coating on the surface, and the perfect combination of national standard aluminum profile frame and sheet metal ensure process stability and excellent durability
Model
CR-HC350
Machine configuration
Transmission height
910 mm ± 30 mm
Conveyor belt
3mm flat belt
Communication interface
SMEMA
Transmission direction
L to R/R to L
Conveying speed
0.5 ~ 15m / min (adjustable)
Fixed guide rail
front of the machine
Transmission structure
1-stage
Width adjustment mode
manual adjustment
Substrate size
Substrate size (L*W)
Mini:70*50mm/Max:530*460mm
Base plate thickness
0.6-0.4mm
Base plate element height
±34mm
Base plate weight
≤1.5kg
Installation requirements
Power supply
220V 50/60Hz ±10%
Power supply system
L1+N+PE
Power
0.06KW
Power plug type
International standard (optional)
Machine description
Machine dimension (L*W*H)
1000*864*920mm
Machine weight
≤ 80kg
Fixed point to front size (X)
179mm
Noise level
< 75 dB
Optional items
A-single machine automatic width adjustment, B - Fuji Nexim, Panasonic ilnb system docking, C-common material dust cover, D-anti static material dust cover, E-ce safety interlock, F-lighting, G-custom length, H-cooling fan, I-two-stage, J-other
Product Description
Monorail conveyor system with a standard total length of 1000 mm.
