The 3 Main Types of Reflow Ovens and How to Choose the Right One for Your SMT Line

Meta Description: Not all reflow ovens are the same. From air to nitrogen, and vapor phase to convection, we break down the key types of reflow soldering equipment and how to select the perfect match for your production volume and budget.

As an SMT manufacturer, the reflow oven is the heart of your assembly line. Choose the wrong one, and you risk tombstoning, cold joints, or high energy bills. Choose the right one, and you unlock flawless soldering for even the most complex PCBs.

So, what are the main types of reflow soldering equipment, and how do you decide? Let’s break it down.

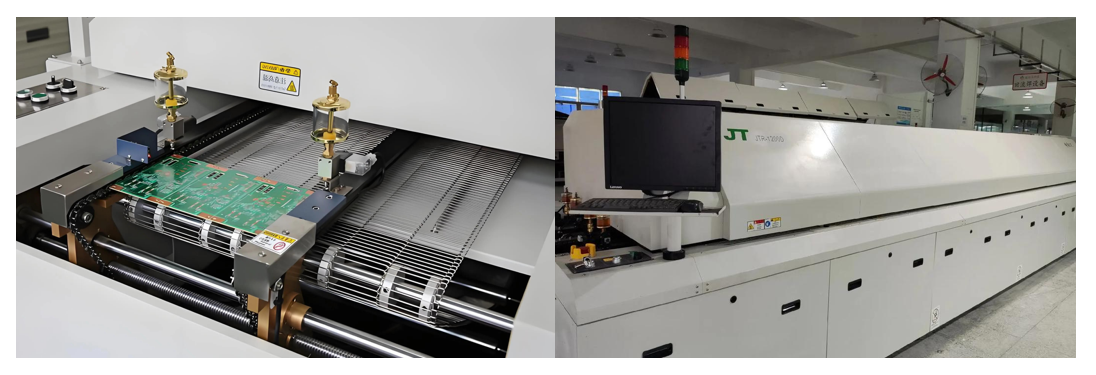

Type 1: Forced Air Convection Reflow Ovens (The Industry Standard)

This is the most common type found in modern SMT factories. Instead of relying on radiant heat, forced air convection ovens use hot air jets to transfer heat evenly across the PCB.

• How it works: High-temperature air is circulated through multiple zones (typically 8-12) allowing precise temperature profiling.

• Best for: High-volume production, lead-free soldering, and complex double-sided boards.

• Pros: Excellent thermal uniformity, lower energy use than IR ovens, and great for large thermal mass components.

Type 2: Vapor Phase Reflow Ovens (The "Zero-Void" Solution)

Often overlooked, vapor phase is making a comeback for high-reliability applications. It uses a heat transfer fluid (like Galden) that boils at a specific temperature.

• How it works: The PCB is immersed in saturated inert vapor. The vapor condenses on the board, releasing latent heat.

• Best for: High-reliability sectors (Automotive, Medical, Aerospace) and heavy copper boards.

• Pros: Virtually impossible to overheat (max temp is the boiling point of the fluid) and produces the lowest voiding rates.

Type 3: Infrared (IR) Reflow Ovens (The Legacy Option)

These use IR panels to radiate heat directly onto the assembly. While cheaper upfront, they have largely been replaced by convection.

• How it works: Quartz or ceramic IR emitters heat the surface of the board.

• Pros: Low initial cost, fast ramp-up time.

• Cons: Poor for uneven surfaces (shadowing effect) and high risk of burning dark components or PCBs.

Bonus: Vacuum Reflow Ovens
A specialized subset of convection or vapor phase that adds a vacuum chamber to eliminate voids (bubbles trapped in solder). Essential for high-power LED or IGBT modules.

How to Choose the Right Reflow Oven for Your Factory

Now that you know the types, how do you pick? Do not just look at the price tag. Ask yourself these 3 questions:

1. What is your daily production volume?

• Low volume / Prototyping: A compact 6-zone forced convection oven is sufficient.

• High volume: You need a 10+ zone convection oven with dual rails to maximize throughput.

2. What components are you soldering?

• Standard SMDs: Forced air convection is your workhorse.

• Fine-pitch QFNs & Heavy Copper: Go with Vapor Phase. It ensures every pin hits the exact peak temperature without damaging the board.

• LEDs or large coils: Avoid IR. The dark bodies of LEDs absorb heat differently than the PCB, causing failure. Stick to convection.

3. Do you need nitrogen (N2)?
For most standard soldering, air is fine. However, if you are soldering sensitive pads (OSP) or need ultra-bright shiny joints for medical devices, select an oven that supports Nitrogen injection. This prevents oxidation.

Final Recommendation for Independent SMT Shops:

For 90% of SMT operations, a 10-zone Forced Air Convection oven with optional N2 capability is the safest, most profitable choice. It handles lead-free alloys easily, works with any component shape, and keeps energy costs reasonable.

If your niche is military or medical electronics where every solder joint must be perfect, upgrade to Vapor Phase. The reduced voiding rate pays for itself in customer trust.
